VAV Controller—Variable Air Volume (VAV) Controller 55
Note: The examples contained in this technical bulletin do not reflect all
of the possible questions and answers. These examples are
provided as a basic overview of wiring locations you might expect
to see.

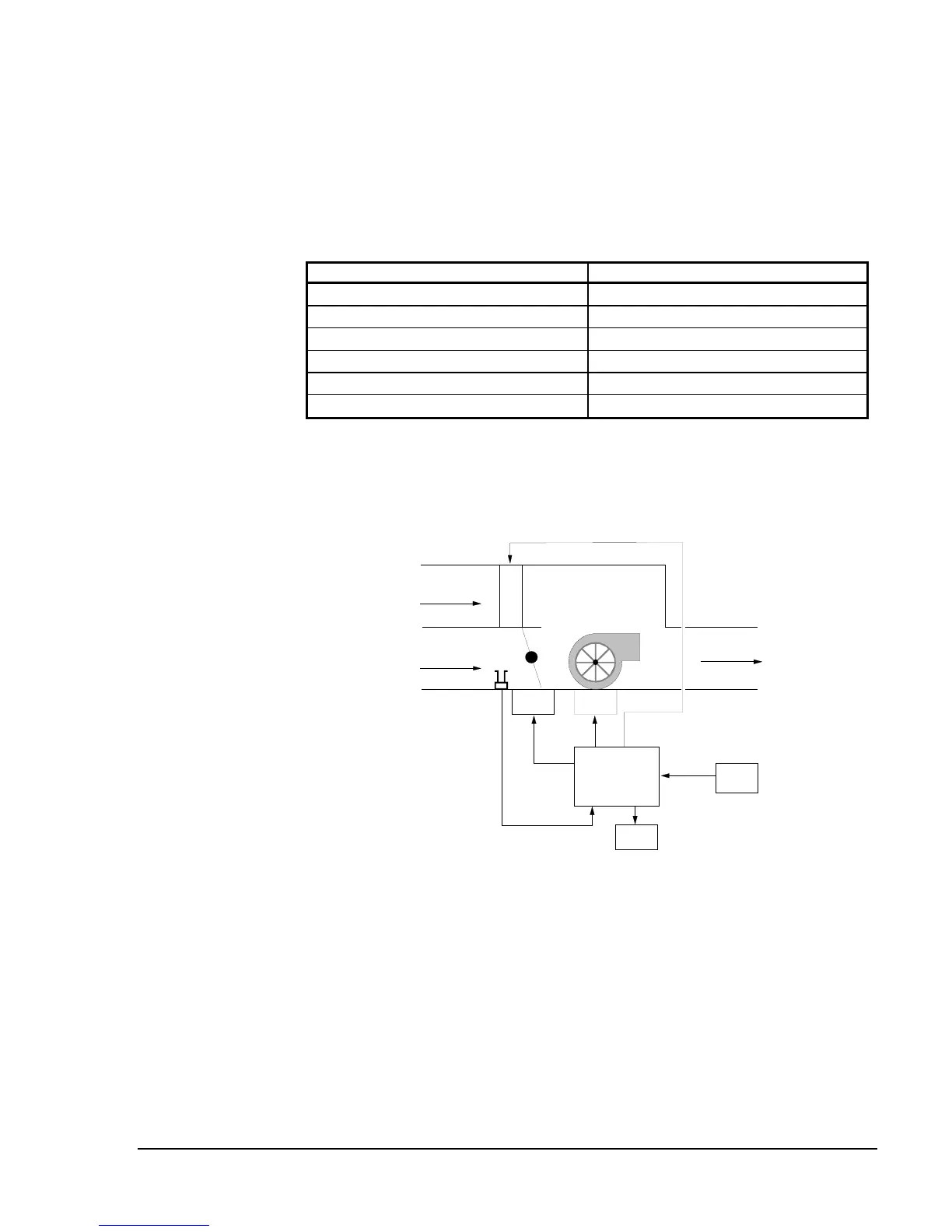

Table 18: Single Duct Wiring Example 1
Questions and Configuration Selections
HVAC PRO for Windows Questions Configuration Selections
Control Strategy
Pressure Independent
Fan Type
Series/On-Off
Exhaust Box Required
Not Available
Baseboard Heat Type
None
Box Heat Type
3-Stages
Lighting Integration
Yes
Note: The OEM box manufacturer typically supplies the fan relays and
electric heat relays.
vav1
C
1
TE
1
Plenum
Supply
Discharge
DPT1
DA1
H
T
G
R
R1
Figure 23: Single Duct Wiring Example 1
Mechanical Flow Diagram
To Next Page
