VAV Controller—Variable Air Volume (VAV) Controller 61
The following table illustrates the selections made through HVAC PRO for
Windows for this example.
Note: The examples contained in this technical bulletin do not reflect all
of the possible questions and answers. These examples are
provided as a basic overview of wiring locations you might expect
to see.
Table 24: Example 4--Pressure Independent with Parallel Fan
HVAC PRO for Windows Questions Configuration Selections
Control Strategy
Pressure Independent
Fan Type
Parallel Fan Temp Controlled
Exhaust Box Required
No
Baseboard Heat Type
Analog Output
Box Heat Type
Incremental
Lighting Integration
No
vav1
0
C
1
TE1
Plenum
Supply
Discharge
DPT1
DA1
H
T
G
R
B
A
S
E
B
D
VA2
VA1

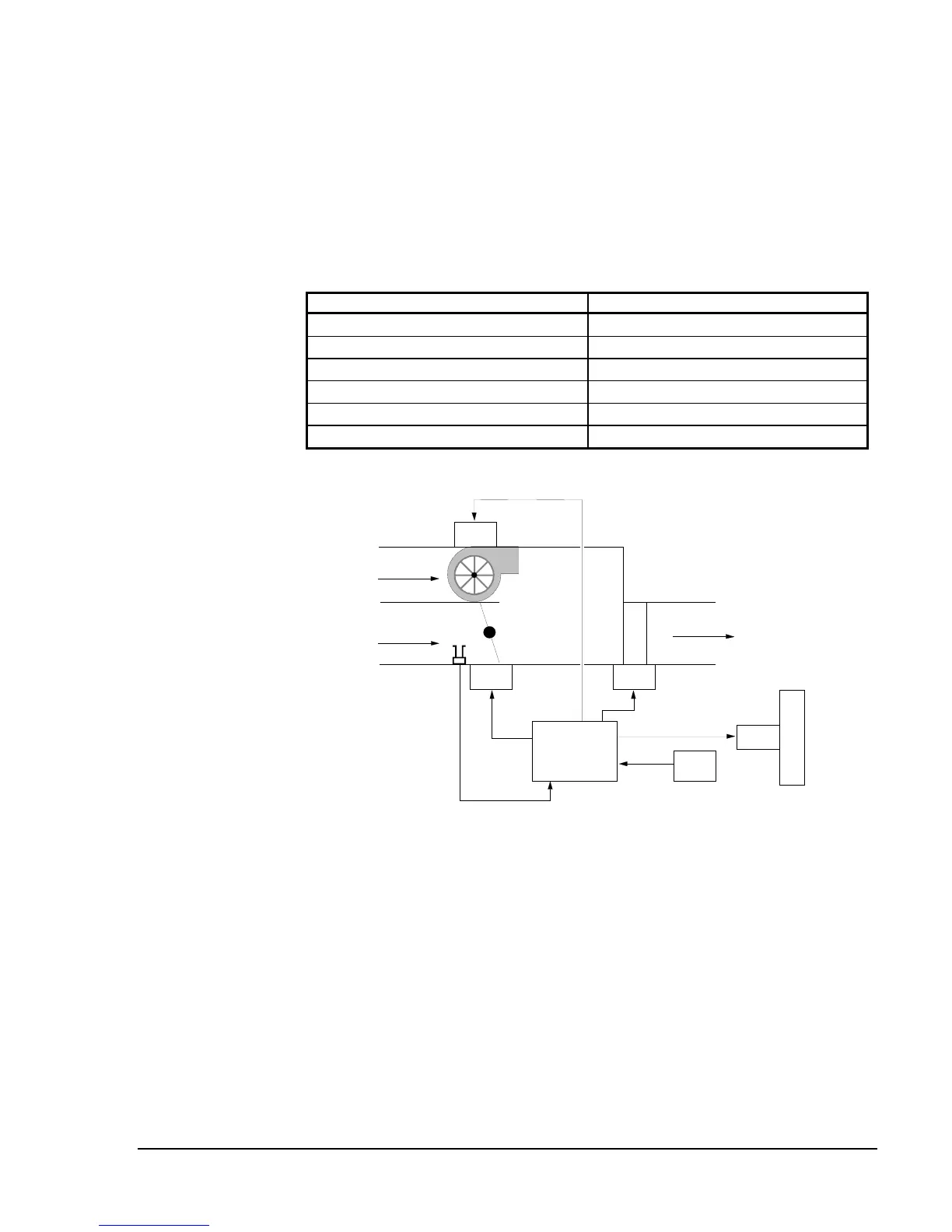

Figure 29: Mechanical System Flow Example 4
Pressure Independent w/Parallel Fan
