Johnson Controls METASYS VAV111 User Manual

62 VAV Controller—Variable Air Volume Controller
TE1
Zone
Sensor
BINARY INANALOG INPUTS
BINARY OUTPUTS
DSI
vavwe6a
DPT1
VAV111-1
VA2
Proportional
Valve Actuato
Baseboard
VA1
Incremental
Box Heat
Actuator
DA1
Box Damper
Actuator
Fan
Relay
OUT 1
COM 2
VDC 3

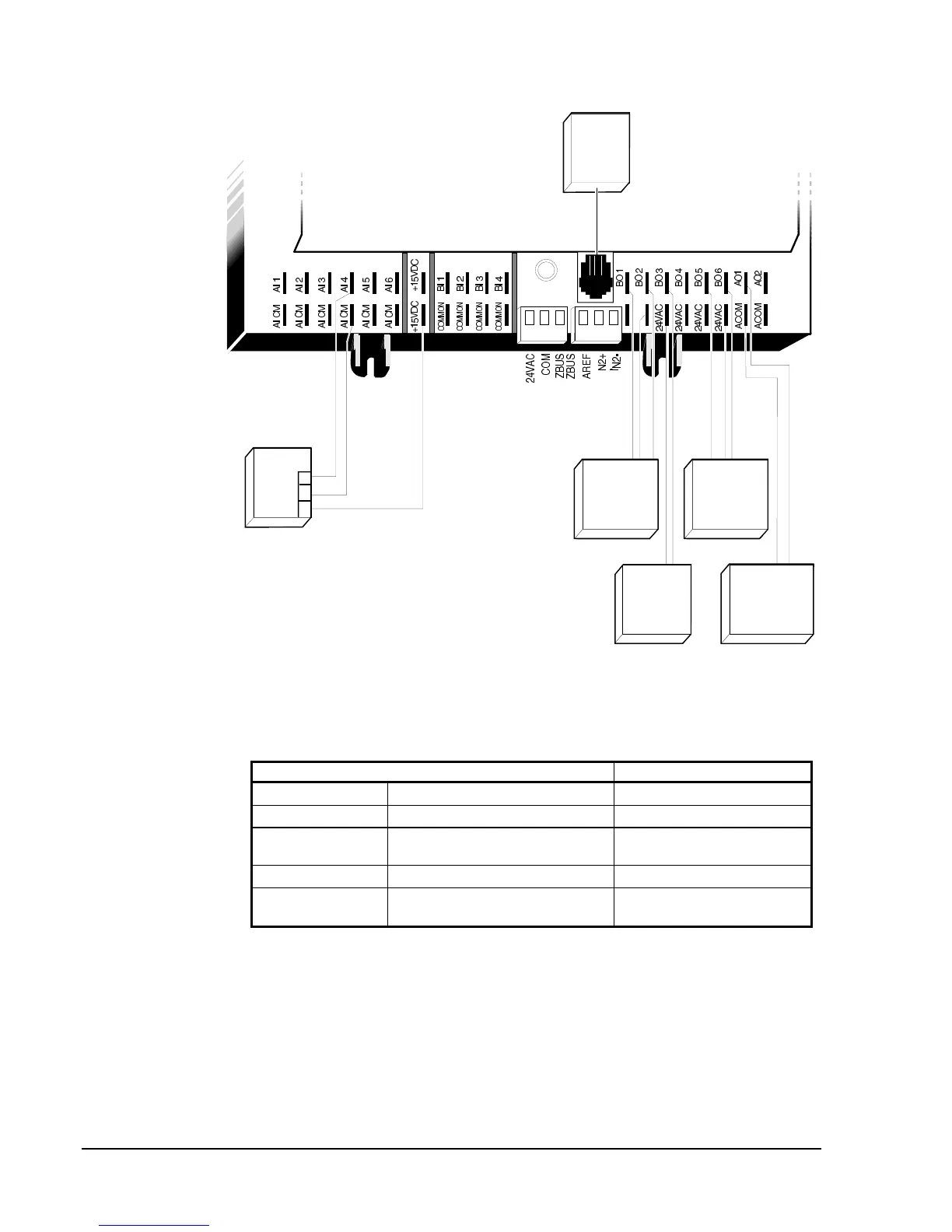

Figure 30: Single Duct Fan Powered Box Wiring Example 4
Table 25: Fan Powered Box Wiring Example 4 Bill of Materials
Component Description Part Number
C1
VAV w/6 BOs and 2 AOs AS-VAV111-1
TE1
Temperature Sensor TE-6400 Series
DPT-1/DA-1
Delta P Transducer/Damper
Actuator
ATP-2040
VA-1
Valve Actuator Box Heat VA-8020-1
VA-2
Electro-pneumatic Transducer
Baseboard Heat
EP-8000-2
Note: Box OEM manufacturers typically supply fan relays and electric
heat relays.
