68 VAV Controller—Variable Air Volume Controller
TE1
RM-T
RM-SP
BINARY INANALOG INPUTS
BINARY OUTPUTS
DSI
120VAC 24VAC
DPT1
Flow Sensor
DPT2
Flow Sensor
vavwe4a
DA1
Damper
Actuator
DA2
Damper
Actuator
OUT 1
COM 2
VDC 3
OUT 1
COM 2
VDC 3
Power
Transformer
120/24VAC

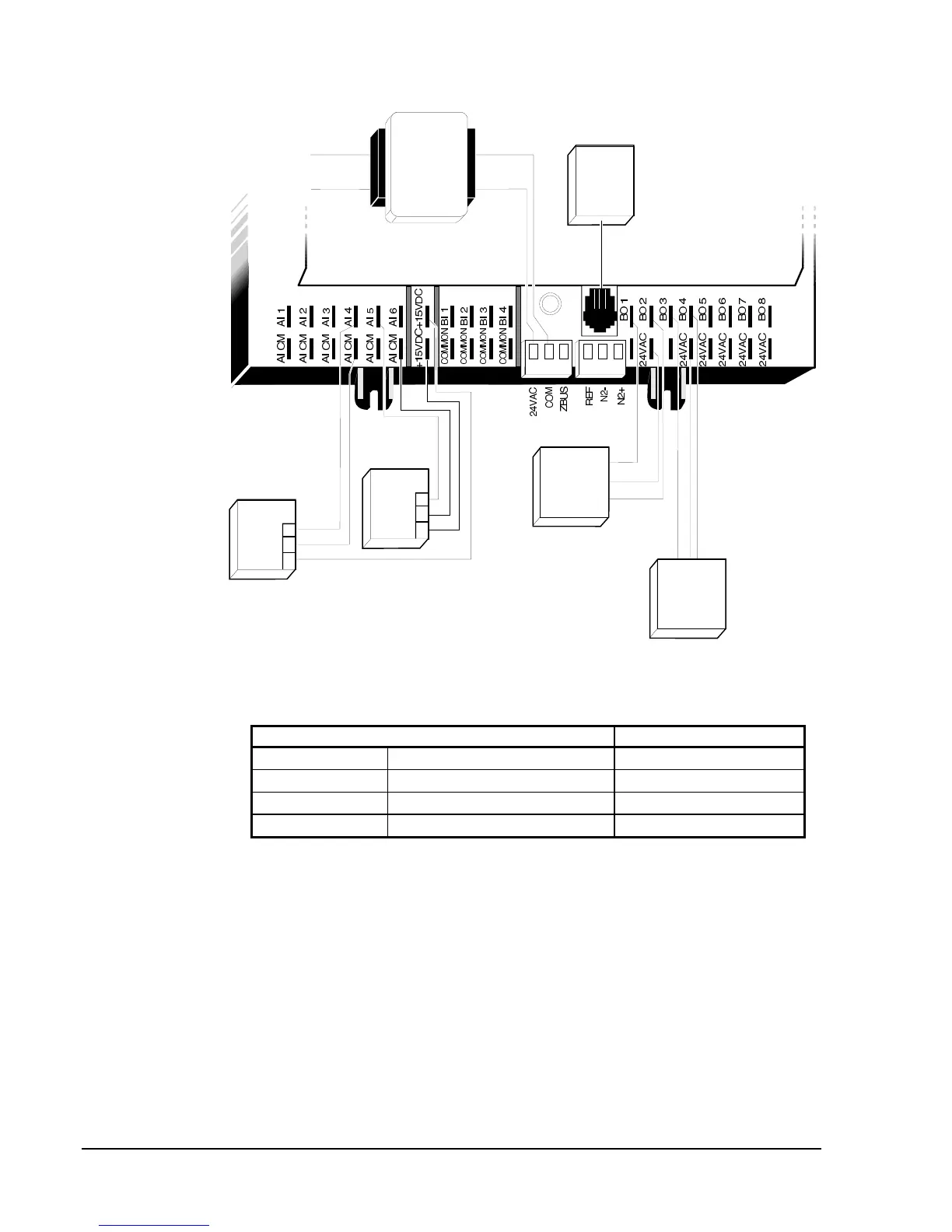

Figure 34: Dual Duct Wiring Example 1
Table 28: Dual Duct Wiring Example 1 Bill of Materials
Component Description Part Number
C1
Digital Controller AS-VAV110-1
TE1
Metastat TE-6400 Series
DA1 and DPT1
Cold Deck ATP-2040-nn
DA2 AND DPT2
Hot Deck ATP-2040-nn
