70 VAV Controller—Variable Air Volume Controller
BINARY INANALOG INPUTS
BINARY OUTPUTS
DSI
vavwe5a
DPT1
120VAC 24VAC
DPT2
Power
Transformer
120/24VAC
TE1
Room
Sensor
DA1
Damper
Actuator
DA2
Damper
Actuator
TE2
OUT 1
COM 2
VDC 3
OUT 1
COM 2
VDC 3
R1
Lighting
Relay
ON
COM
OFF
C

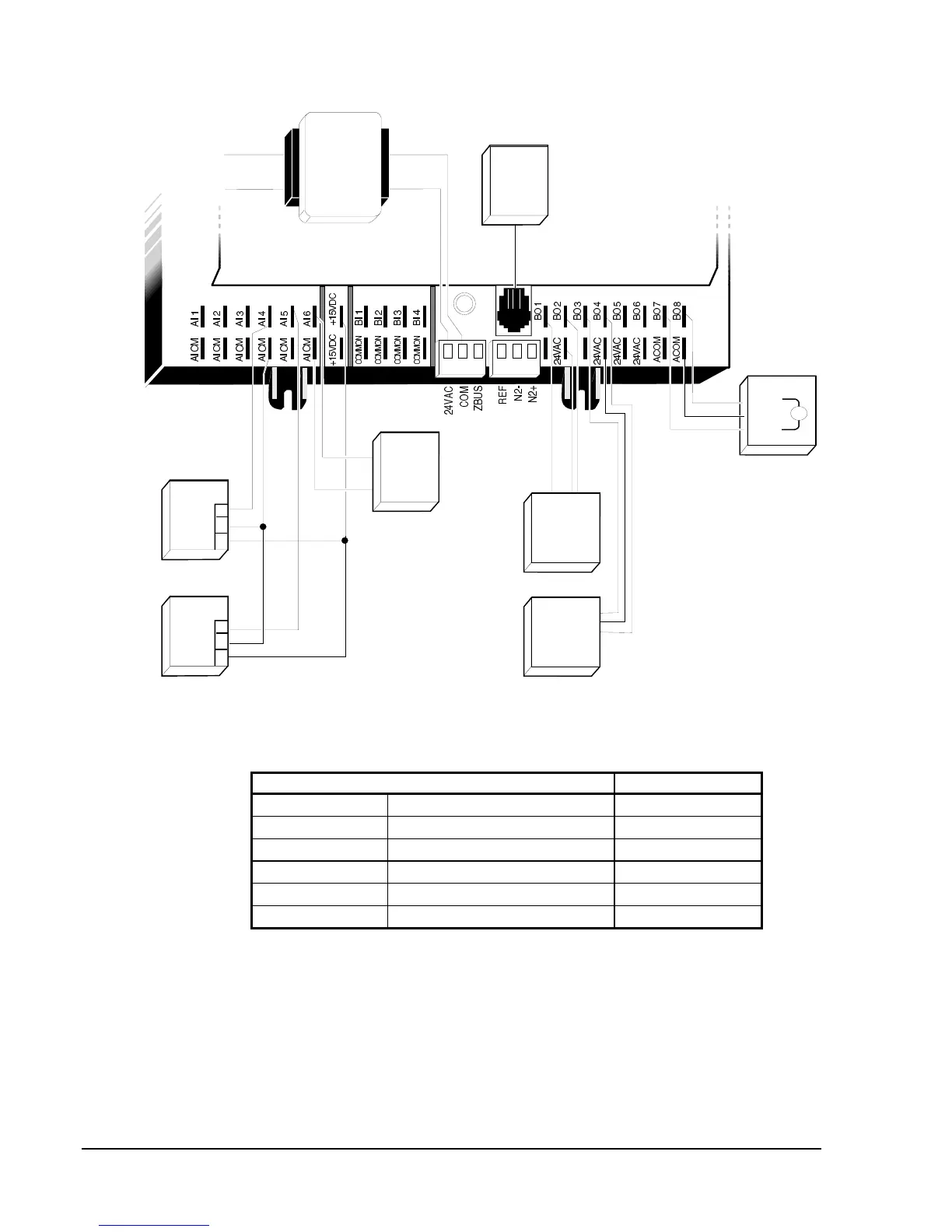

Figure 36: Dual Duct Wiring Example 2
Table 30: Dual Duct Wiring Example 2 Bill of Materials
Component Description Part Number
C1
Digital Controller AS-VAV110-1
TE1
Metastat TE-6400
TE2
Discharge Air TE-6000 Series
DPT1 and DA1
Cold Deck ATP-2040-nn
DPT2 and DA2
Hot Deck ATP-2040-nn
R1
Lighting Relay GE-RR7
