Mounting on a pole
1. Loosen the back-box lock screw.
2. Remove the chassis from the back-box.

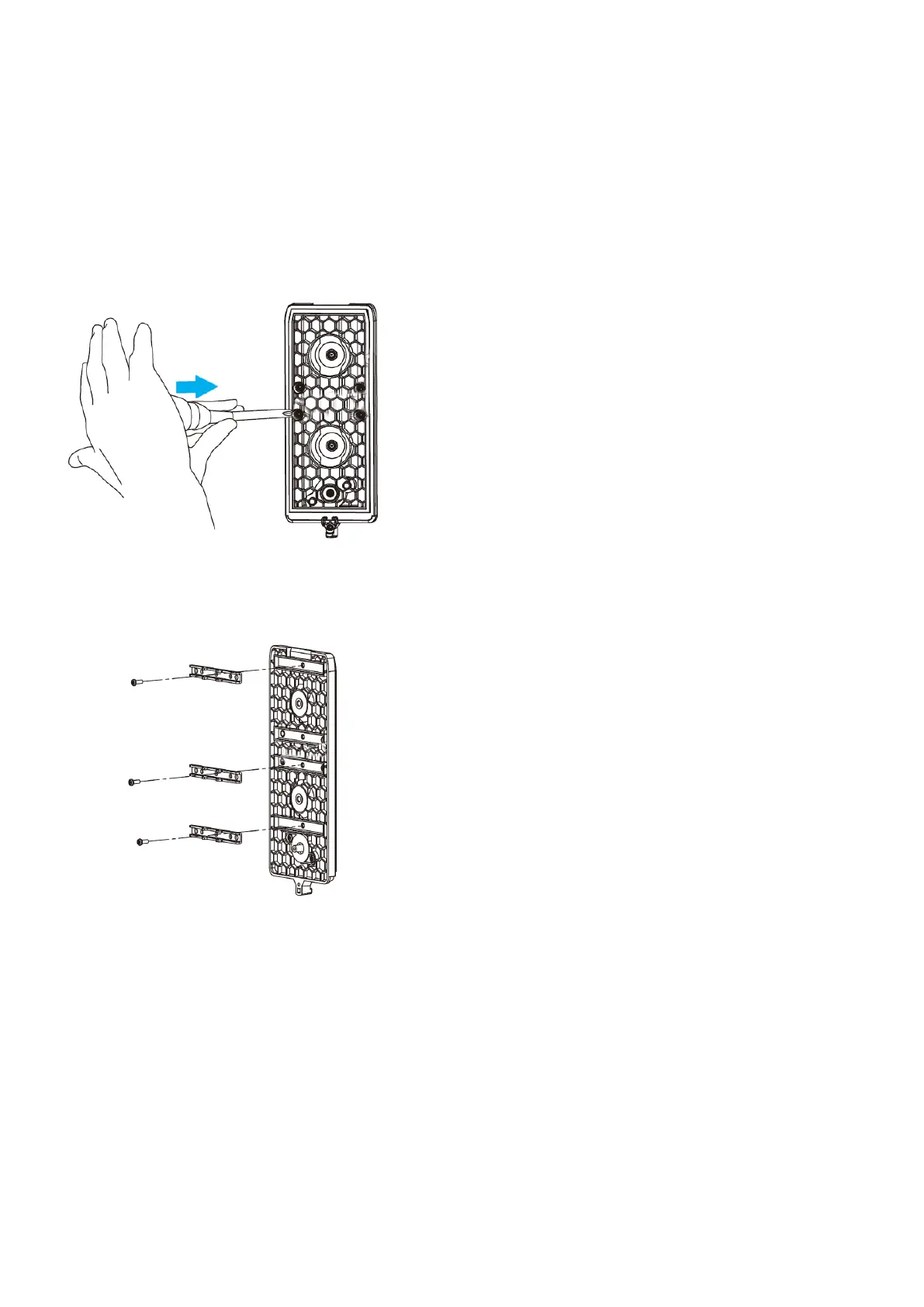

3. Using a screwdriver or similar tool, break the knockouts on the chassis.
4. Use the supplied M3 x 8 screws to attach three pole mounting brackets to the chassis.
5. Use the supplied M4x30 screws and U bracket to mount the back-box on the pole.
