18
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
DAMPER SCHEMATICS

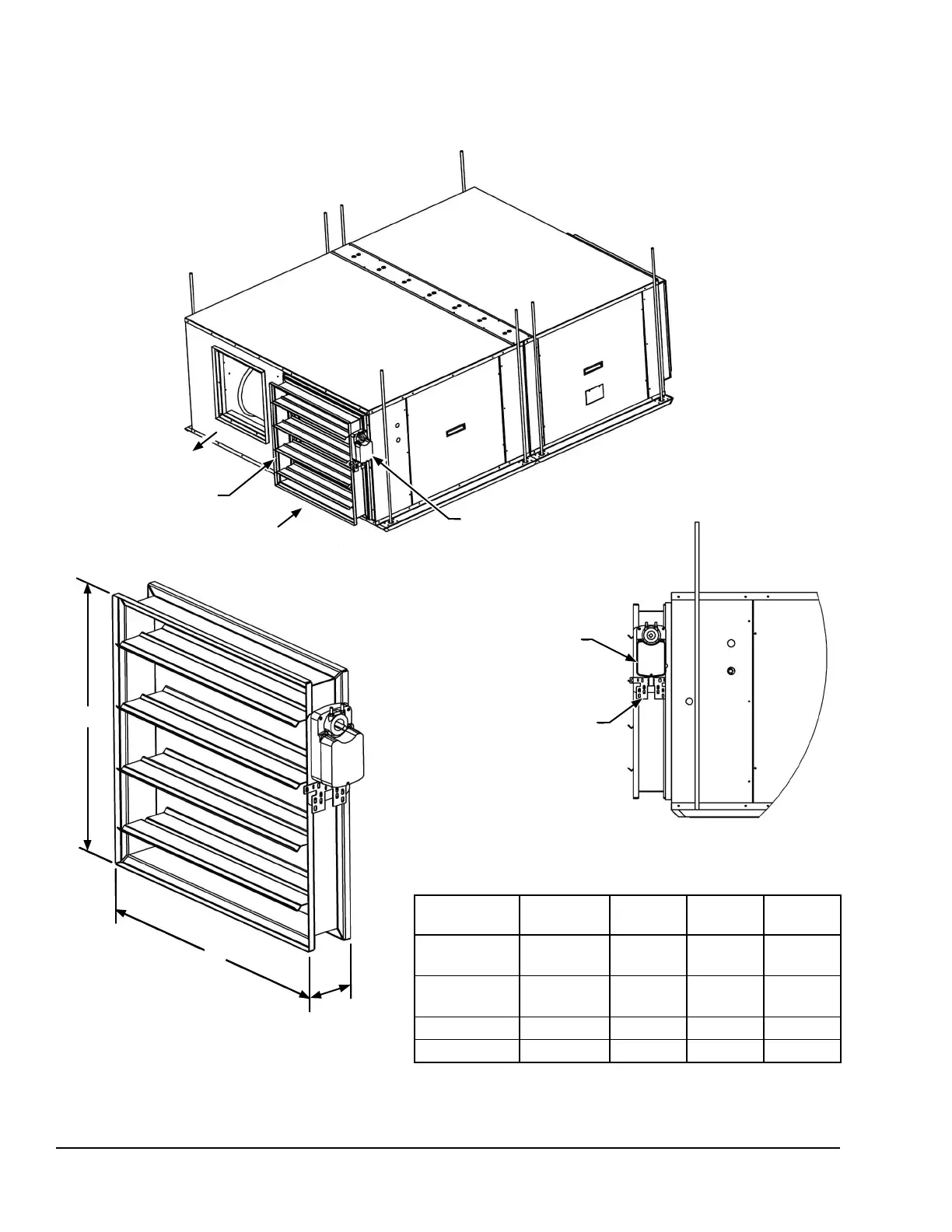

FIGURE 16 - DSH UNIT DAMPER ACTUATOR SCHEMATIC
Condenser
Discharge
Low Ambient
Damper
Condenser
Intake
Electric Damper
Actuator (M9108)
M9108
Anti-Rotation
Bracket
C
A
B
KIT #
UNIT
MODEL
A B C
LADK-036C-1
DSH024B/C
DSH036B/C
25.875 in. 5.0 in. 23.625 in.
LADK-060C-1
DSH048B/C
DSH060B/C
27.875 in. 5.0 in. 26.625 in.
LADK-100C-1 DSH096B/C 48.0 in. 5.0 in. 29.25 in.
LADK-120C-1 DSH120B/C 60.75 in. 5.0 in. 29.125 in.
LD26873
