19
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
2
KIT # UNIT MODEL A B C
VADK-060C-1 DSV060B/C 47.375 in. 5.0 in. 11.875 in.
VADK-120C-1 DSV096B/C & DSV120B/C 66.375 in. 5.0 in. 14.125 in.
VADK-144C-1 DSV144B/C & DSV180B 77.5 in. 5.0 in. 14.125 in.
VADK-180C-1 DSV180C 81.5 in. 5.0 in. 12.125 in.
VADK-240C-1 DSV240B/C 85.5 in. 5.0 in. 12.875 in.
VADK-300C-1 DSV300B/C 103.5 in. 5.0 in. 12.875 in.
Return Air
Filters
Low Ambient
Damper
Condenser
Intake
Anti-Rotation
Bracket
C
A
B
Supply
Air
Return
Air
Condenser
Discharge
Electric
Damper Motor
LD26874

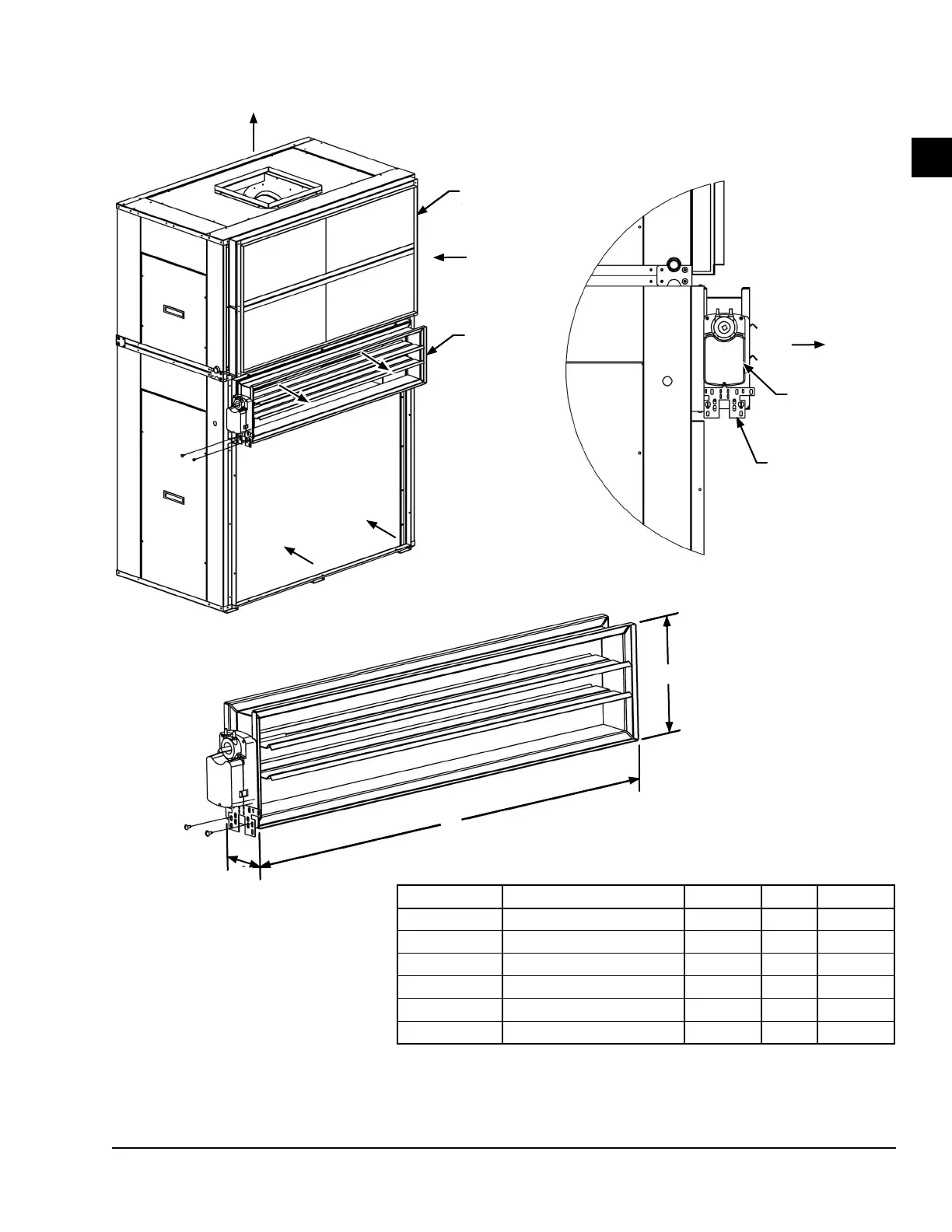

FIGURE 17 - DSV UNIT DAMPER ACTUATOR SCHEMATIC
