RB SERIES ENGINEERING GUIDE

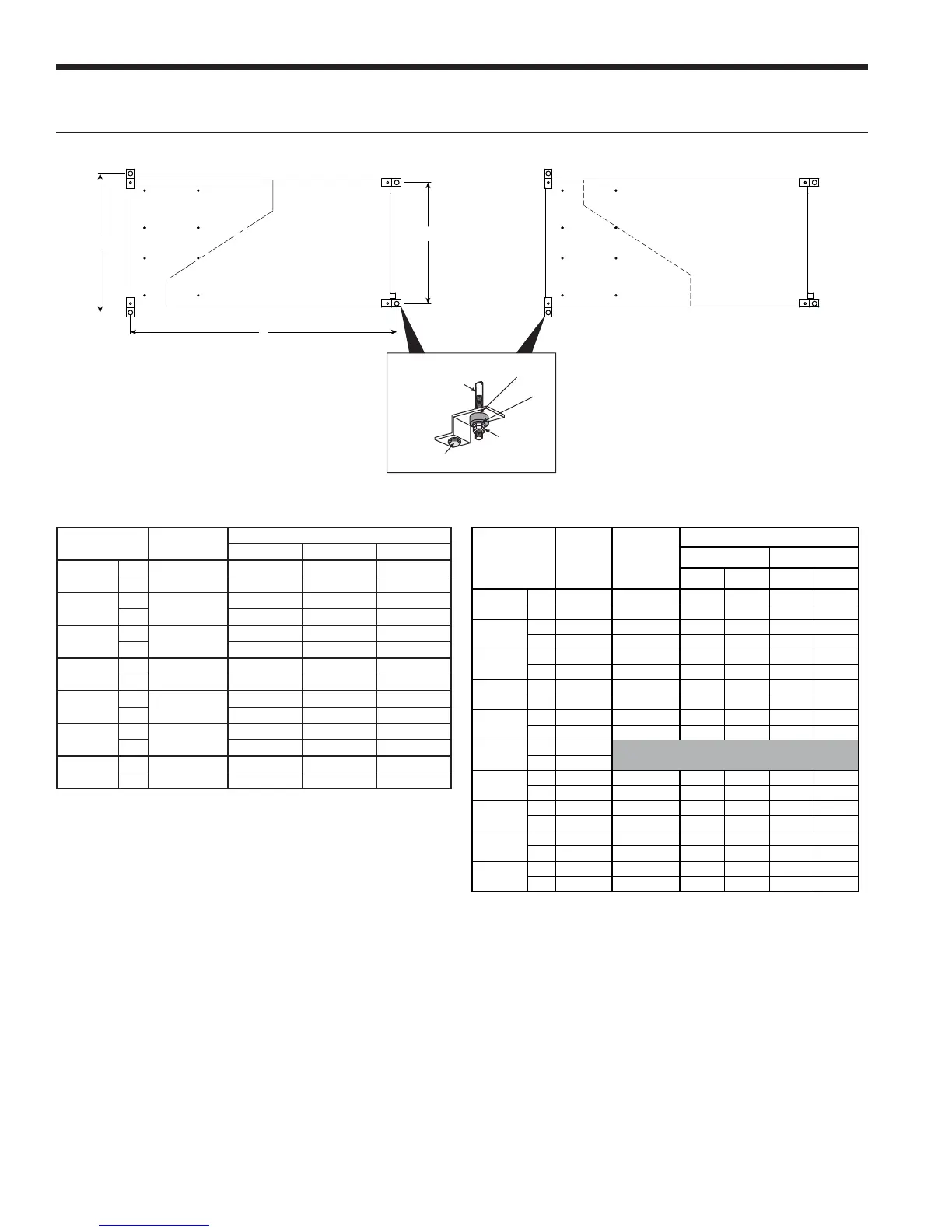

Hanger Bracket Locations
B
C
A
E
D
G
F
Left
D
E
F
G
Right
Vibration Isolator
Washer
Hex Nuts
(not supplied)
Bolt and
Lockwasher
3/8”
Threaded Rod
(not supplied)
Compressor
Section
Compressor
Section
Air Handler
Section
Air Handler
Section
Hanger Dimensions
Model
Hanger Kit
Part Number
Unit Hanger Dimensions
ABC
006-012
in.
99S500A04
35.8 21.8 18.1
cm. 90.9 55.4 46.0
015-018
in.
99S500A04
35.8 25.1 21.4
cm. 90.9 63.8 54.4
024-030
in.
99S500A04
42.8 25.1 21.4
cm. 108.6 63.8 54.4
036
in.
99S500A04
42.8 25.1 21.4
cm. 108.7 63.8 54.4
042-048
in.
99S500A04
45.8 25.1 21.4
cm. 116.3 63.8 54.4
060
in.
99S500A04
48.8 28.1 24.4
cm. 124.0 71.4 62.0
070
in.
99S500A04
53.8 28.1 24.4
cm. 136.7 71.4 62.0
09/26/12
Weight Distribution Table
Model
Vertical
Shipping
Weight
Horizontal
Shipping
Weight
Horizontal Weight Distribution
Front Back
DEFG
006-012
lbs 111 112 44 21 19 28
kg 50 51 20 10 9 12
015-018
lbs 171 176 32 67 32 45
kg 78 80 15 30 15 20
024
lbs 245 242 47 85 45 65
kg 111 110 21 39 20 29
030
lbs 245 242 47 85 45 65
kg 111 110 21 39 20 29
036
lbs 267 265 60 95 50 60
kg 121 120 27 43 23 27
041
lbs 243
N/A
kg 110
042
lbs 305 310 68 105 60 77
kg 138 141 31 48 27 35
048
lbs 305 310 68 105 60 77
kg 138 141 31 48 27 35
060
lbs 344 350 77 115 68 90
kg 156 159 35 52 31 41
070
lbs 357 378 80 130 73 95
kg 162 171 36 59 33 43
