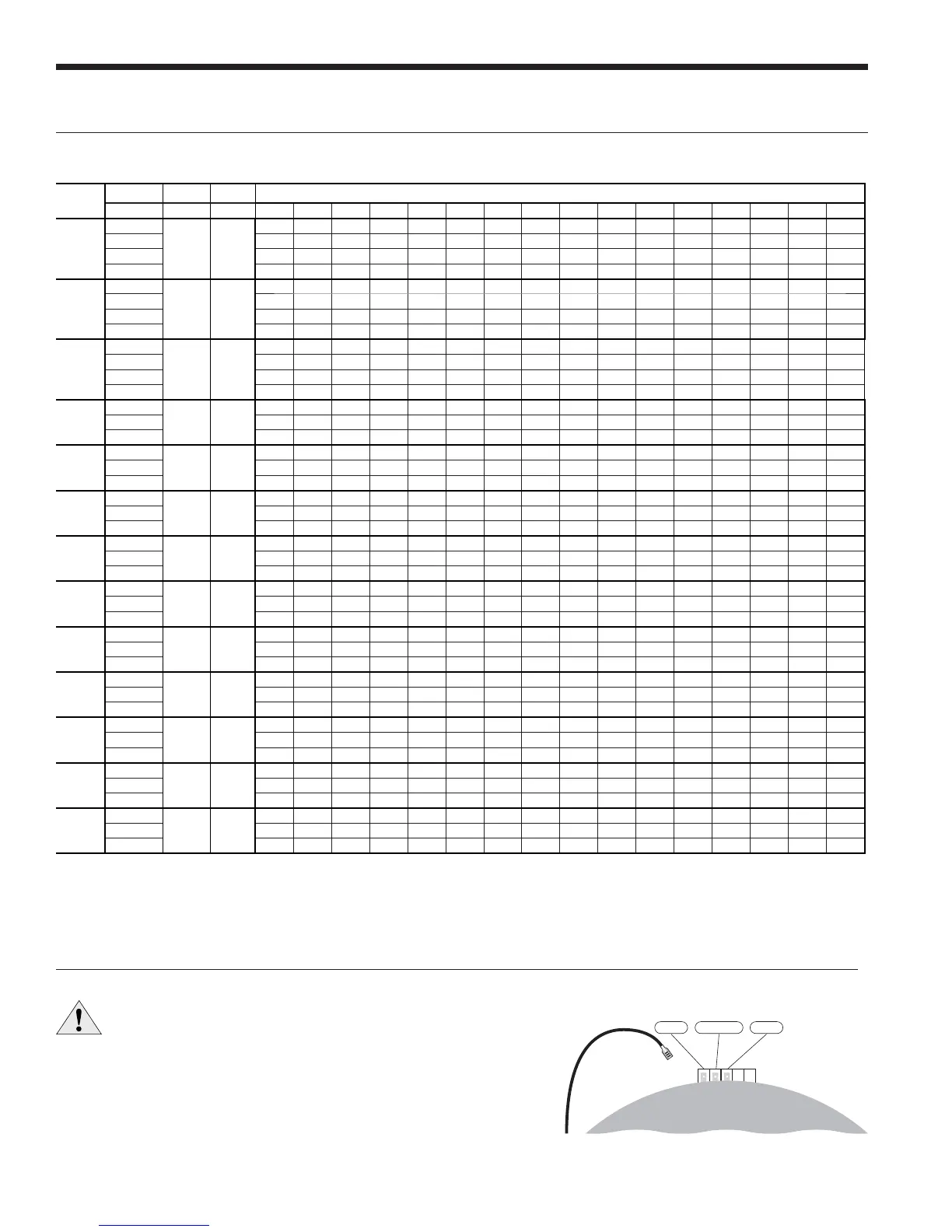

36
RB SERIES ENGINEERING GUIDE
Setting Blower Speed - PSC
CAUTION: Disconnect all power before performing
this operation.
PSC BLOWER MOTOR BODY
HIGH
LOWMEDIUM
F
A
N
S
P
E
E
D
W
I
R
E
Blower Performance Data
Factory settings are in Bold
A
ir ow values are with dry coil and standard lter
For wet coil performance rst calculate the face velocity of the air coil (Face Velocity [fpm] = Air ow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12 in. wg. and 500 fpm by 0.16 in. wg.
* Setting for 265V operation.
S
tandard PSC Motor
Model
Blower Blower Motor Air ow (cfm) at External Static Pressure (in. wg)
Spd Size HP 0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
006
H
6 x 8
1/10
435 425 415 405 390 365 340 325 305 290 275 245 - - - -
MH 400 390 380 370 355 335 310 295 280 265 255 210 195 - - -
ML* 365 355 345 335 315 300 280 270 255 240 230 195 - - - -
L 320 305 295 280 260 250 235 225 210 195 180 150 135 - - -
009
H
6 x 8 1/10
435 423 415 405 390 370 340 325 305 290 275 245 - - - -
MH 400 388 380 370 355 335 310 295 280 265 255 210 195 - - -
ML* 365 353 345 335 315 300 280 270 255 240 230 195 - - - -
L 320 305 295 280 260 250 235 225 210 195 180 150 135 - - -
012
H
6 x 8 1/10
435 423 415 405 390 370 340 325 305 290 275245----
MH 400 388 380 370 355 335 310 295 280 265 255 210 195 - - -
ML* 365 353 345 335 315 300 280 270 255240230195----
L 320 305 295 280 260 250 235 225 210 195 180 150 135 - - -
015
H
9 x 7 1/6
795 775 755 735 715 690 670 600 530 490 455 395 - - - -
M 725 710 695 675 660 640 620 560 495 465 435 375 - - - -
L 620 610 600 590 575 550 525 490 455 395 340 290 - - - -
018
H
9 x 7 1/6
795 775 755 735 715 690 670 600 530 490 455 395 - - - -
M 725 710 695 675 660 640 620 560 495 465 435 375 - - - -
L 620 610 600 590 575 550 525 490 455 395 340 290 - - - -
024
H
9 x 7 1/5
1035 1015 995 970 950 925 900 865 835 795 760 685 560 - - -
M 880 860 845 820 805 785 765 740 720 690 665 590 530 - - -
L 810 790 775 755 740 725 705 675 650 620 595 510 - - - -
030
H
9 x 7 1/3
1170 1145 1130 1110 1080 1050 1030 995 965 925 890 815 700 - - -
M 1040 1030 1020 1005 990 965 945 915 890 860 830 760 650 - - -
L 825 820 815 810 805 795 790 775 765 735 705 655 - - - -
036
H
9 x 7 1/2
1320
1295 1275 1240 1210 1185 1155 1120 1085 1045 1005 915 805 655 - -
M 1180
1155 1140 1125 1100 1075 1055 1020 990 955 920 840 725 590 - -
L 1045
1035 1025 1015 1005 985 970 945 920 890 865 795 690 - - -
041
H
9 x 7 1/3
1140 1115 1090 1060 1030 1000 975 940 905 865 830 750 353 - - -
M 1025
1000 980 955 935 910 885 850 820 780 745 670 475 - - -
L 935
920 905 885 865 845 825 795 770 740 710 565 - - - -
042
H
10x10 1/2
1530 1500 1475 1445 1425 1380 1340 1290 1240 1185 1130 810 715
630 - -
M
1435 1415 1395 1370 1350 1325 1300 1265 1235 1180 1130 1040 755 640 - -
L
1160 1140 1130 1120 1100 1070 1050 1020 990 950 910 831 632 590 - -
048
H
10 x 10 1/2
1845 1810 1775 1740 1705 1660 1615 1560 1510 1455 1405 1275 1080 - - -
M 1655 1620 1585 1555 1535 1500 1465 1415 1370 1330 1290 1170 970 - - -
L 1325 1315 1310 1285 1265 1245 1220 1180 1140 1115 1090 990 - - - -
060
H
11 x 10 1
2345 2320 2305 2285 2250 2205 2180 2135 2090 2060 2030 1945 1850 1740 1600 1465
M 2195 2170 2150 2125 2105 2075 2045 2005 1970 1940 1915 1845 1770 1630 1500 -
L 2045 2030 2020 1995 1980 1950 1925 1890 1855 1825 1800 1750 1640 1535 1395 -
070
H
11 x 10 1
2505 2475 2450 2410 2385 2365 2340 2305 2275 2250 2230 2170 2070 1975 1880 1765
M 2290 2265 2250 2230 2200 2170 2150 2135 2125 2105 2085 2015 1950 1865 1785 1680
L 2115 2100 2085 2060 2040 2020 2005 1990 1975 1950 1930 1875 1805 1720 1655 1510
10/15/15
