37
RB SERIES ENGINEERING GUIDE

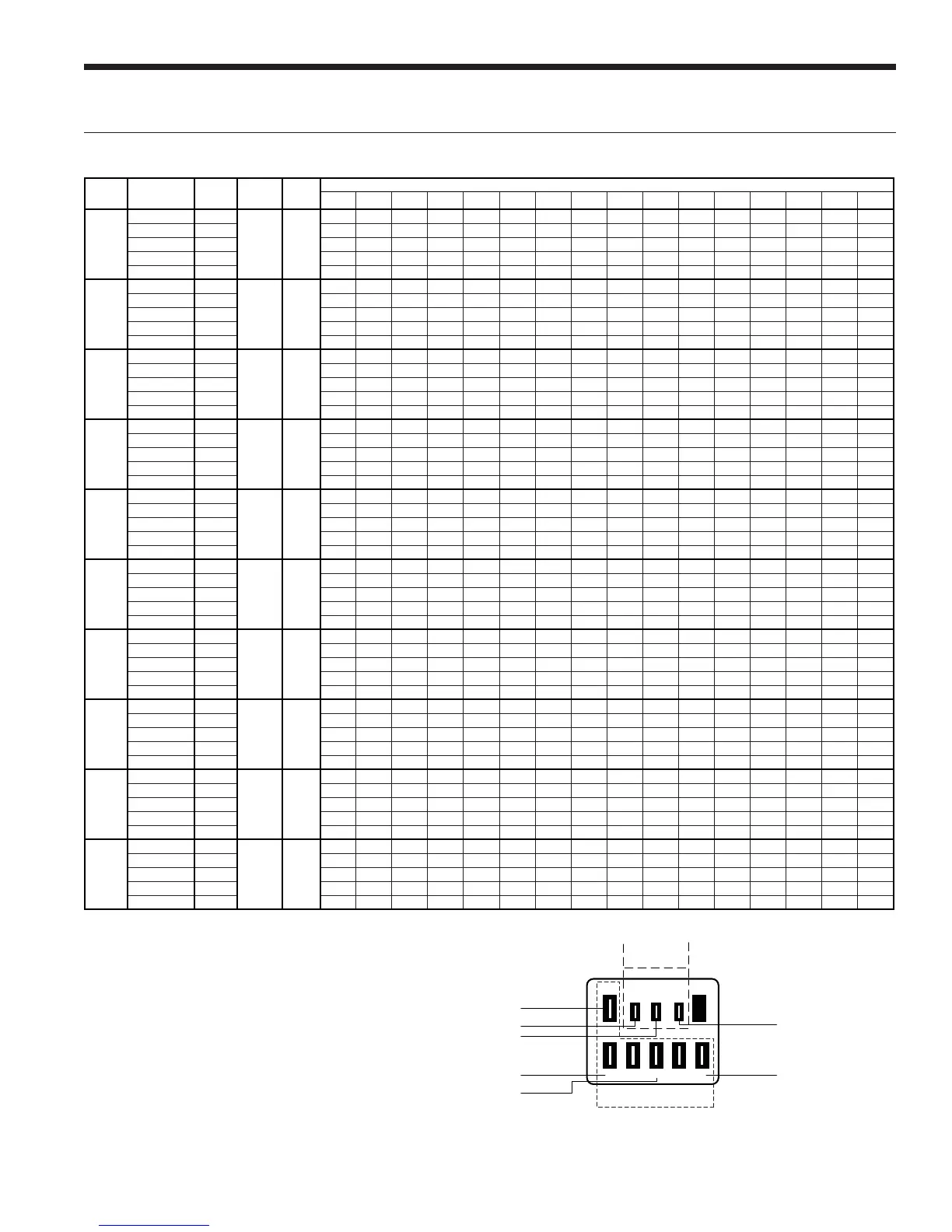

Blower Performance Data cont.
Hi h V lt
5-Speed ECM Motor Connections
5- Speed ECM Motor
Model Motor Spd
Motor
Tap
Blower
Size
Motor
HP
Air ow (cfm) at External Static Pressure (in. wg)
0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
015
High 5
9 x 7 1/2
915 895 880 865 850 830 815 805 795 775 750
730 695 640 - -
Med High 4
805 785 765 750 740 725 705 685 665 655 635 605 535 - - -
Med 3
725 715 700 680 660 635 615 600 585 560 535 485 - - - -
Med Low 2
695 675 650 630 610 590 575 550 525 490 455 -----
Low 1
655 600 550 530 508 490 475 435 395 350 - -----
018
High 5
9 x 7 1/2
915 895 880 865 850 830 815 805 795 775 750
730 695 640 - -
Med High 4
805 785 765 750 740 725 705 685 665 655 635 605 535 - - -
Med 3
725 715 700 680 660 635 615 600 585 560 535 485 - - - -
Med Low 2
695 675 650 630 610 590 575 550 525 490 455 -----
Low 1
655 600 550 530 508 490 475 435 395 350 - -----
024
High 5
9 x 7 1/2
1000 983 965 950 935 923 910 900 890 873 855
800 725 - -
Med High 4
905 888 870 860 850 833 815 805 795 775 755 740 705 - - -
Med 3
855 838 820 800 780 773 765 745 725 715 705 670 580 - - -
Med Low 2
790 773 755 743 730 710 690 675 660 643 625 570 - - - -
Low 1
615 600 585 565 545 523 500 468 435 408 380 -----
030
High 5
9 x 7 1/2
1315
1293 1270 1243 1215 1183 1150 1120 1090 1055 1020 930 845 - - -
Med High 4 1145
1130 1115 1105 1095 1080 1065 1053 1040 1013 985 905 820 - - -
Med 3 1020
1008 995 978 960 950 940 923 905 895 885 850 795 735 - -
Med Low 2 980
963 945 935 925 908 890 878 865 848 830 805 780 720 - -
Low 1 795
778 760 738 715 705 695 678 660 650 640 575 530 - - -
036
High 5
9 x 7 1/2
1405 1380 1355 1333 1310 1275 1240 1208 1175 1135 1095
1015 895 775 - -
Med High 4
1275 1265 1255 1245 1235 1215 1195 1168 1140 1105 1070 985 875 770 - -
Med 3
1180 1163 1145 1135 1125 1110 1095 1085 1075 1060 1045 975 865 750 - -
Med Low 2
1125 1115 1105 1090 1075 1065 1055 1040 1025 1008 990 950 855 730 - -
Low 1
835 823 810 793 775 758 740 723 705 690 675 640 570 - - -
041
High 5
9 x 7 1/2
1285 1250 1215 1180 1150 1115 1085 1055 1025 980 940 875 600 510 - -
Med High 4
1225 1195 1170 1140 1115 1085 1045 1020 995 955 920 855 585 495 - -
Med 3
1120 1100 1085 1070 1055 1040 1030 995 960 925 890 840 560 475 - -
Med Low 2
1075 1060 1045 1025 1005 995 985 965 945 905 860 825 545 465 - -
Low 1
795 770 750 730 710 700 690 665 645 615 585 545 510 455 - -
042
High 5
11 x 10 1
1805
1793 1780 1770 1760 1740 1720 1710 1700 1688 1675 1655 1635 1590 1550 1475
Med High 4 1695
1688 1680 1660 1640 1623 1605 1593 1580 1573 1565 1535 1505 1460 1395 1300
Med 3 1605
1593 1580 1560 1540 1523 1505 1493 1480 1470 1460 1420 1380 1305 1205 1135
Med Low 2 1510
1495 1480 1465 1450 1435 1420 1403 1385 1373 1360 1310 1250 1135 1055 1010
Low 1 1340
1323 1305 1283 1260 1245 1230 1213 1195 1175 1155 1040 915 875 - -
048
High 5
11 x 10 1
2000
1990 1980 1968 1955 1940 1925 1920 1915 1910 1905 1880 1845 1790 1655 1505
Med High 4 1840
1833 1825 1810 1795 1785 1775 1770 1765 1755 1745 1715 1670 1620 1540 1360
Med 3 1755
1743 1730 1718 1705 1698 1690 1683 1675 1655 1635 1600 1555 1495 1435 1300
Med Low 2 1645
1630 1615 1605 1595 1583 1570 1560 1550 1530 1510 1475 1420 1350 1265 1180
Low 1 1430
1413 1395 1385 1375 1358 1340 1320 1300 1275 1250 1170 1060 995 930 875
060
High 5
11 x 10 1
2455
2440 2425 2413 2400 2390 2380 2365 2350 2335 2320 2295 2245 2175 2085 2015
Med High 4 2260
2250 2240 2223 2205 2195 2185 2168 2150 2133 2115 2085 2045 2005 1975 1930
Med 3 2140
2123 2105 2095 2085 2065 2045 2033 2020 2005 1990 1960 1915 1870 1835 1790
Med Low 2 2010
1995 1980 1963 1945 1935 1925 1908 1890 1873 1855 1825 1780 1745 1690 1645
Low 1 1815
1803 1790 1775 1760 1743 1725 1705 1685 1665 1645 1600 1565 1515 1470 1410
070
High 5
11 x 10 1
2500
2495 2490 2473 2455 2438 2420 2405 2390 2363 2335 2325 2280 2215 2120 1995
Med High 4 2300
2295 2290 2270 2250 2233 2215 2200 2185 2168 2150 2115 2080 2040 1990 1915
Med 3 2175
2163 2150 2138 2125 2100 2075 2060 2045 2030 2015 1980 1945 1905 1860 1820
Med Low 2 2040
2028 2015 2000 1985 1965 1945 1930 1915 1898 1880 1850 1805 1760 1725 1685
Low 1 1850
1833 1815 1800 1785 1765 1745 1728 1710 1683 1655 1615 1580 1530 1475 1300
Factory settings are in Bold 10/15/15
Air ow values are with dry coil and standard 1” lter
L
GN
C
High Voltage
Connections
3/16 in.
12
345
G - Blue
Y1 - Red
AUX - Gray
C - Black
L - Orange
G - Green
N - Brown
Low Voltage
Connections 1/4 in.
