SCREEN 5 - Set Control “Mode”
SYSTEM CONFIGURATION
After selecting the “System Master Mode” button, the Touch Screen Communicating Control will
begin a routine to “discover” system components. The installer will be directed through screens
(Auto Setup) that are dependent upon the system being configured. The below screens will appear
dependent on equipment being installed.
Heat kit configuration screens will appear in a communication system that includes a communicat-
ing variable speed air handler (indicated by a “-C” in the model number). For the AV/MV Air Handler,
the heat jumper must be located in the "On" position. For more information on the function of these
screens refer to the Service Mode section of this document.

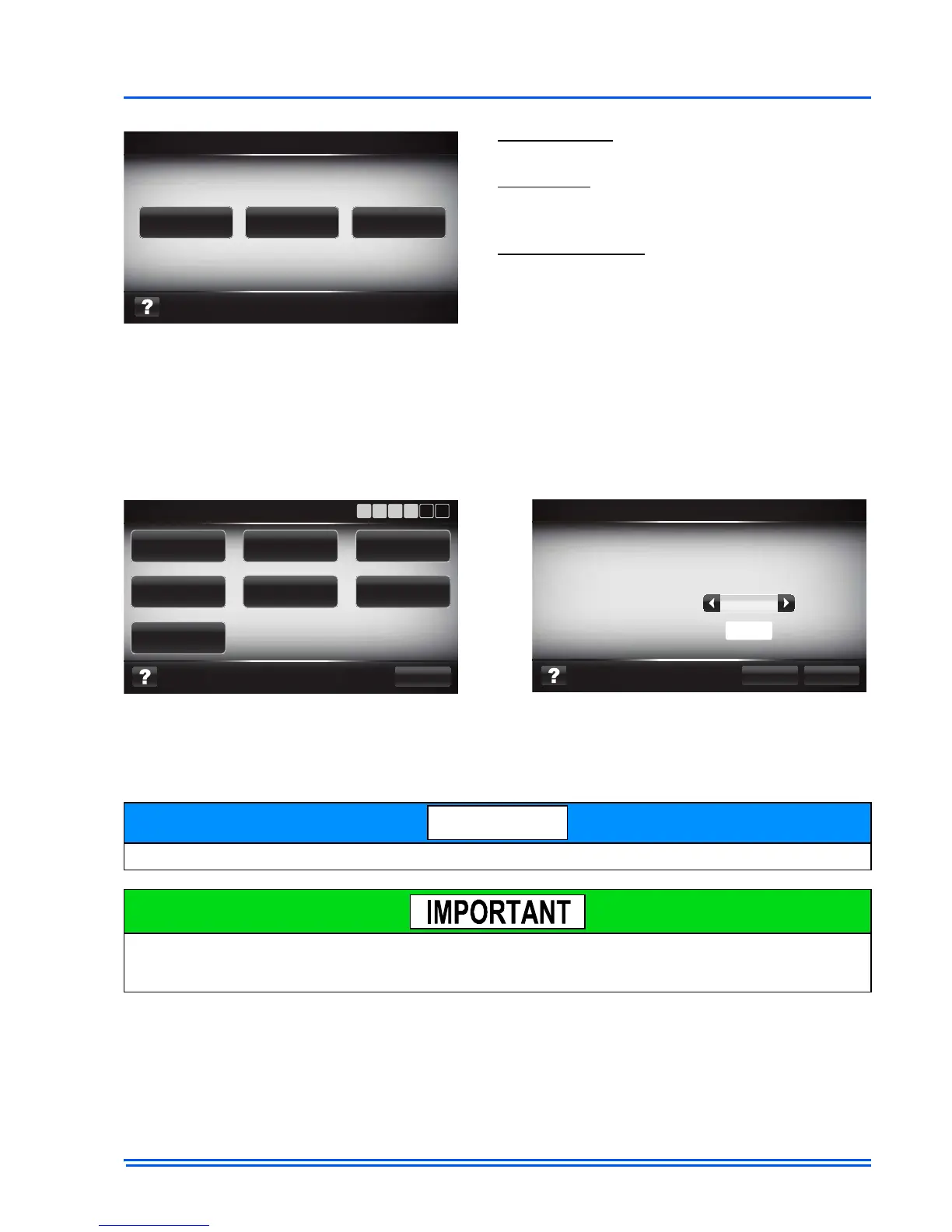

System Master
is for installation of a residential
system press.
Demo mode
is for use of the Touch Screen Com-
municating Control as a sales or training tool and
will not control a system.
Service Tool Mode
is for use of the control to
view operation of a system already being con-
trolled by a Touch Screen Communicating Con-
trol in system master mode.
The screen shown above is representative only. Actual heat kit models may vary.
If you have a system which has a heat kit installed, but did not see the heat kit configuration
screens, be sure to check the air handler control to insure that the heat kit jumper is on "Heat".
This only applies to the AV/MV Air Handler.
