542933-UIM-D-0513
Johnson Controls Unitary Products 33

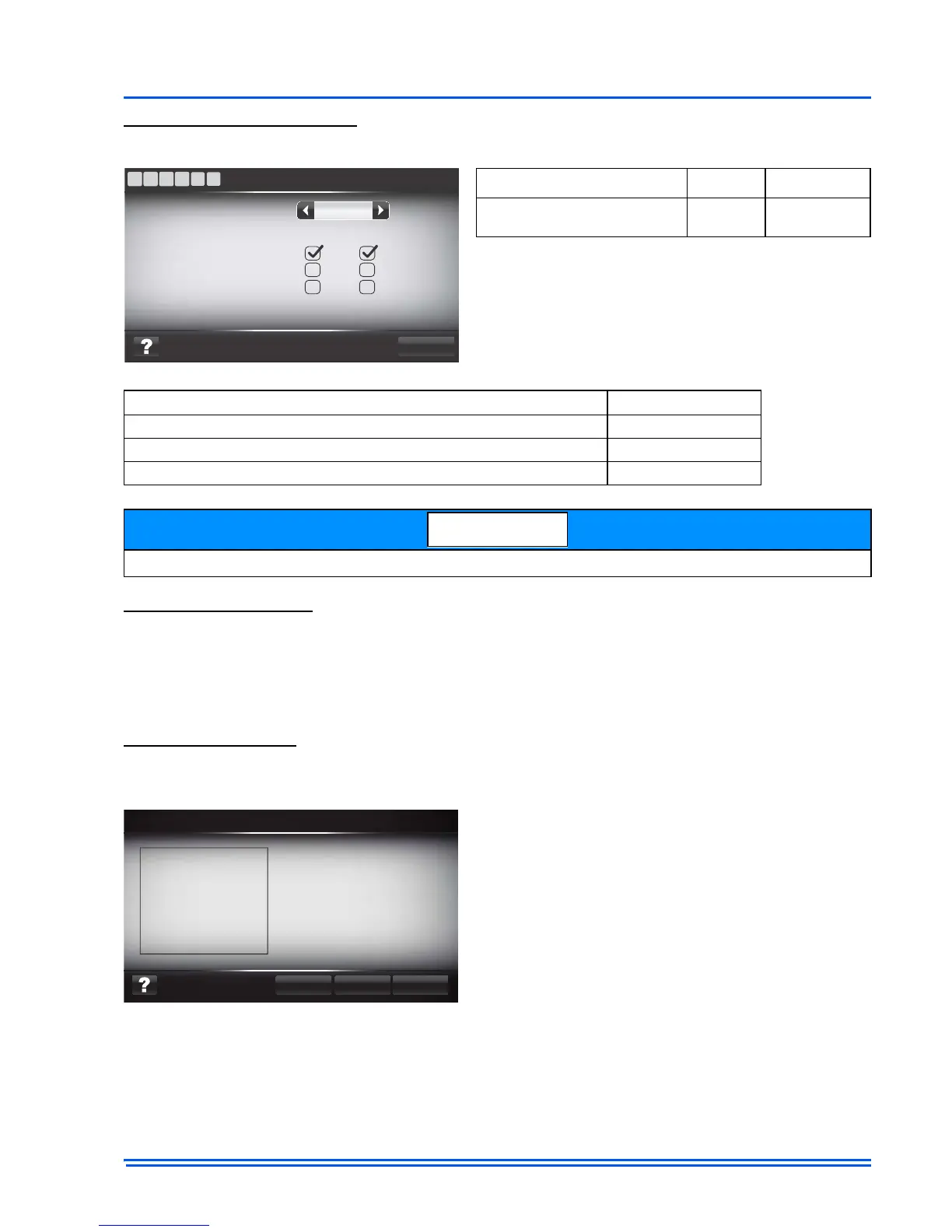

Auxiliary Switch Settings
This screen allows the user to determine the functionality for cooling and heating.
Temperature Sensor
If used, this optional sensor is automatically detected during startup depending on the presence of
an outdoor unit.
The Temperature Sensor is used as a Leaving Air Temperature Sensor if an outdoor unit is present
and is used as an Outdoor Temperature Sensor if an outdoor unit is not present.
Dealer Information
This tool is available in all communicating systems. This screen is used to view, import and edit the
dealer information.
3. The keyboard will “pop up” which is used to type name, address, e-mail, phone, and any other
dealer information which will fit in the provided space.
To add a logo, simply press the “Add Logo” button and follow the instructions on the screen.
Variable Default
Settings
When Auxiliary Switch is:
Open
Open,
Closed
Available Functionality Default
No Action X
Stage Down
Turn off Compressor (backup heat will be used for heating)
Y2Lock must be OFF for the Stage Down Functionality.
Once the “Dealer Information” button has been
pressed in the “Tools and Settings” screen, the
dealer information is displayed as previously
input. To edit the information:
1. Press the “edit” button.
2. Press the field that you would like to edit.
To Next Page
