542933-UIM-D-0513
Johnson Controls Unitary Products 3
SECTION III: INSTALLATION
The intention of this document is to ensure proper connection/setup of the various communicating
system components. These instructions should be used in conjunction with the instructions pro-
vided with indoor, outdoor and accessory equipment of which the Touch Screen Communicating
Control will command.
This installation instruction contains (in part) setup, operation, and troubleshooting of the UPG Com-
municating System.
The Touch Screen Communicating Control will engage the installer with special screen prompts and
introduce settings to simplify and provide a path through the initial start up of the system.
When Installing this Product...
1. Read all instructions carefully before beginning installation. Failure to follow these instructions
can create hazardous situations or damage the product.
2. Make certain the product is suitable for your application by checking all ratings on the product
and in the instruction provided.
3. Installer must be a trained, experienced service technician.
LOCATION
Install the Touch Screen Communicating Control at or around 5 ft. (1.5m) above the floor in an area
with good circulation of room temperature. See Figure 1.
Do not install the Touch Screen Communicating Control where it can be affected by:
• Drafts or dead spots behind doors and in corners
• Hot or cold air from ducts
• Radiant heat from sun or appliances
• Concealed pipes and chimneys
• Unconditioned areas such as an outside wall

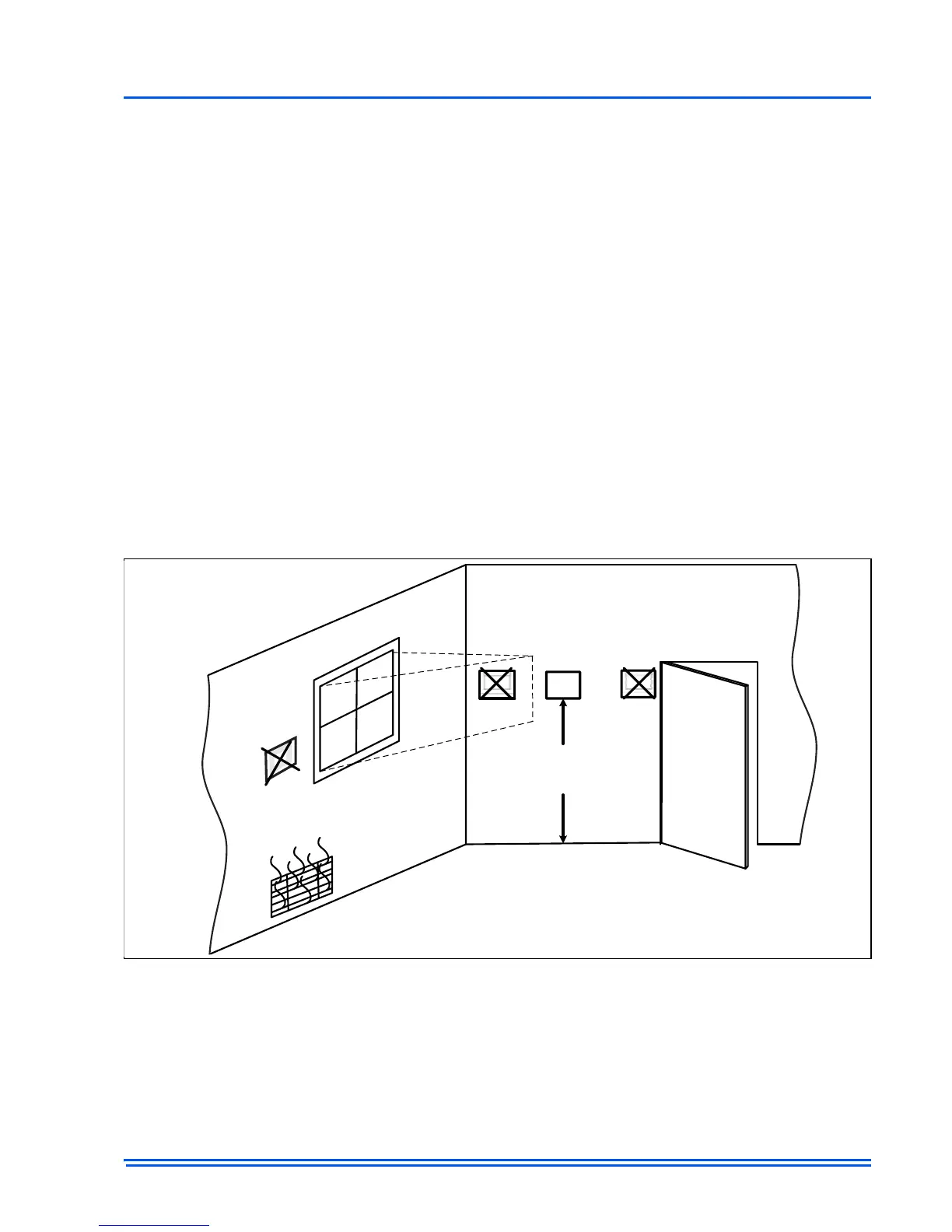

FIGURE 1:
Control Location
