Johnson Controls S300 Series User Manual

S300-DIN-RDR2S Module Hardware Installation
24-10239-413 Rev. A 15
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

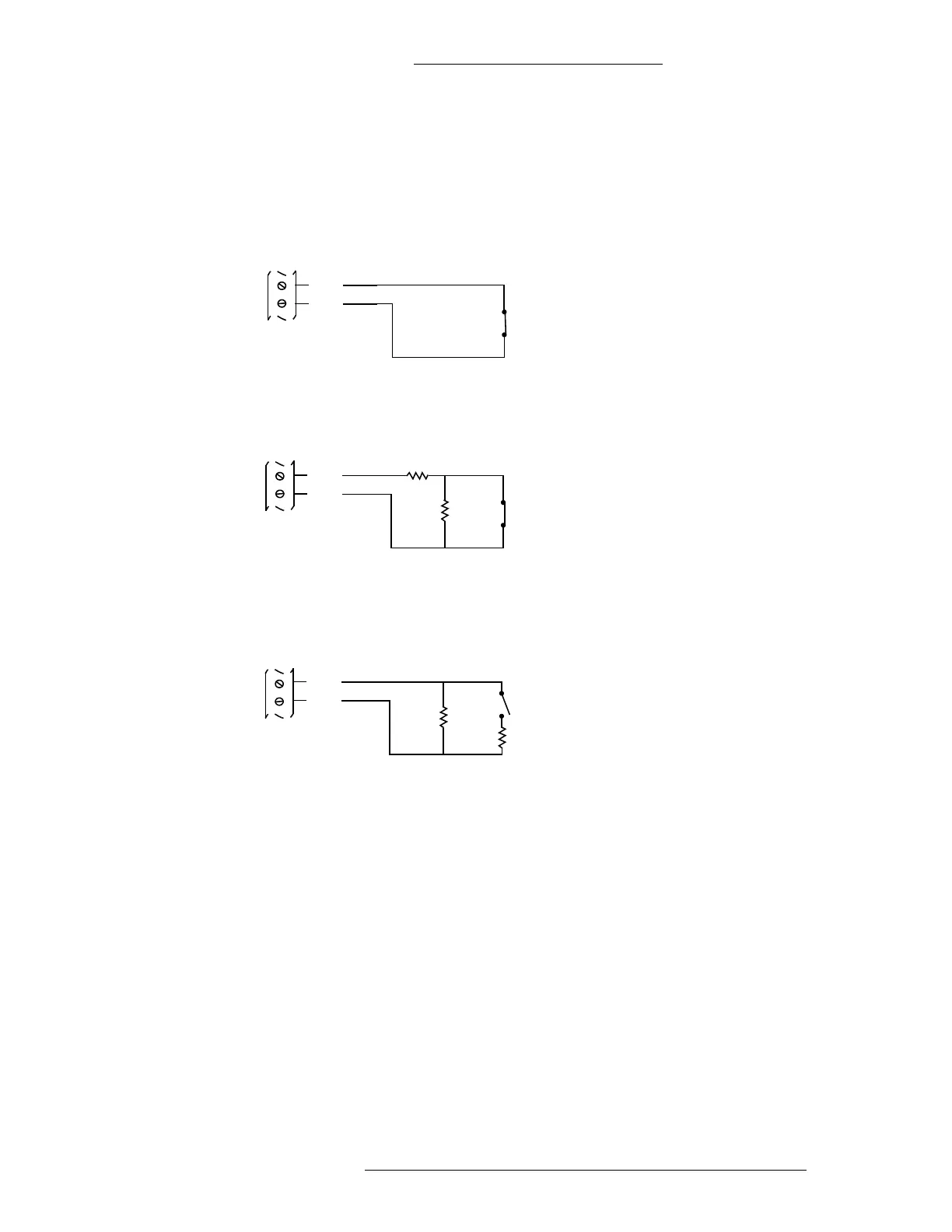

General Input Wiring
Depending on programming, there are either 2-state or 4-state inputs. You should
define the inputs depending on the needs of your site.
IN11
REF
2-State Inputs Wiring
Note: The 4-state wiring requires two
resistors of the same value. The resistors
can be 150-2000 Ohms, 5%, 1/4W. The
recommended resistor is 1200 Ohms.
IN11
REF
4-State Inputs Wiring: N/C Switch
Note: The 4-state wiring requires two
resistors of the same value. The resistors
can be 150-2000 Ohms, 5%, 1/4W. The
recommended resistor is 1200 Ohms.
IN11
REF
4-State Inputs Wiring: N/O Switch
