Johnson Controls S300 Series User Manual

Hardware Installation S300-DIN-RDR2S Module
16 24-10239-413 Rev. A
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
Sample Application Diagrams

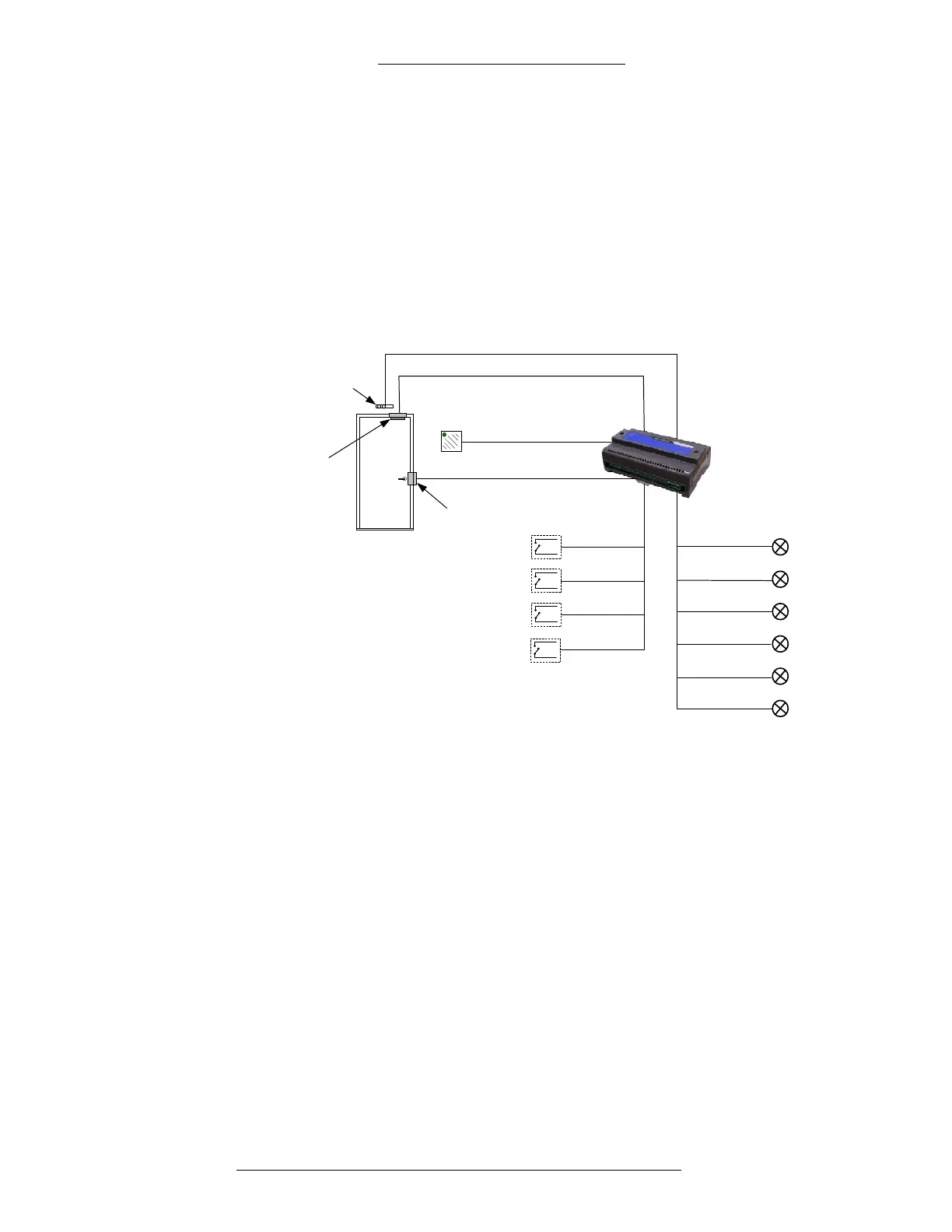

One Door Application
This application is designed for the RDR2S with Reader 1 (Top) enabled for use
with a single, fully configured door (single strike – single reader). The remaining
input/output points are designated as general purpose I/Os, meaning you can use
these I/Os for other applications, such as a reader with a tamper switch (input) or
alarm annunciation output (siren, lights).
REX Device
(Motion Sensor)
Door
Contact
Reader
DATA0 / DATA1 (top),
OUT11, OUT12, OUT13
Door Strike
NO / NC (top)
IN12
IN11
General Purpose
Inputs
General Purpose
Outputs
IN01
IN02
IN21
IN22
OUT01
OUT02
OUT21
OUT22
OUT23
RDR2S
NO / NC (bottom)
