Johnson Controls S300 Series User Manual

S300-DIN-RDR2S Module Hardware Installation
24-10239-413 Rev. A 17
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

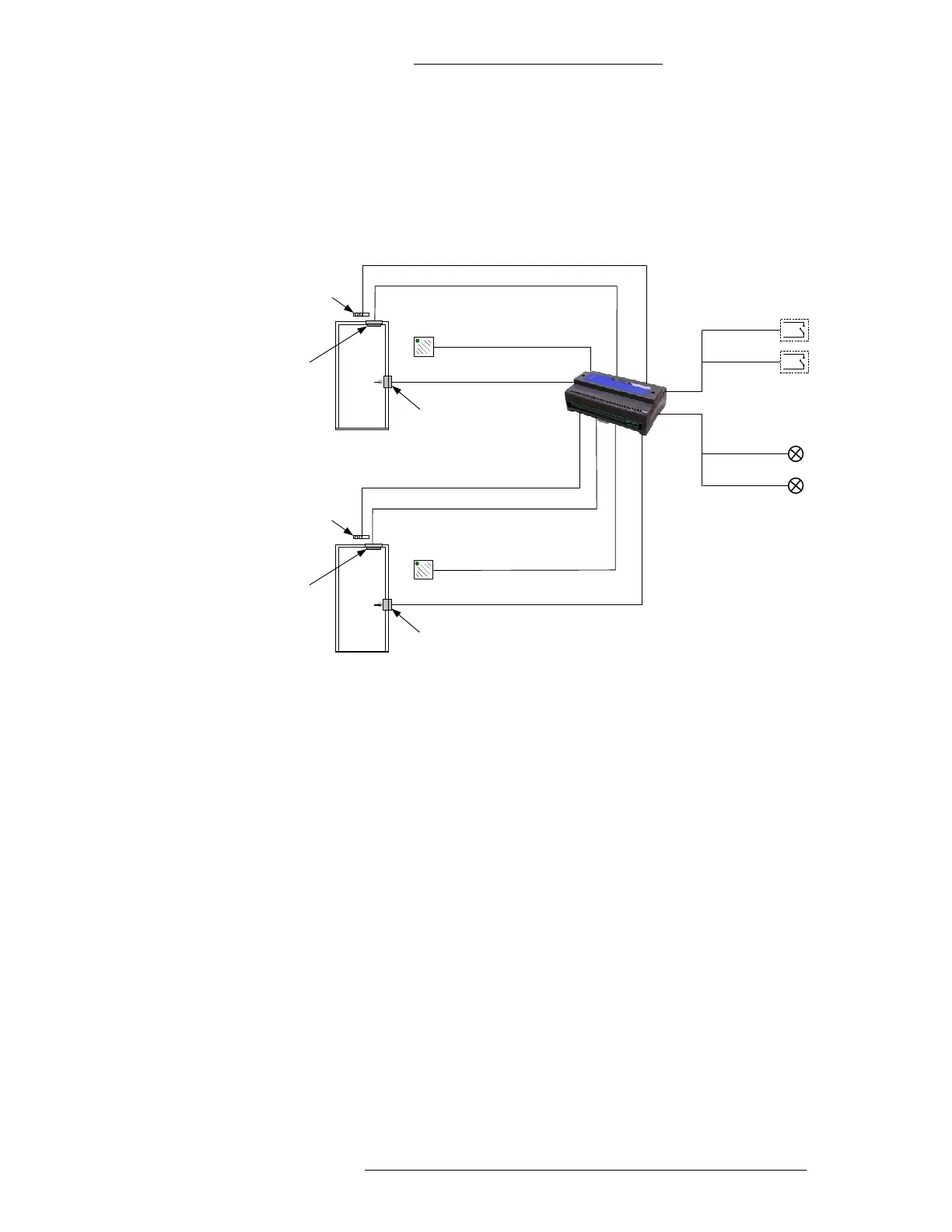

Two Door Application
This application is designed for the RDR2S with Reader 1 (Top) and Reader 2
(Bottom) enabled for use with two separate, fully configured doors (not an entry/exit
door). There are two remaining input points and two output points for use as general
purpose I/Os.
REX Device
(Motion Sensor)
Door
Contact
Reader
DATA0 / DATA1 (top),
OUT11 and OUT12
Door Strike
NO / NC (top)
IN12
IN11
RDR2S
REX Device
(Motion Sensor)
Door
Contact
Reader
DATA0 / DATA1 (bottom),
OUT21 and OUT22
Door Strike
NO / NC (bottom)
IN22
IN21
DOOR 1
DOOR 2
General Purpose
Inputs
General Purpose
Outputs
IN01
IN02
OUT01
OUT02
