Hardware Installation S300-DIN-RDR2S Module
18 24-10239-413 Rev. A
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

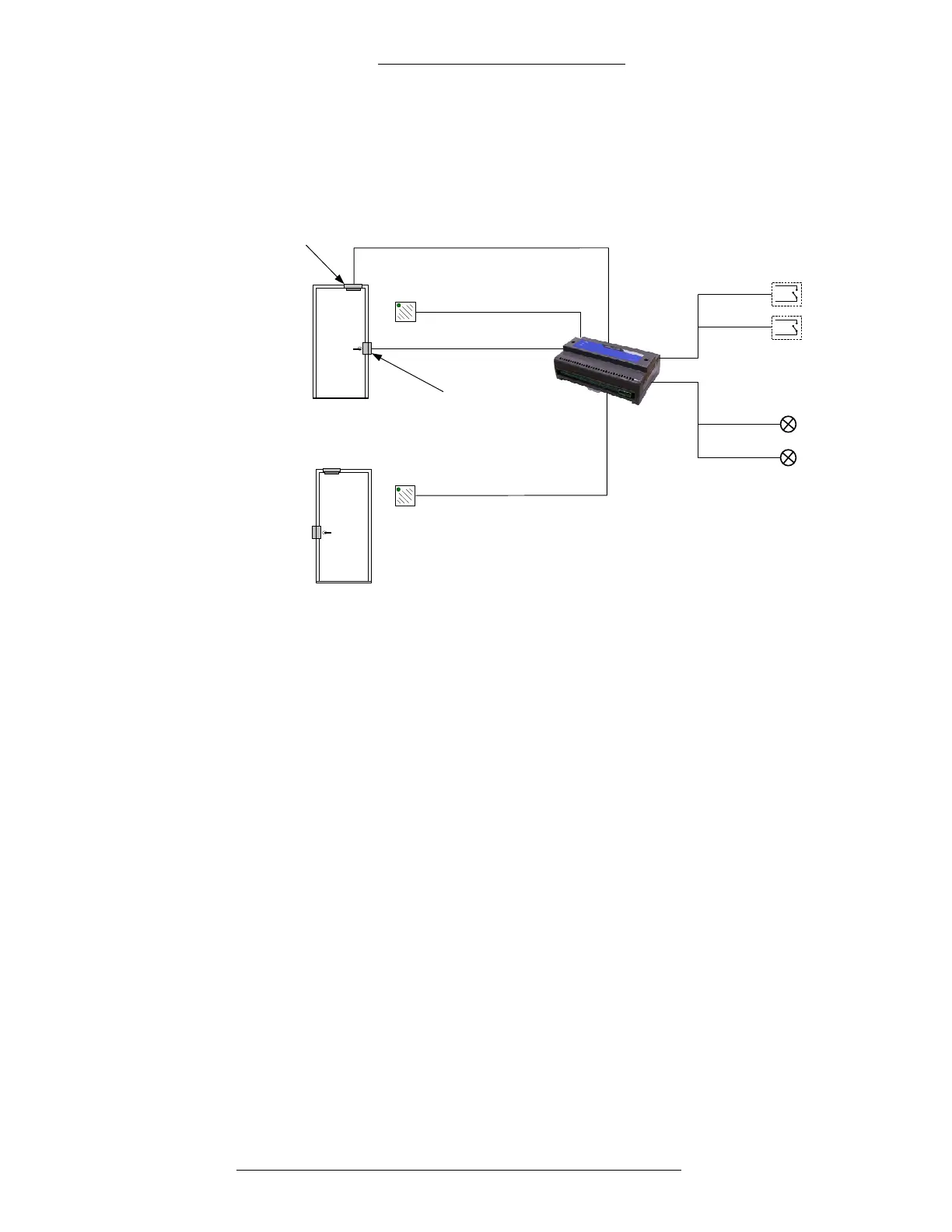

Entry-Exit Application (One Door, One Strike, Two Readers)
The following application is designed for the RDR2S with Reader 1 and Reader 2
enabled for use with a single door (entry/exit). There are two remaining input points
and two output points for use as general purpose I/Os.
Door Contact
Reader 1
(Entry)*
DATA0 / DATA1 (top),
OUT11 and OUT12
Door Strike*
NO / NC (top)
IN11
RDR2S
Reader 2
(Exit)*
DATA0 / DATA1 (bottom)
DOOR (Front)
DOOR (Back)
IN01
IN02
OUT01
OUT02
*Red light and green light terminals on Reader 1 (top) and Reader 2
(bottom) should be wired in parallel. When granting access or egress,
both readers will have their green LEDs lit. When an entity is denied
access or egress, both readers will have their red LEDs lit.
General Purpose
Inputs
General Purpose
Outputs
To Next Page
