S300-DIN-RDR2S Module Hardware Installation
24-10239-413 Rev. A 19
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

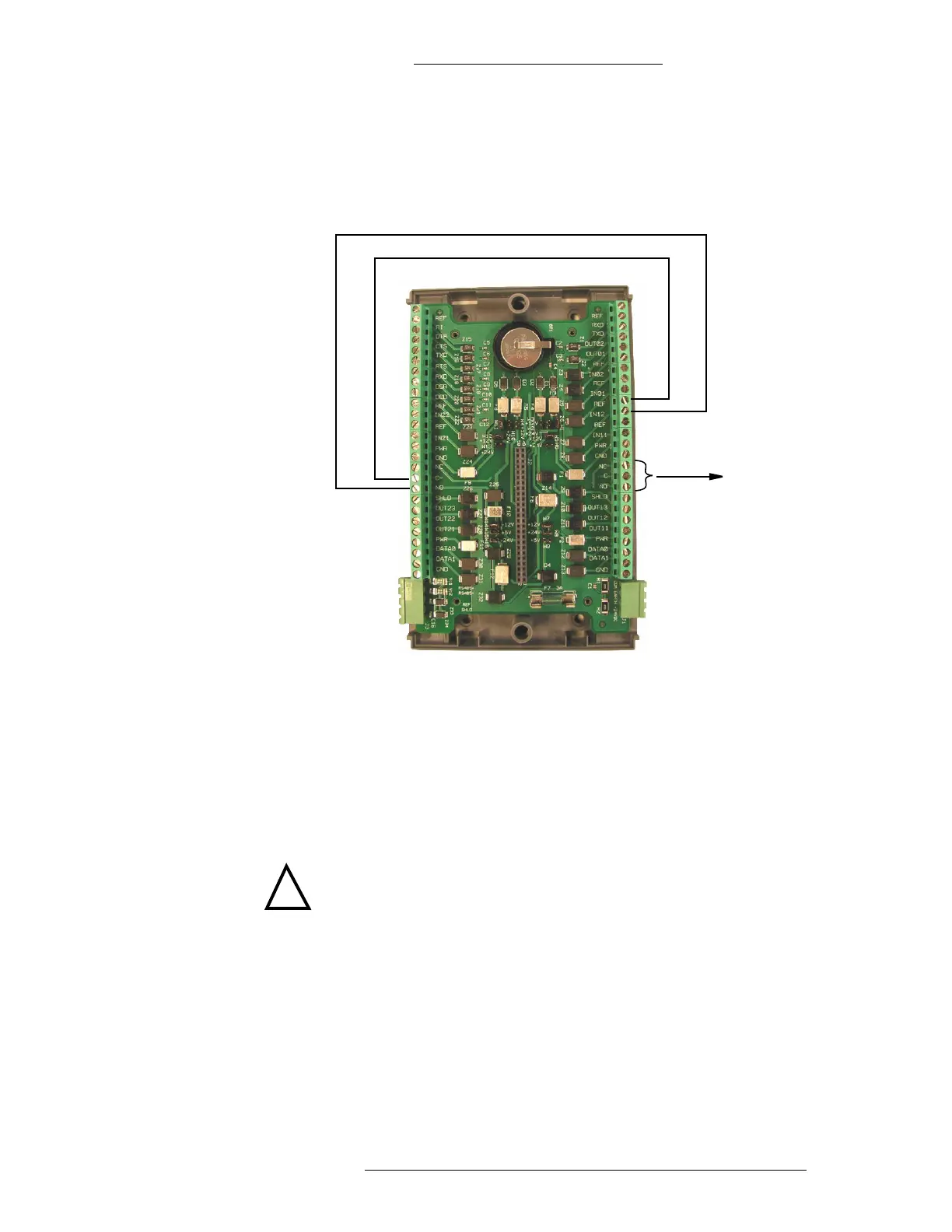

Wiring One Strike Shared By Two Readers
For applications with two readers sharing a sin
gle door strike, wire the Reader 2
(Bottom) Door Strike to Reader 1 (Top) Auxiliary Device according to the following
diagram.
NO
C
IN12
REF
Reader 2 (Bottom)
Door Strike
Reader 1 (Top)
Auxiliary Access
To D oo r St ri k e
Ground and Grounding Cable Shields
Ground
Every metal DIN enclosure in a Johnson Controls installation must have its chassis
bonded to a verified electrical ground (earth).
Conduit ground, cold water pipes, unbrazed joints or dissimilar metals
are unacceptable in the path of either building or supplemental
ground. Where grounding is required, connect only to the proven
building electrical system ground (earth).
!
CAUTION
