Operating instructions

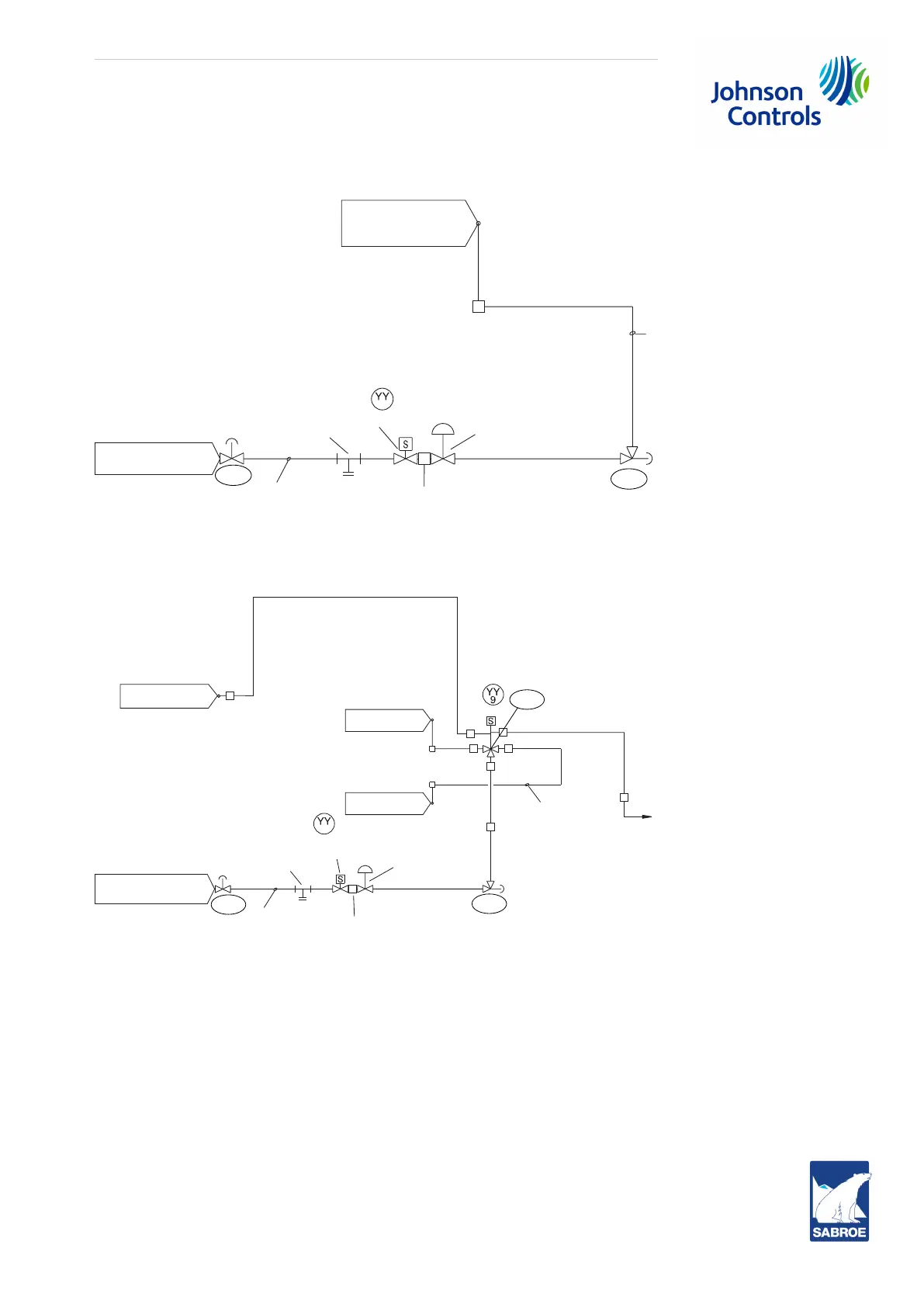

6.3 P&I diagrams - liquid injection, single and dual port
Fig. 12: P&I diagram - liquid injection, single port
Fig. 13: P&I diagram - liquid injection, dual port
Compressor Low Vi
Liquid refrigerant
from receiver
Solenoid valve
Strainer
Liquid line
Sight glass
Motorised
expansion
valve
Tubing line
5
170
165
Compressor
Low Vi
Compressor
High Vi
To separator
Tubing line
Motorised
expansion
valve
Solenoid
valve
Strainer
Sight glass
Liquid
line
Liquid refrigerant
from receiver
Compressor
suction pressure
5
170
165
171
