Operating manual - SAB 120-151 A-frame (including ATEX)
008668 en 2019.08
37/61
Operating instructions

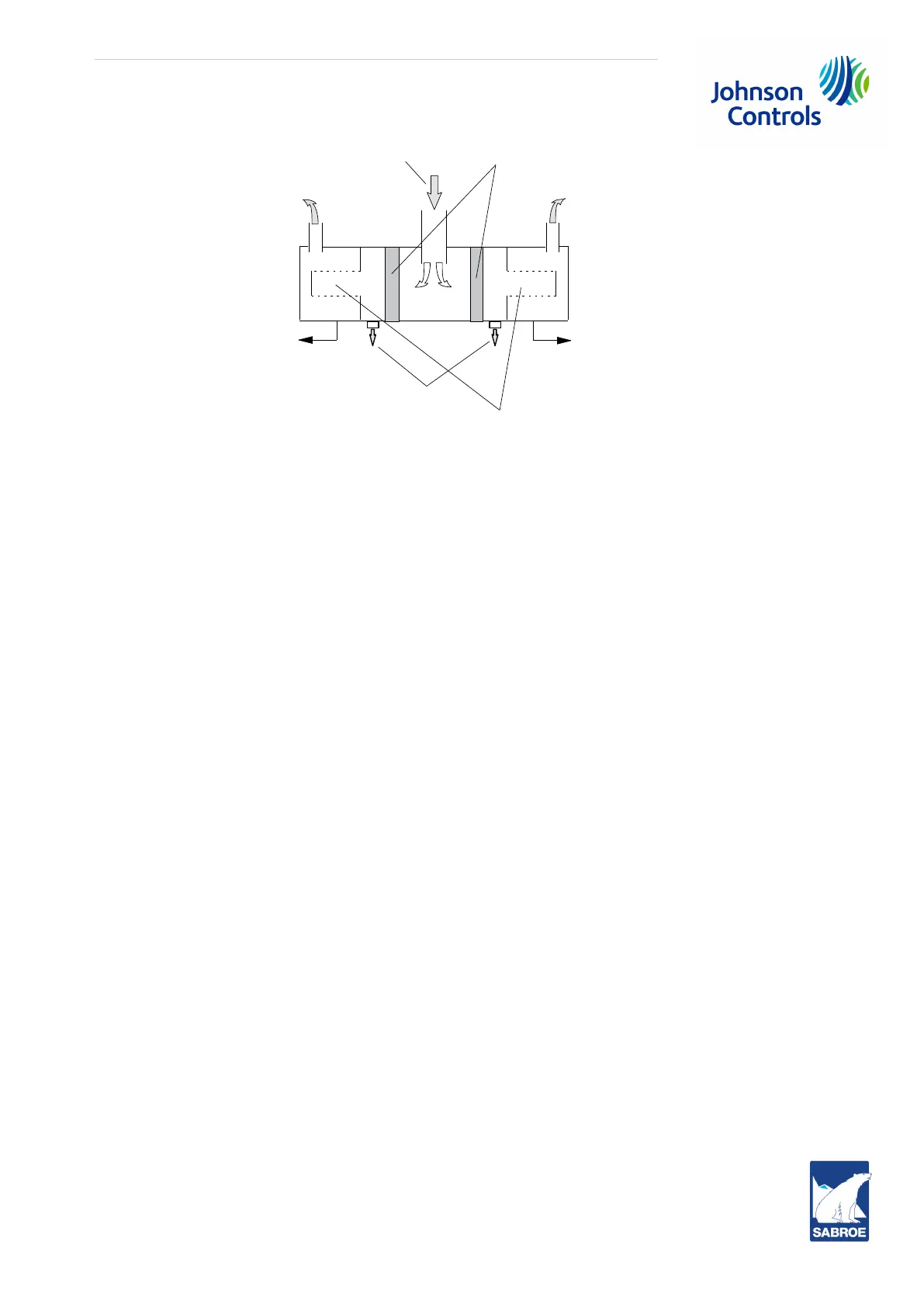

Fig. 16: Principle for 0HU 04136
Note: Automatic oil return: Open the service valves completely to keep the coalescer end of the
separator free of oil.
The sight glass in the valve indicates flow variations.
Note: See subsection 8.5 Oil charge for normal operating oil level.
Demister
From the compressor
To oil vessel
Fine oil separator element, pos. 55
Oil returnOil return
