RWF II ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
070.610-IOM (JUN 11)
Page 41

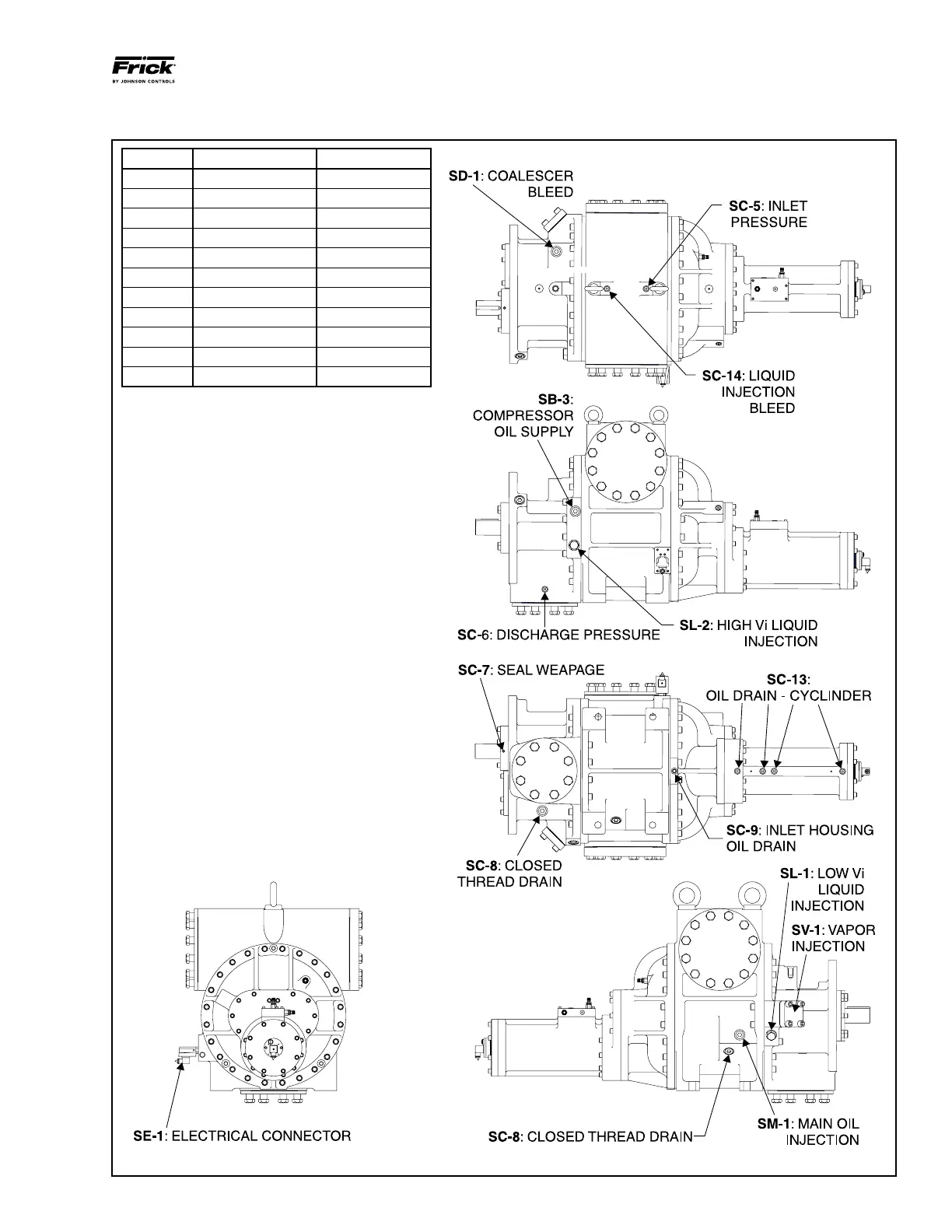

COMPRESSOR PORT LOCATIONS - RWF II 100/134
PORT THREAD SIZE O-RING
SB-3
1Z\zn-12 UN-2B
980A0012K66
SC-5 9/16-18 UNF-2B 980A0012K60
SC-6 9/16-18 UNF-2B 980A0012K60
SC-8
1Z\zn-12 UN-2B
980A0012K66
SC-9 9/16-18 UNF-2B 980A0012K60
SC-13 9/16-18 UNF-2B 980A0012K60
SC-14 9/16-18 UNF-2B 980A0012K60
SD-1
1Z\zn-12 UN-2B
980A0012K66
SL-1
1Z\zn-12 UN-2B
980A0012K66
SL-2
1Z\zn-12 UN-2B
980A0012K66
SM-1
1Z\zn-12 UN-2B
980A0012K66
