JOHNSON CONTROLS
192
FORM 150.62-NM6 (103)

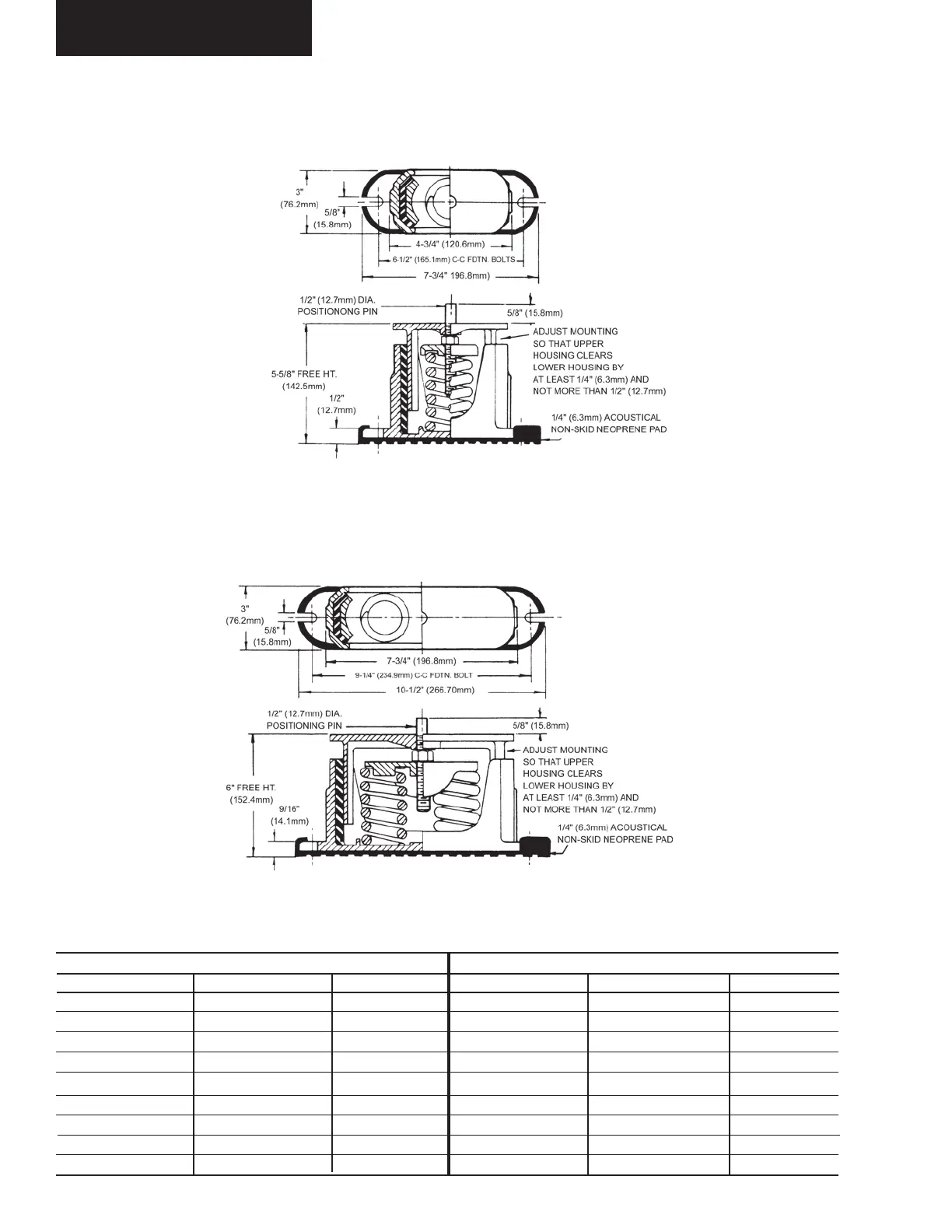

FIG. 34 – TYPE CP 1
FIG. 35 – TYPE CP 2
LD03839
LD03840
Appendix 1 – Isolators
1" DEFLECTION SEISMIC
MODEL PART- # COLOR MODEL PART # COLOR
CP-1-26 308439-26 ORANGE AEQM-95 30155-95 RED
CP-1-27 308439-27 ORANGE AEQM-96 301055-96 BLACK
CP-1-28 308439-28 GREEN AEQM-97 301055-97 WHITE
CP-1-31 308439-31 GRAY AEQM-98 301055-98 GRAY
CP-2-25 308439-25 RED AEQM-1000 30106-1000 GREEN
CP-2-26 308692-26 PURPLE AEQM-1300 30106-1300 YELLOW
CP-2-27 308962-27 ORANGE AEQM-1600 301060-1600 GRAY
CP-2-28 308692-28 GREEN AEQM-1625 301060-1625 RED
CP-2-31 308692-31 GRAY AEQM-1628 301060-1628 GRAY/GREEN
ISOLATOR SPRING IDENTIFICATION TABLE
APPENDIX 1
ISOLATOR DIMENSIONS CP-1 AND CP-2
