JOHNSON CONTROLS
193
FORM 150.62-NM6 (103)
APPENDIX 1
(DIMENSIONS)
LD04045

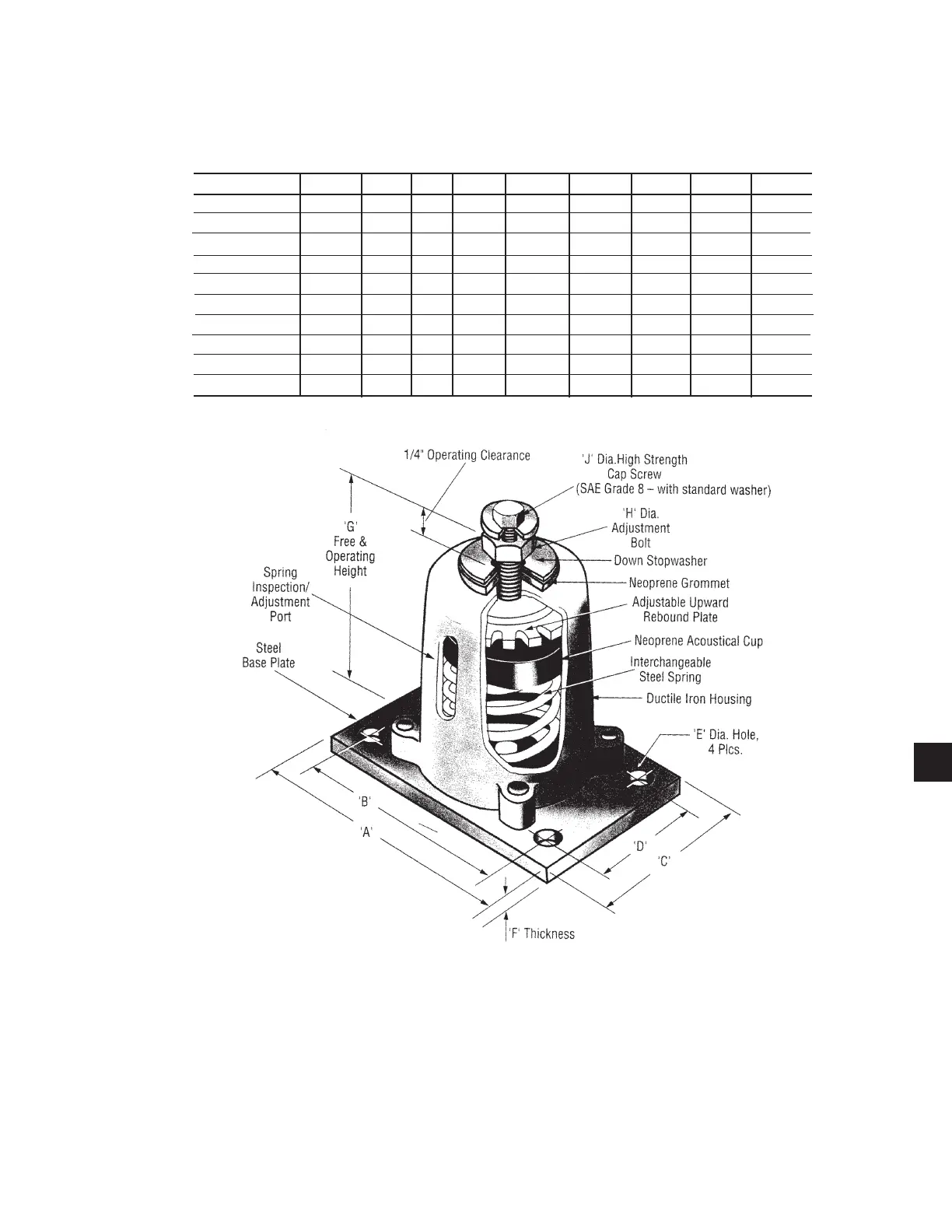

FIG. 36 – R SPRING SEISMIC ISOLATOR
5
MODEL # A B C D E F G H J
AEQM-95 7 5-1/2 4-1/2 2-1/2 5/8 1/4 7-1/4 5/8 3/8
AEQM-96 7 5-1/2 4-1/2 2-1/2 5/8 1/4 7-1/4 5/8 3/8
AEQM-97 7 5-1/2 4-1/2 2-1/2 5/8 1/4 7-1/4 5/8 3/8
AEQM-98 7 5-1/2 4-1/2 2-1/2 5/8 1/4 7-1/4 5/8 3/8
AEQM-99 7 5-1/2 4-1/2 2-1/2 5/8 1/4 7-1/4 5/8 3/8
AEQM-1000 8-1/2 6-1/2 6 4-1/2 3/4 3/8 8-3/8 7/8 1/2
AEQM-1300 8-1/2 6-1/2 6 4-1/2 3/4 3/8 8-3/8 7/8 1/2
AEQM-1600 8-1/2 6-1/2 6 4-1/2 3/4 3/8 8-3/8 7/8 1/2
AEQM-1625 8-1/2 6-1/2 6 4-1/2 3/4 3/8 8-3/8 7/8 1/2
AEQM-1628 8-1/2 6-1/2 6 4-1/2 3/4 3/8 8-3/8 7/8 1/2
