Johnson Controls York YCAL0014E Series User Manual

JOHNSON CONTROLS
55
FORM 150.62-NM6 (103)
2229
38
38
1308
235
940
262
(* 1993) (** 1866) (*** 1866)
BA
DC
229
654
737
(* 3") (** 4")
(* 266) (** 291) (*** 285) (*1727) (** 1842)
373 2043
2670
X
Z
C
G

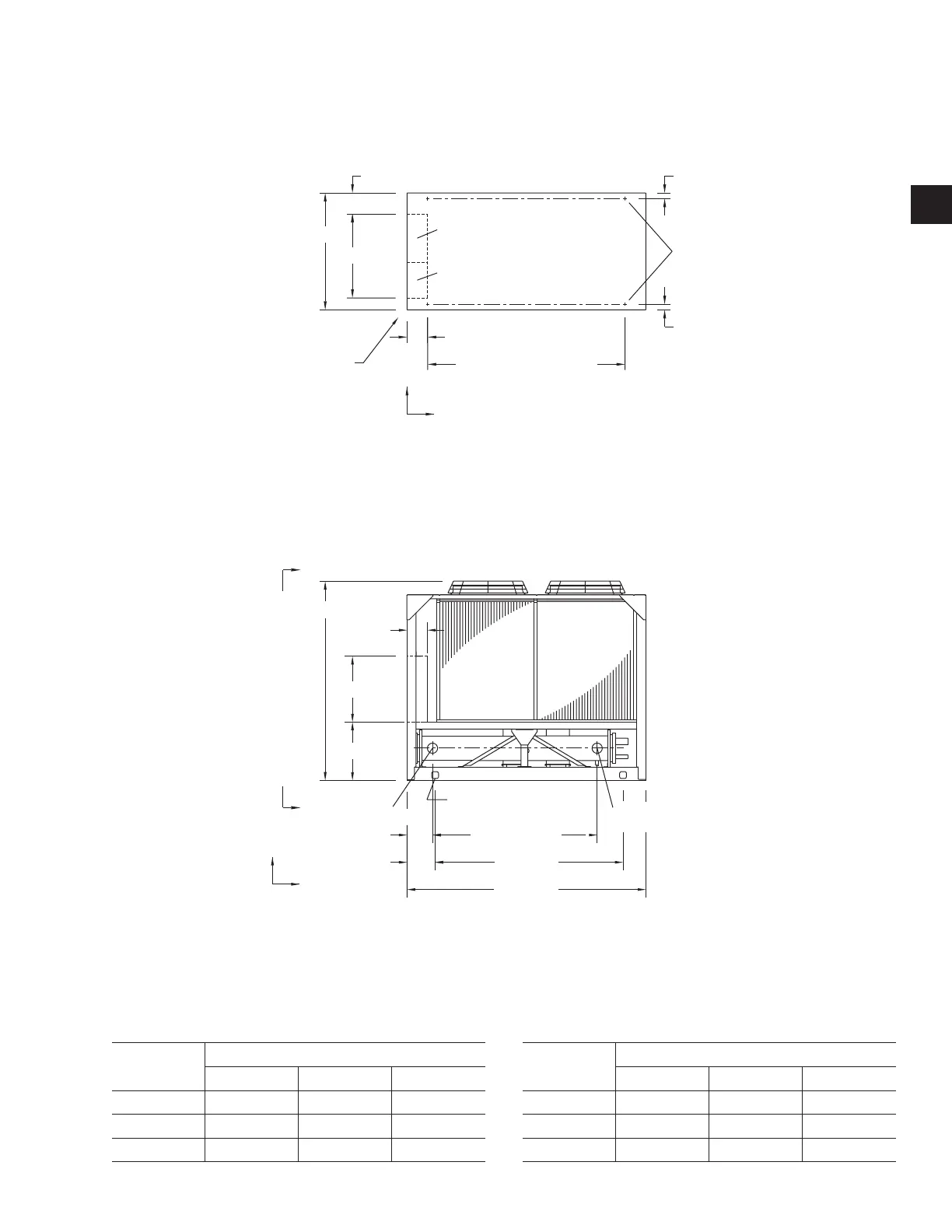

SIDE VIEW
HOLES (EACH SIDE)
(2) 76 X 76 RIGGING
(*3") (** 4")
WATER INLET
WATER OUTLET
A
A
ORIGIN
X
G
C
Y
TOP VIEW
19 DIA.
MOUNTING
HOLES (TYP.)
CONTROL PANEL
POWER PANEL
LD07734
* Refers to Model YCAL0024
** Refers to Model YCAL0030 and YCAL0034
ALUMINUM
COPPER
1
YCAL
Center of Gravity (mm)
X Y Z
0024 1142 619 897
0030 1144 620 887
0034 1142 646 860
YCAL
Center of Gravity (mm)
X Y Z
0024 1162 623 919
0030 1163 623 909
0034 1160 647 882
