6.5.2 Control Printed Circuit Board

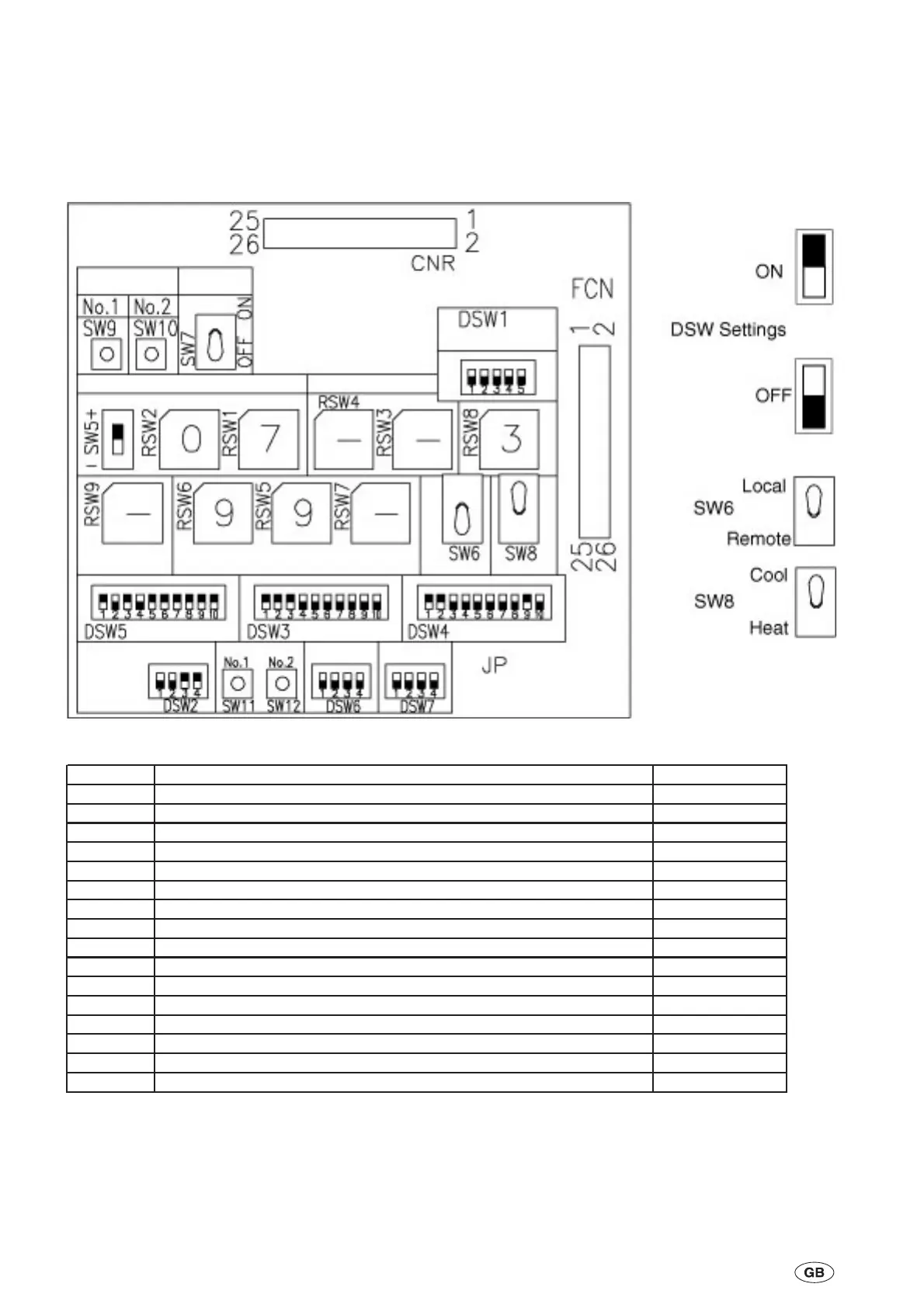

The Control Printed Circuit Board contains various switches for setting the unit control parameters.
6-8
035-21786-100 Rev. 1 (0909)
Switch Function Factory Default
RSW 1 Chilled Water Outlet Temperature Setting Switch 7
RSW 2 Chilled Water Outlet Temperature Setting Switch 0
RSW 3 Hot Water Outlet Temperature Setting Switch (heat pump option only) 5
RSW 4 Hot Water Outlet Temperature Setting Switch (heat pump option only) 4
RSW 5 Not Used N/A
RSW 6 Not Used N/A
RSW 7 Not Used N/A
RSW 8 Neutral Zone Setting Switch. 2 °C is standard. 3
RSW 9 Not Used N/A
SW 6 Local/Remote Changeover Switch. (Up:Local, Down:Remote) Local
SW 7 Local/Remote Pump Operation (Up:Local, Down:Remote) Remote
SW 8 Cooling/ Heating Operation Switch (Up:Cool, Down:Heat) Cool
SW 9 Not Used N/A
SW 10 Not Used N/A
SW 11 Not Used N/A
SW 12 Not Used N/A
