Johnson Controls York ZH Series User Manual

5167515-YIM-H-0518
10 Johnson Controls Ducted Systems

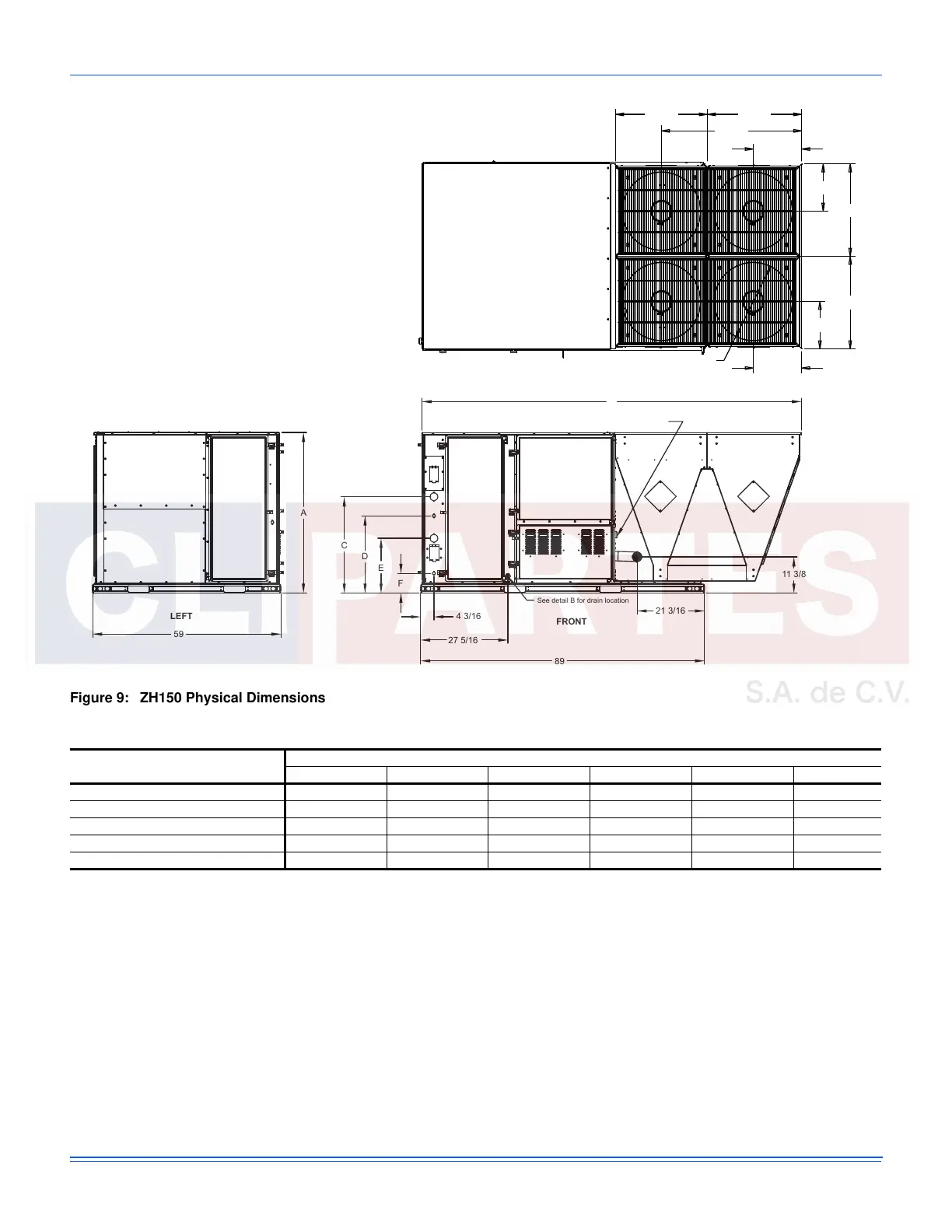

Figure 9: ZH150 Physical Dimensions
15.23
29.03
14.85
29.03
14.85
15.23
28.86 29.66
44.09
Ø 24.58 TYP. 4 PL.
FRONT
See detail B for drain location
See detail A for gas inlet
C
D
E
F
B
4 3/16
27 5/16
89
21 3/16
11 3/8
A
LEFT
59
Table 4: ZH078-150 Unit Physical Dimensions
Unit Model Number
Dimension (in.)
ABCDEF
ZH078 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZH090 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZH102 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZH120 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZH150 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16
