Johnson Controls York ZH Series User Manual

5167515-YIM-H-0518
14 Johnson Controls Ducted Systems

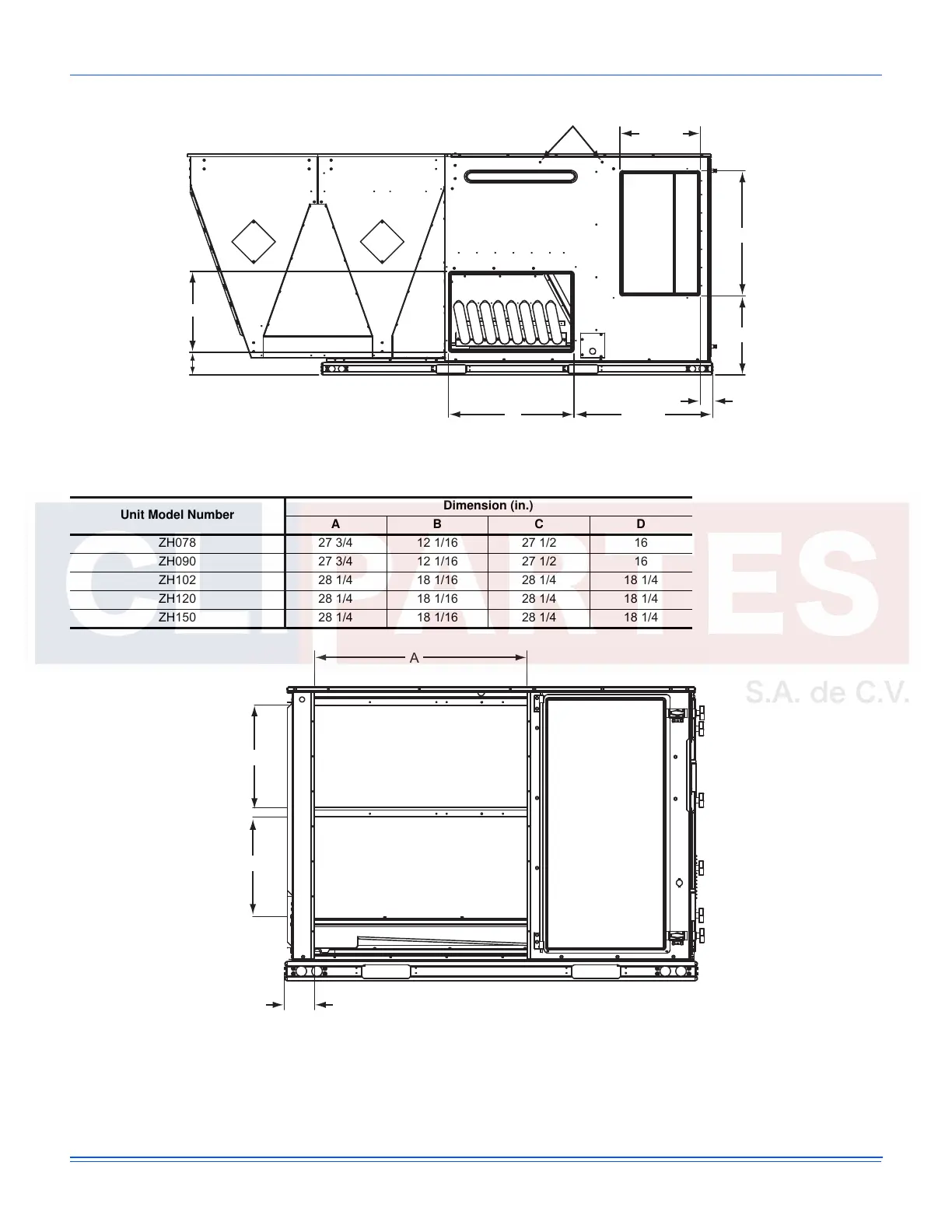

Figure 13: ZH150 Unit Side Duct Openings
Figure 14: ZH078-150 Unit Left/End Duct Opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZH078 27 3/4 12 1/16 27 1/2 16
ZH090 27 3/4 12 1/16 27 1/2 16
ZH102 28 1/4 18 1/16 28 1/4 18 1/4
ZH120 28 1/4 18 1/16 28 1/4 18 1/4
ZH150 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
C
B
