Johnson Controls York ZH Series - Electrical Entry and Side Duct Openings; Electrical Entry Diagram; Side Duct Openings Diagram

5167515-YIM-H-0518
Johnson Controls Ducted Systems 13

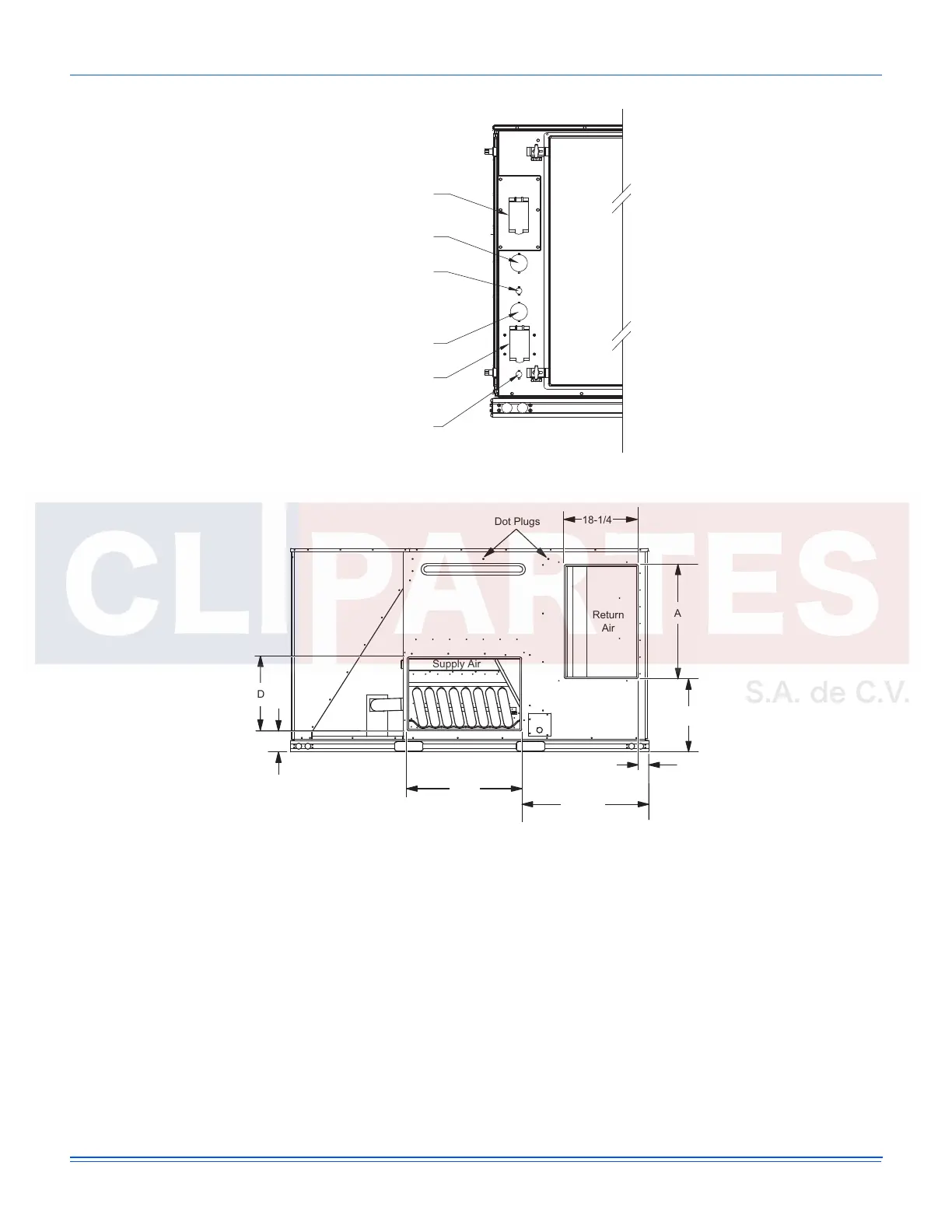

Figure 11: ZH078-150 Unit Electrical Entry
Figure 12: ZH078-120 Unit Side Duct Openings
Disconnect Swith Cover
Power Entry Ø 2-1/2
Control Entry Ø 7/8
Power Entry Ø 2-1/2
Convenience Outlet Cover
Convenience Outlet
Power Entry Ø 7/8
FRONT
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
