Johnson Controls York ZH Series User Manual

5167515-YIM-H-0518
8 Johnson Controls Ducted Systems
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60 INCHES.

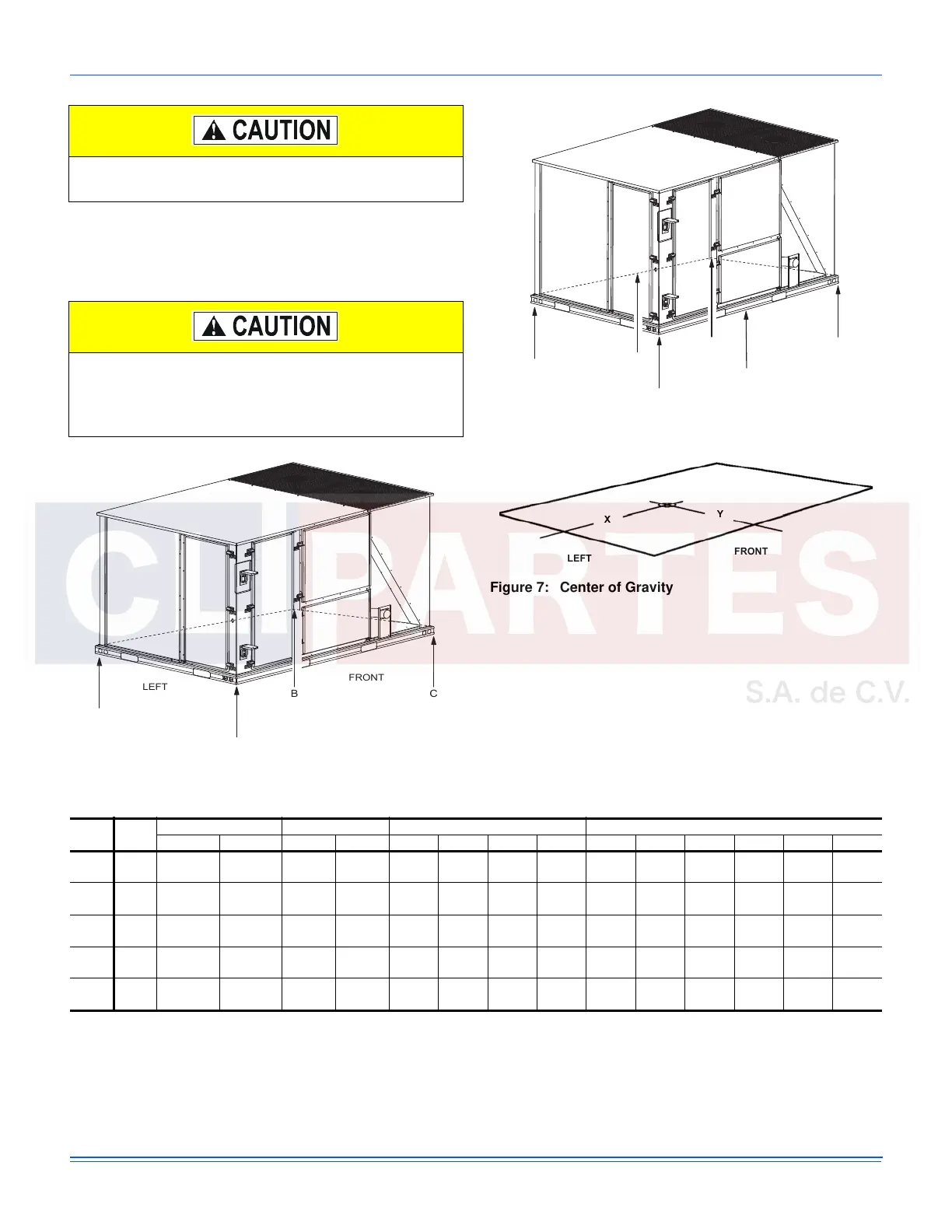

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
078
(6.5)
ZH 915 910 38 24 212 158 230 309 149 121 100 147 177 217
090
(7.5)
ZH 915 910 38 24 212 158 230 309 149 121 100 147 177 217
102
(8.5)
ZH 1052 1047 38 24 244 182 265 356 171 139 116 169 203 249
120
(10)
ZH 1095 1090 38 24 254 189 276 371 178 145 120 176 211 260
150
(12.5)
ZH 1285 1280 48 24 240 281 410 350 156 173 192 280 252 227
