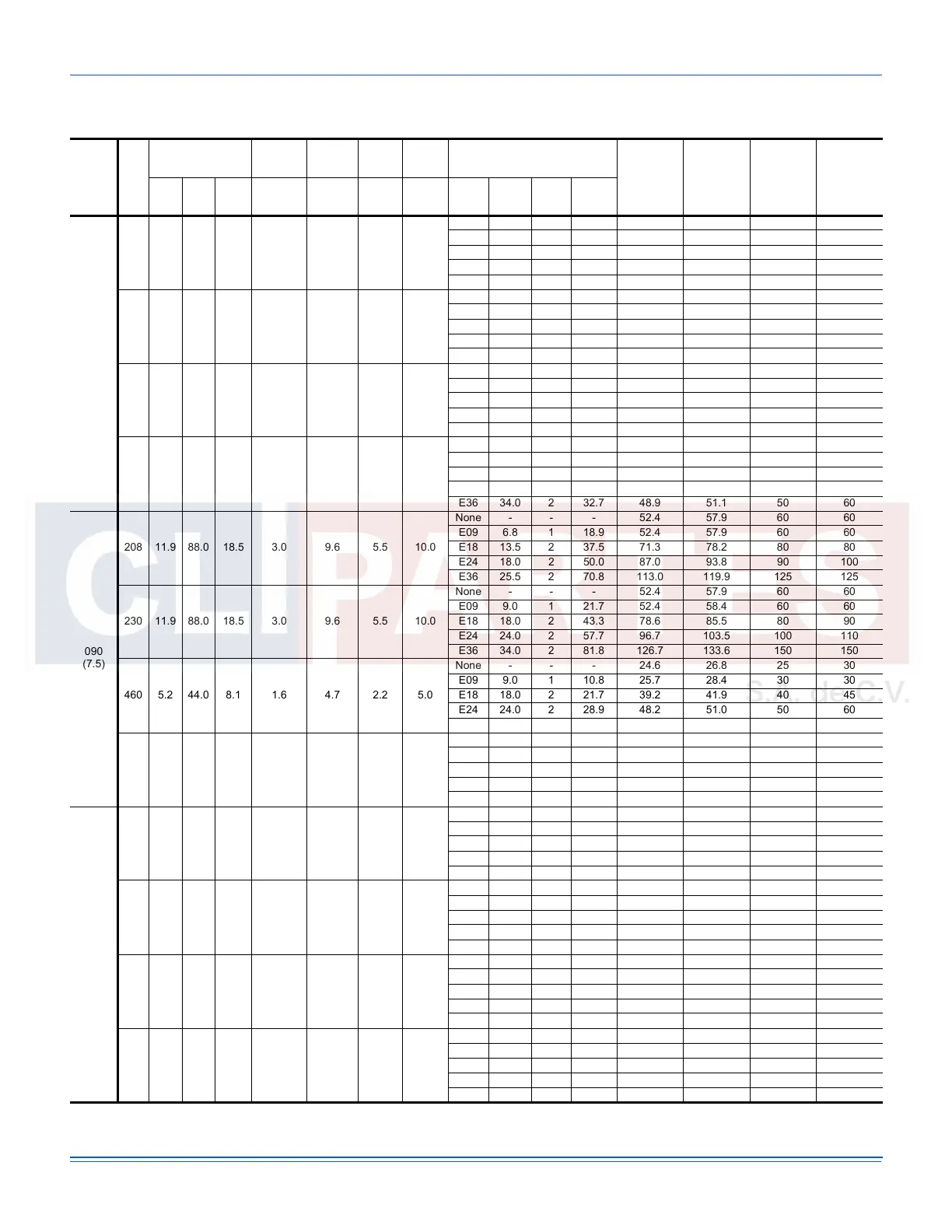

ZH078-150 Hi Static Motor - With Powered Convenience Outlet
Size
(Tons)
Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Exh
Motor
Pwr
Conv
Outlet
Electric Heat Option
MCA
1
(Amps)
MCA
1
w/Pwr
Exh
(Amps)
Max Fuse
2
/
Breaker
3
Size
(Amps)
Max Fuse
2
/
Breaker
3
Size w/ Pwr
Exh
(Amps)
RLA LRA MCC FLA FLA FLA FLA Model kW Stages Amps
078
(6.5)
208 9.6 68.0 14.5 2.1 6.8 5.5 10.0
None - - - 42.7 48.2 50 50
E09 6.8 1 18.9 44.6 51.5 50 60
E18 13.5 2 37.5 67.8 74.7 70 80
E24 18.0 2 50.0 83.5 90.3 90 100
E36 25.5 2 70.8 109.5 116.4 110 125
230 9.6 68.0 14.5 2.1 6.8 5.5 10.0
None - - - 42.7 48.2 50 50
E09 9.0 1 21.7 48.1 54.9 50 60
E18 18.0 2 43.3 75.1 82.0 80 90
E24 24.0 2 57.7 93.2 100.0 100 100
E36 34.0 2 81.8 123.2 130.1 125 150
460 4.9 34.0 7.7 1.3 3.4 2.2 5.0
None - - - 22.0 24.2 25 25
E09 9.0 1 10.8 24.0 26.8 25 30
E18 18.0 2 21.7 37.6 40.3 40 45
E24 24.0 2 28.9 46.6 49.3 50 50
E36 34.0 2 40.9 61.6 64.4 70 70
575 3.8 28.0 6.0 0.7 2.4 1.8 4.0
None - - - 16.3 18.1 20 20
E09 9.0 1 8.7 18.8 21.1 20 25
E18 18.0 2 17.3 29.7 31.9 30 35
E24 24.0 2 23.1 36.9 39.1 40 40
E36 34.0 2 32.7 48.9 51.1 50 60
090
(7.5)
208 11.9 88.0 18.5 3.0 9.6 5.5 10.0
None - - - 52.4 57.9 60 60
E09 6.8 1 18.9 52.4 57.9 60 60
E18 13.5 2 37.5 71.3 78.2 80 80
E24 18.0 2 50.0 87.0 93.8 90 100
E36 25.5 2 70.8 113.0 119.9 125 125
230 11.9 88.0 18.5 3.0 9.6 5.5 10.0
None - - - 52.4 57.9 60 60
E09 9.0 1 21.7 52.4 58.4 60 60
E18 18.0 2 43.3 78.6 85.5 80 90
E24 24.0 2 57.7 96.7 103.5 100 110
E36 34.0 2 81.8 126.7 133.6 150 150
460 5.2 44.0 8.1 1.6 4.7 2.2 5.0
None - - - 24.6 26.8 25 30
E09 9.0 1 10.8 25.7 28.4 30 30
E18 18.0 2 21.7 39.2 41.9 40 45
E24 24.0 2 28.9 48.2 51.0 50 60
E36 34.0 2 40.9 63.2 66.0 70 70
575 4.8 36.0 7.5 1.4 3.6 1.8 4.0
None - - - 21.1 22.9 25 25
E09 9.0 1 8.7 21.1 22.9 25 25
E18 18.0 2 17.3 31.2 33.4 35 35
E24 24.0 2 23.1 38.4 40.6 40 45
E36 34.0 2 32.7 50.4 52.6 60 60
102
(8.5)
208 12.2 88.0 19.0 3.0 9.6 5.5 10.0
None - - - 53.1 58.6 60 70
E09 6.8 1 18.9 53.1 58.6 60 70
E18 13.5 2 37.5 71.3 78.2 80 80
E24 18.0 2 50.0 87.0 93.8 90 100
E36 25.5 2 70.8 113.0 119.9 125 125
230 12.2 88.0 19.0 3.0 9.6 5.5 10.0
None - - - 53.1 58.6 60 70
E09 9.0 1 21.7 53.1 58.6 60 70
E18 18.0 2 43.3 78.6 85.5 80 90
E24 24.0 2 57.7 96.7 103.5 100 110
E36 34.0 2 81.8 126.7 133.6 150 150
460 5.8 44.0 9.0 1.6 4.7 2.2 5.0
None - - - 26.0 28.2 30 30
E09 9.0 1 10.8 26.0 28.4 30 30
E18 18.0 2 21.7 39.2 41.9 40 45
E24 24.0 2 28.9 48.2 51.0 50 60
E36 34.0 2 40.9 63.2 66.0 70 70
575 4.4 36.0 5.5 1.4 3.6 1.8 4.0
None - - - 20.2 22.0 25 25
E09 9.0 1 8.7 20.3 22.6 25 25
E18 18.0 2 17.3 31.2 33.4 35 35
E24 24.0 2 23.1 38.4 40.6 40 45
E36 34.0 2 32.7 50.4 52.6 60 60
