Johnson Controls YORK - Rigging and Site Preparation; Rigging and Lifting Guidelines

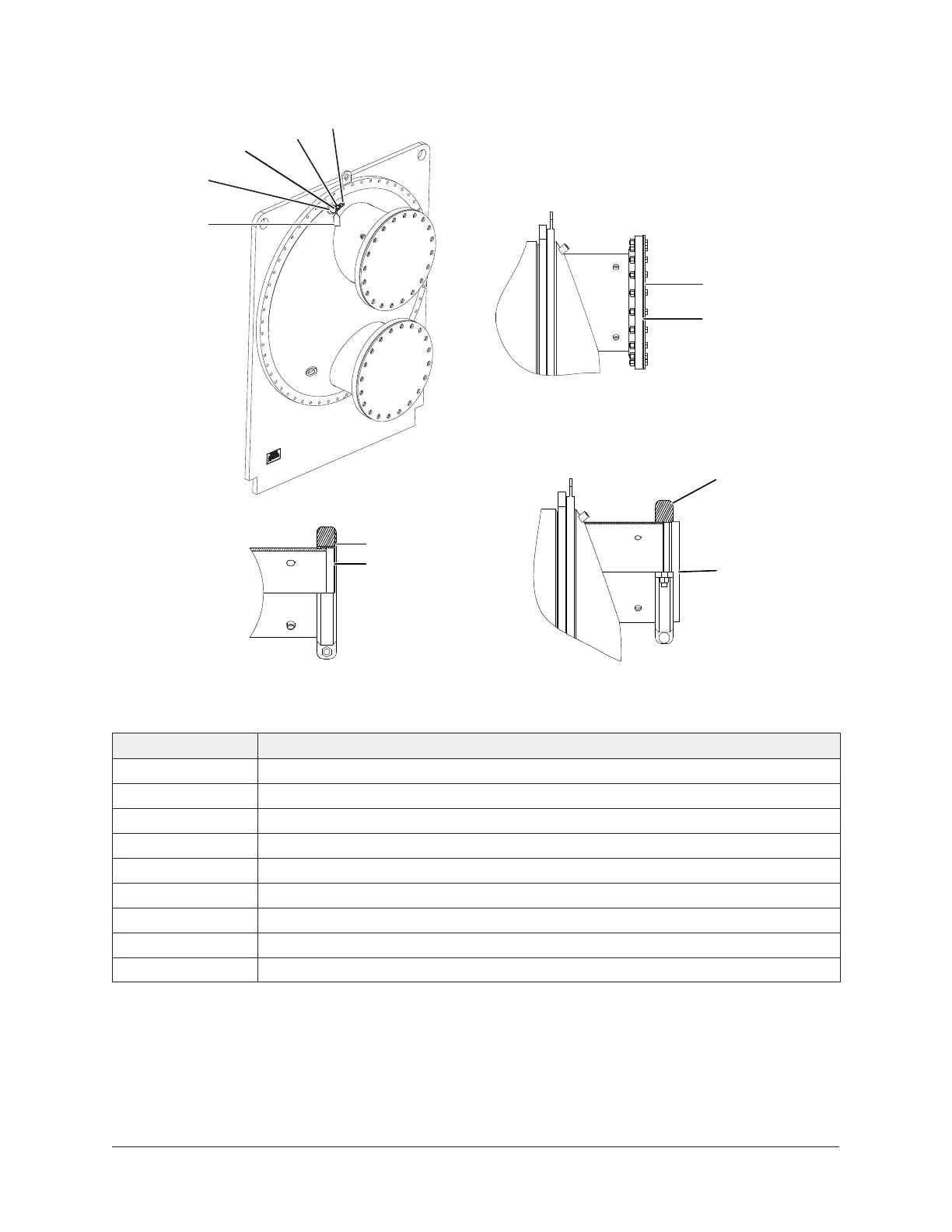

Figure 2: Long term storage - tube side
LD29123a
Nozzle with flange
150 lb and 300 lb closures
1
2
3
4
5
6
7
Nozzle without flanges
(Lines 4 in. through 12 in.)
Nozzle without flanges
(Lines 14 in. through 24 in.)
8
9
8
9
Item Description
1 Tag Warning Dennison 8E
2 Gauge Press 2 Dia 0-30
3 Tag GlvSt Wire Speed
4 Bush Pipe 3/4 - 14 NPTE X
5 Valve, Transducer 1/4 NPTE X
6 Flange Cover
7 Gasket
8 Victaulic Coupling
9 Sealing Cap
Relieve pressure as follows:
1. Check the working space to make sure that it is open and has a good ventilation; if not,
connect a hose or pipe to the valve (Item 5) and route it to outside.
2. Slowly open the valve (Item 5) until fully opened.
11Centrifugal Liquid Chillers
