Johnson Controls ZY Series User Manual

ZY04-12 unit weights

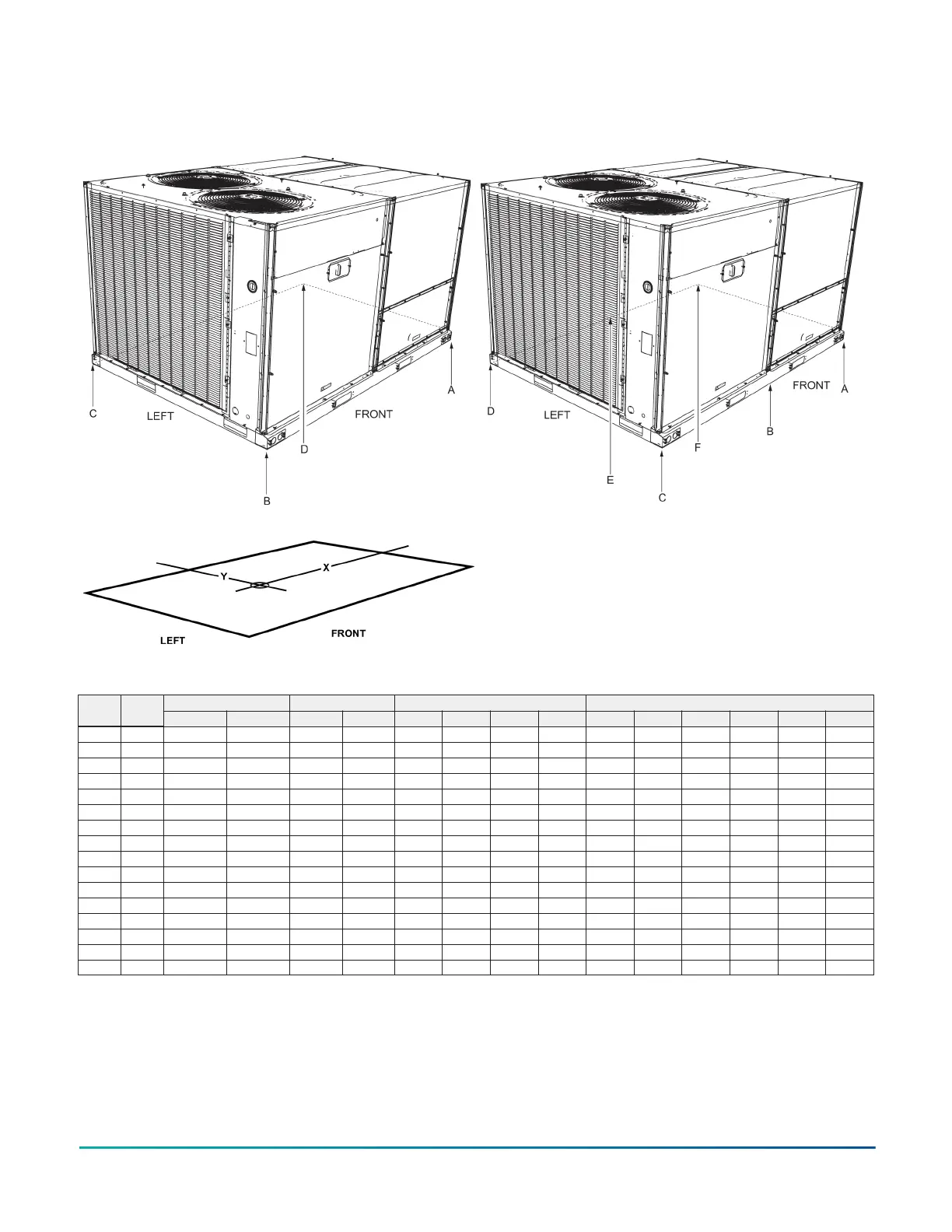

Figure 8: Unit 4 Point Load Weight
Figure 9: Unit 6 Point Load Weight
Figure 10: Center of Gravity
Table 2: ZY04-12 Corner Weights
Weight (lb) Center of Gravity 4 Point Load Location (lb) 6 Point Load Location (lb)
Model
Size
(Tons)
Shipping Operating X Y A B C D A B C D E F
ZYE 04 (3) 486 481 36 25 127 118 113 122 86 82 78 75 78 82
ZYE 05 (4) 569 564 36 25 145 140 137 142 97 95 93 91 93 95
ZYE 06 (5) 587 582 36 25 151 145 140 146 101 99 96 93 95 98
ZYE 07 (6) 730 725 44 36 206 211 156 153 137 139 141 104 103 101
ZYE A7 (6) 849 829 45.0 35.3 229 244 183 172 151 158 165 124 118 113
ZYE 08 (7.5) 873 868 46 36 236 268 193 171 154 167 182 132 121 111
ZYE 09 (8.5) 878 878 46 36 241 265 195 177 158 168 180 132 124 116
ZYE 12 (10) 907 902 47 36 239 278 207 178 155 171 190 142 128 116
ZYG 04 (3) 532 527 36 27 147 136 117 126 99 94 90 77 81 85
ZYG 05 (4) 623 618 36 26 167 156 142 152 113 108 103 94 98 103
ZYG 06 (5) 641 636 35 26 174 159 144 159 118 111 104 95 101 108
ZYG 07 (6) 800 795 43 37 237 233 161 164 159 157 155 107 108 109
ZYG A7 (6) 919 899 45.0 35.3 249 265 199 187 164 171 179 134 128 123
ZYG 08 (7.5) 975 970 44 37 287 294 197 193 191 193 196 132 130 128
ZYG 09 (8.5) 980 980 45 36 279 292 209 200 184 190 196 141 136 132
ZYG 12 (10) 1013 1008 45 36 285 300 217 206 189 195 202 146 141 136
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A14
Johnson Controls Ducted Systems
