Johnson Controls ZY Series User Manual

ZY04 to 12 Side Duct Application (Belt Drive)

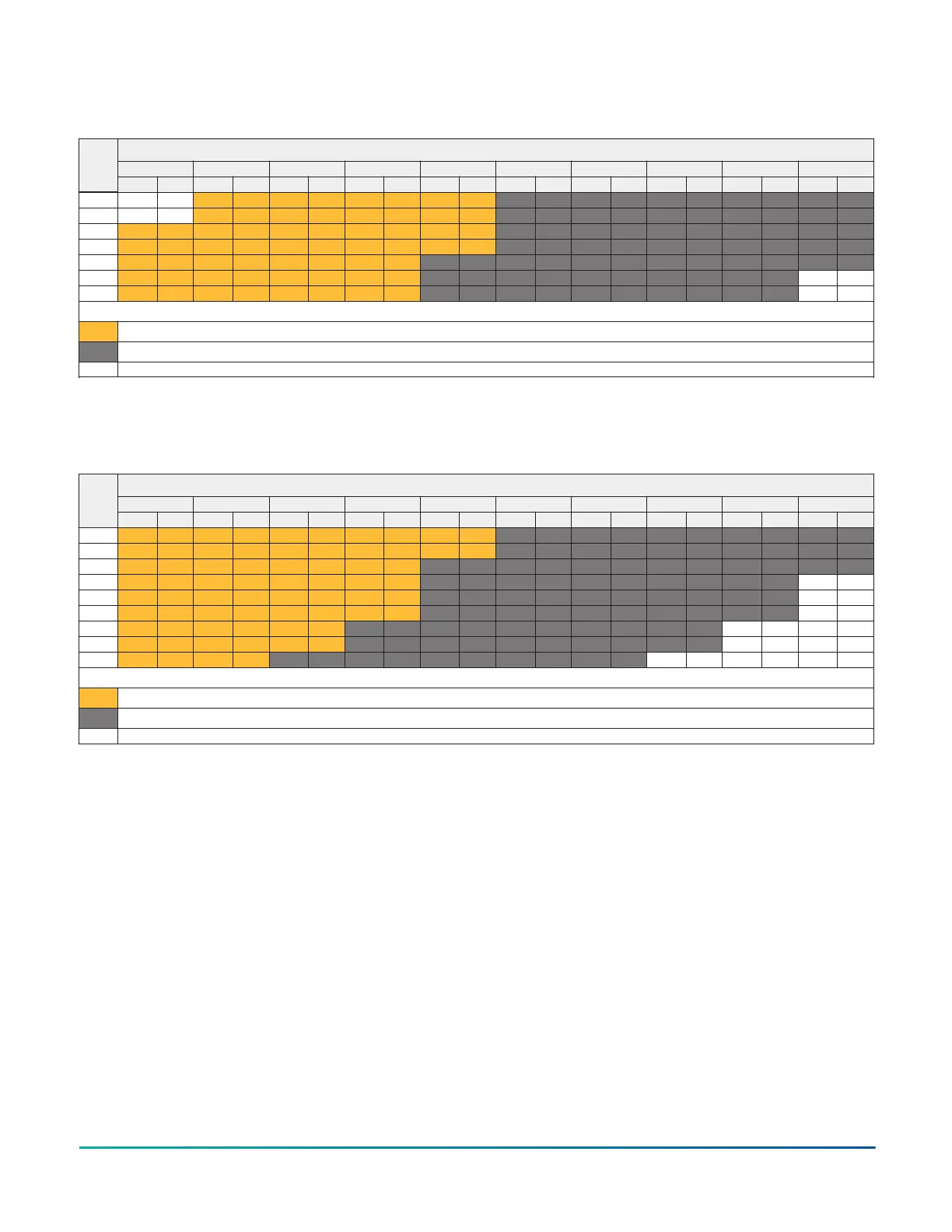

Table 32: ZY04 (3.0 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
900 n/a n/a 874 0.31 972 0.40 1065 0.50 1153 0.60 1236 0.70 1315 0.80 1390 0.89 1460 0.97 1526 1.05
1000 n/a n/a 887 0.36 985 0.45 1078 0.55 1165 0.65 1249 0.75 1328 0.85 1402 0.94 1472 1.03 1539 1.10
1100 797 0.33 900 0.42 998 0.51 1091 0.61 1179 0.71 1263 0.81 1341 0.91 1416 1.00 1486 1.08 1553 1.16
1200 813 0.40 916 0.48 1014 0.57 1107 0.67 1195 0.77 1279 0.87 1357 0.97 1432 1.06 1502 1.15 1569 1.22
1300 831 0.46 935 0.55 1033 0.64 1126 0.74 1214 0.84 1297 0.94 1376 1.03 1450 1.13 1520 1.21 1583 1.28
1400 852 0.53 956 0.61 1054 0.71 1146 0.80 1234 0.90 1318 1.00 1396 1.10 1471 1.19 1541 1.28 -- --
1500 876 0.59 979 0.68 1077 0.77 1170 0.87 1258 0.97 1341 1.07 1420 1.17 1494 1.26 1565 1.34 -- --
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 2.9-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
Table 33: ZY05 (4.0 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1200 840 0.30 927 0.41 1012 0.53 1096 0.65 1177 0.77 1257 0.89 1334 1.01 1411 1.12 1485 1.22 1558 1.31
1300 857 0.35 944 0.47 1029 0.59 1112 0.71 1194 0.83 1273 0.95 1351 1.07 1427 1.18 1502 1.28 1574 1.37
1400 875 0.42 962 0.53 1048 0.65 1131 0.77 1212 0.89 1292 1.01 1370 1.13 1446 1.24 1520 1.34 1593 1.43
1500 897 0.49 984 0.60 1069 0.72 1152 0.84 1233 0.96 1313 1.08 1391 1.20 1467 1.31 1542 1.41 -- --
1600 921 0.56 1008 0.67 1093 0.79 1176 0.91 1258 1.04 1337 1.16 1415 1.27 1491 1.38 1566 1.49 -- --
1700 948 0.64 1035 0.76 1120 0.87 1204 1.00 1285 1.12 1365 1.24 1442 1.36 1518 1.47 1593 1.57 -- --
1800 979 0.73 1066 0.85 1151 0.96 1234 1.08 1315 1.21 1395 1.33 1473 1.44 1549 1.56 -- -- -- --
1900 1012 0.83 1099 0.94 1185 1.06 1268 1.18 1349 1.30 1429 1.42 1507 1.54 1583 1.65 -- -- -- --
2000 1049 0.93 1136 1.04 1222 1.16 1305 1.28 1386 1.40 1466 1.52 1544 1.64 -- -- -- -- -- --
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 2.9-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A86
Johnson Controls Ducted Systems
