CHAPTER 3: Electrical Connection System
16

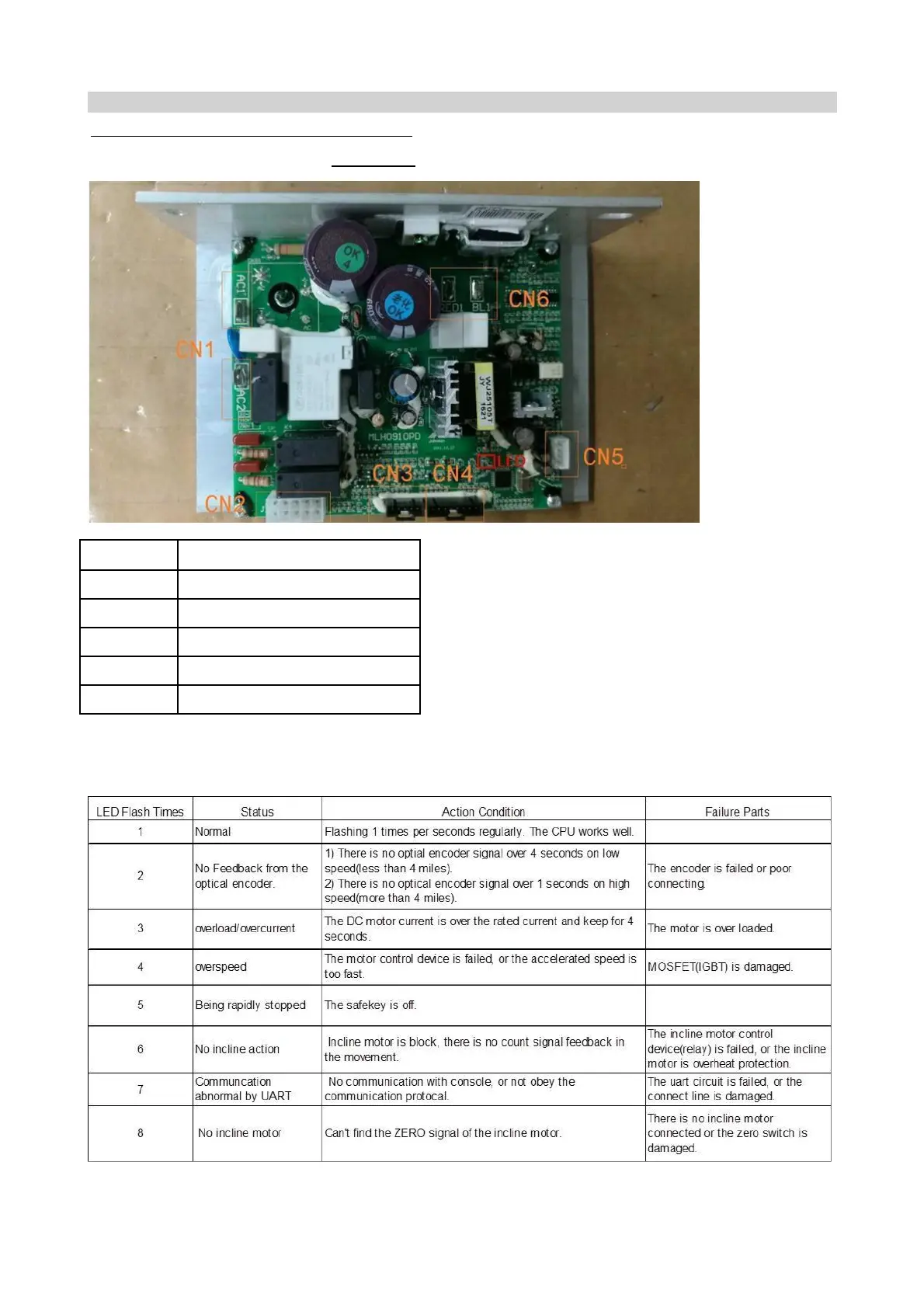

3.3 MCB CIRCUIT BOARD INSTRUCTIONS
5.9AT MCB
CN1
Power Line
CN2
Incline motor power cable
CN3
Speed sensor cable
CN4
Console set cable
CN5
Software burning cable
CN6
Drive motor cable
MCB LED Configure
