CHAPTER 6: Part Replacement Guide

6.1 MOTOR REPLACEMENT

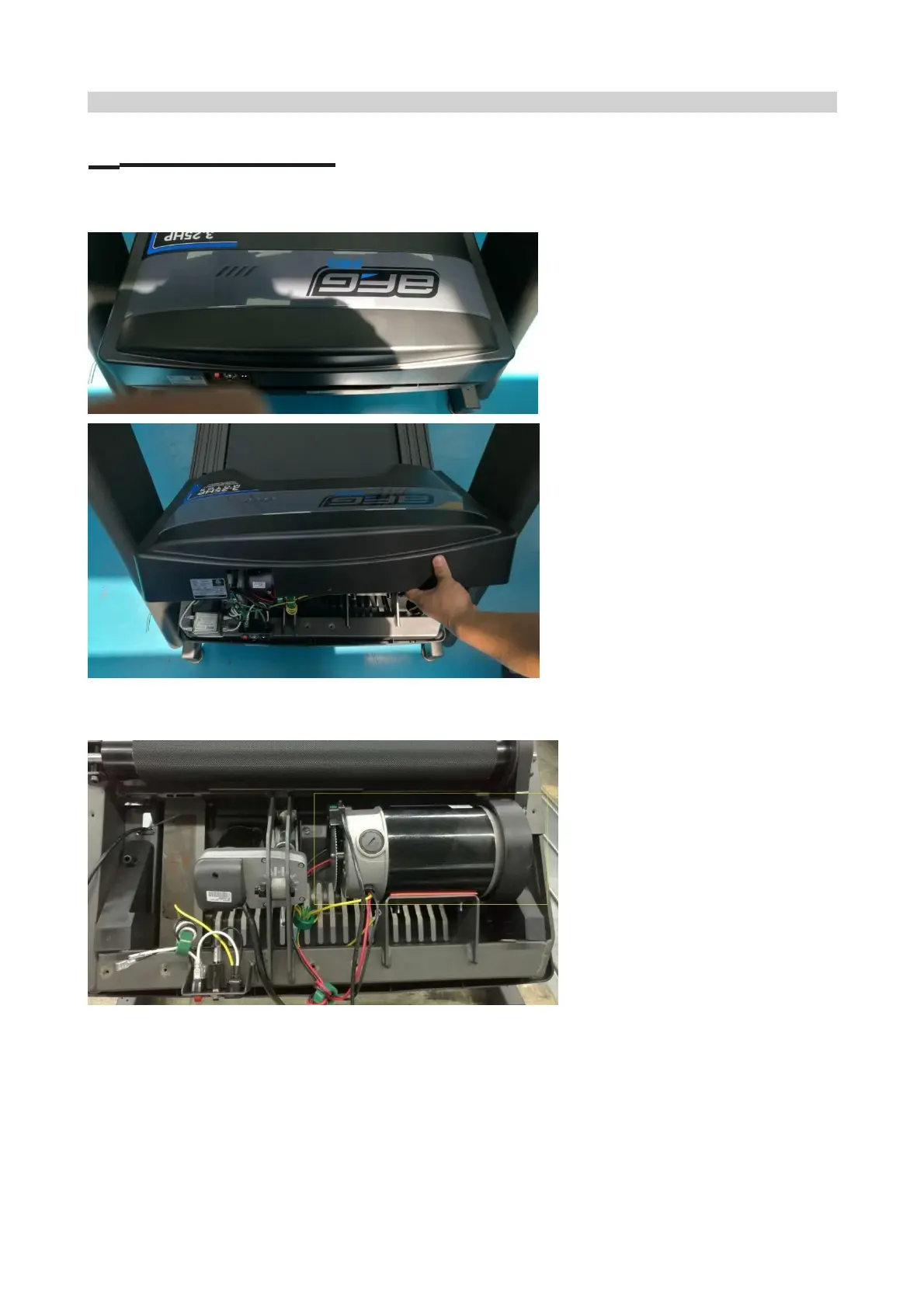

1) Remove the 4 screws holding the motor cover to the frame (Fig-1).

2) Pull up the cover from frame (Fig-2)

3) Fig-3 shows the motor area with the motor cover removed.

4) Reverse Steps 1-3 to install a new motor cover.

5) confirm drive belt tension is correct after replacing motor (see section 4.5)

Fig-1

Fig-2

Fig-3
