CHAPTER 6: Part Replacement Guide
33
6.9 INCLINE MOTOR REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the motor cover as outlined in Section 4.1
3) Lift the treadmill and support it so that the front wheels are off the floor.

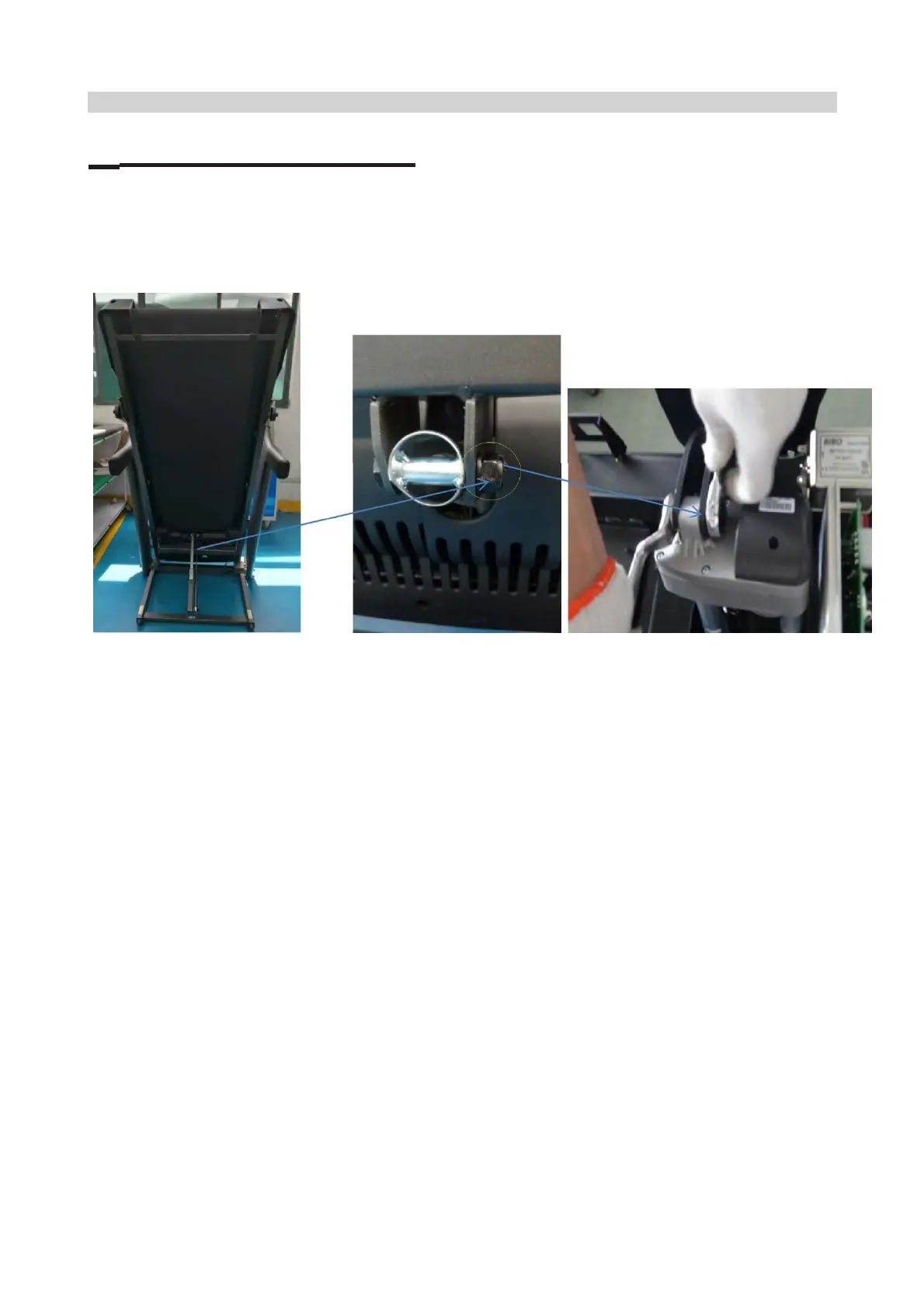

4) Remove the screws from the elevation rack (Fig-1&2)
Fig-1 & 2 Fig- 3
5) Disconnect the incline motor from the top mounting bracket (Fig-3).
6) Reverse Steps 1-5 to install a new incline motor.
NOTE: When installing a new incline motor, make sure to replace the white nylon washers at the top
and bottom connection points of the incline motor.
