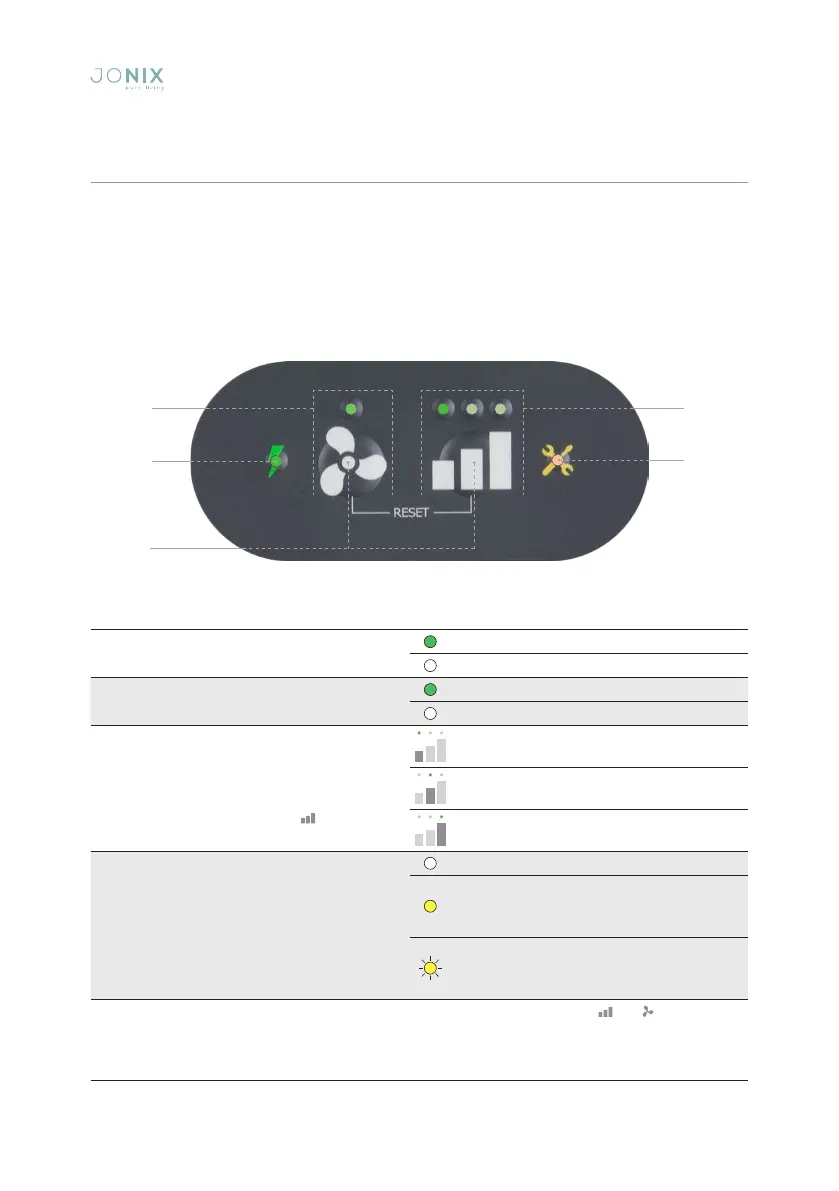

6.7 CONTROL PANEL
The device control panel consists of:
• 2 control keys.
• 6 status indication LEDs.
The integrated control electronics allows operating the device at 3 different timing levels.
01 Power indicator LED
Device On
Device Off
02 Enable / disable the fan
Fan on
Fan off
03
Timing level key
Remark: the operating level is indicated by
the corresponding led. To switch to the next
level, press the push-button .
Enabling level 1 (minimum): 2’ On – 8’ Off
Enabling level 2 (average): 4’ On – 6’ Off
Enabling level 3 (maximum): 7’ On – 3’ Off
04 Maintenance Warning LED
No warning
Device cleaning required warning
(every 840 of actual operation of the ionizing
tubes)
Ioniser replacement required warning
(every 8740 of actual operation of the ionizing
tubes)
05 Maintenance Warning Reset Key
To reset, keep the keys and pressed for
5”: all the LEDs will go off and the timer will be
reset. When both keys are released, standard
operation is resumed.
