ELECTRICAL SYSTEM
English – 25
Replacing the heating element in the tank unit
1. Remove the rear hand grip insert. See fig. 18.
2. Remove the cable connections. See fig. 18.
3. Fit the heating element and cable connections.

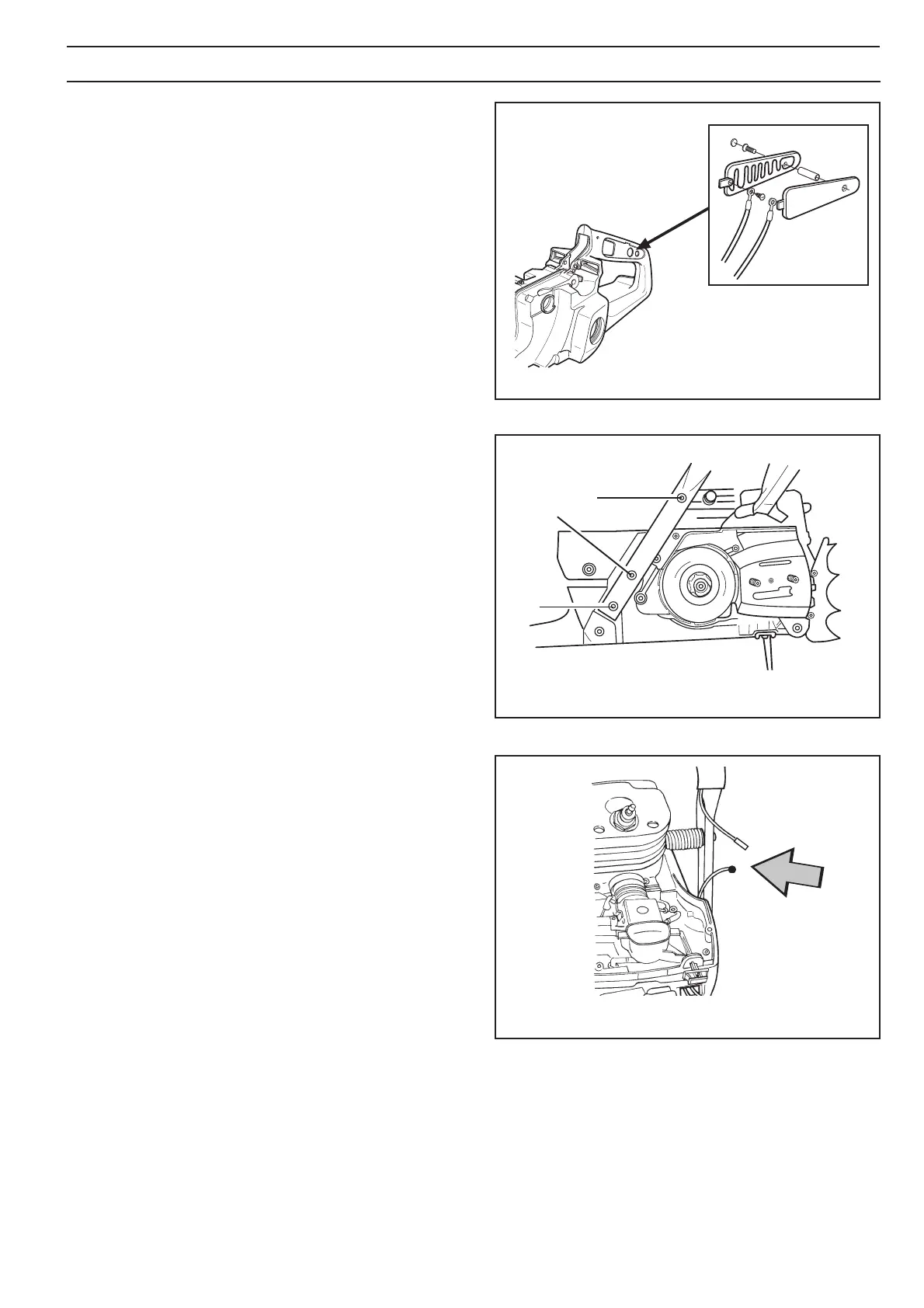

Fig. 18
Fig. 19
A
C
B
D
Fig. 20
Replacing the front hand grip
1. Release the two cable clips beside the spring. See fig. 20.
2. Remove the five bolts (A, B, C and D) which hold the
front hand grip. See fig. 19.
3. Fit the new front hand grip by screwing in the five bolts
(A, B, C and D). Tighten the bolts to 4 Nm. See fig. 19.
4. Connect the two cables. See fig. 20.
