138344_Rev_D - C450 Kennebec 8.2.10
Installing the Firebox
1. If appropriate, use 3” flexible noncombustible
duct to connect an outside air inlet to the air inlet
collar at the back of the firebox.
2. With assistance, move the firebox into position
within the fireplace and align the insert flue collar
with the Adaptor Collar.
3. Attach the flue connector pipe. Use a 1/8” bit to
drill attachment holes into connector pipe at the
three pilot hole locations in the firebox flue collar.
Secure the flue connector pipe using three,
#10 x 1/2” sheet metal screws.
4. Adjust the position of the Firebox to ensure that
the Surround Panel Hangers are flush with, or
slightly proud of, the outside face of the fireplace.
If the Hangers are set back from the face, you will
be unable to engage the Surround Hanger Clips
with the holes in the Hangers.
Attach
Fireplace
Conversion
Notice Plate
to Rear Wall
of Fireplace

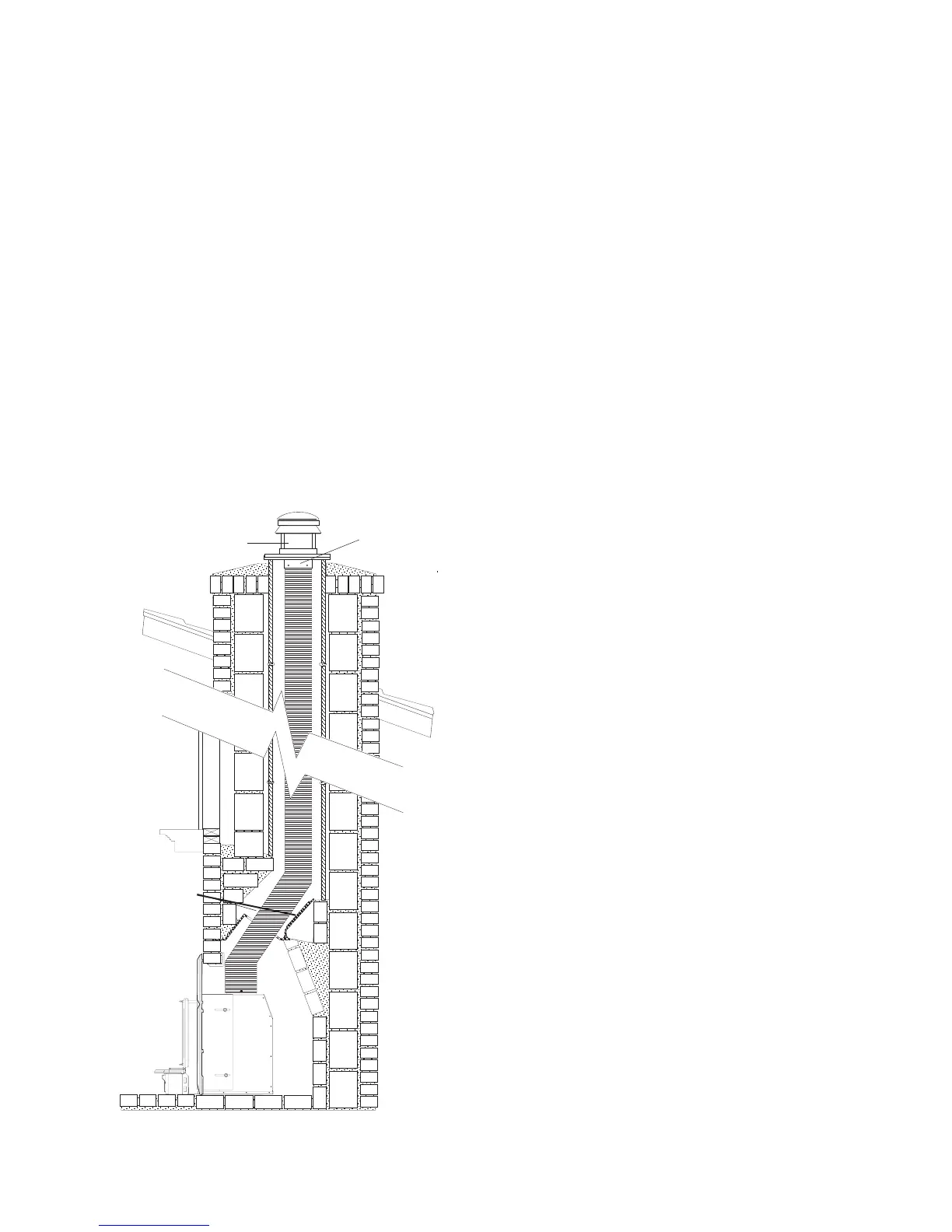

Figure 11a. Positive Chimney Connection - Canada.
Masonry or Listed
HT Prefabricated
Chimney Cap
Sealed connec-
tion to chimney
cap
Damper linkage
removed and
plate is removed
or locked open
