Minimum Clearances
Clearances are measured from the hearth surface,
door opening, or centerline as noted below.
A: Hearth Protection, width from centerline ...........
.............................................................. 20” (508 mm)
B: Hearth Protection, forward from the door opening
. .......................................................................................
................................................................18” (457 mm)
C: Side Trim, 1” max. thickness, from centerline .......
............................................................... 20 3/4” (527 mm)
D: Side Room Wall .........................44 1/4” (1124 mm)
E: Mantel- with no Heat Shield:
3 1/2” (90 mm) ............................ 49 1/2” (1257 mm)
F: Mantel- with no Heat Shield:
12” (304 mm) max. depth - 55 1/2” (1410 mm)

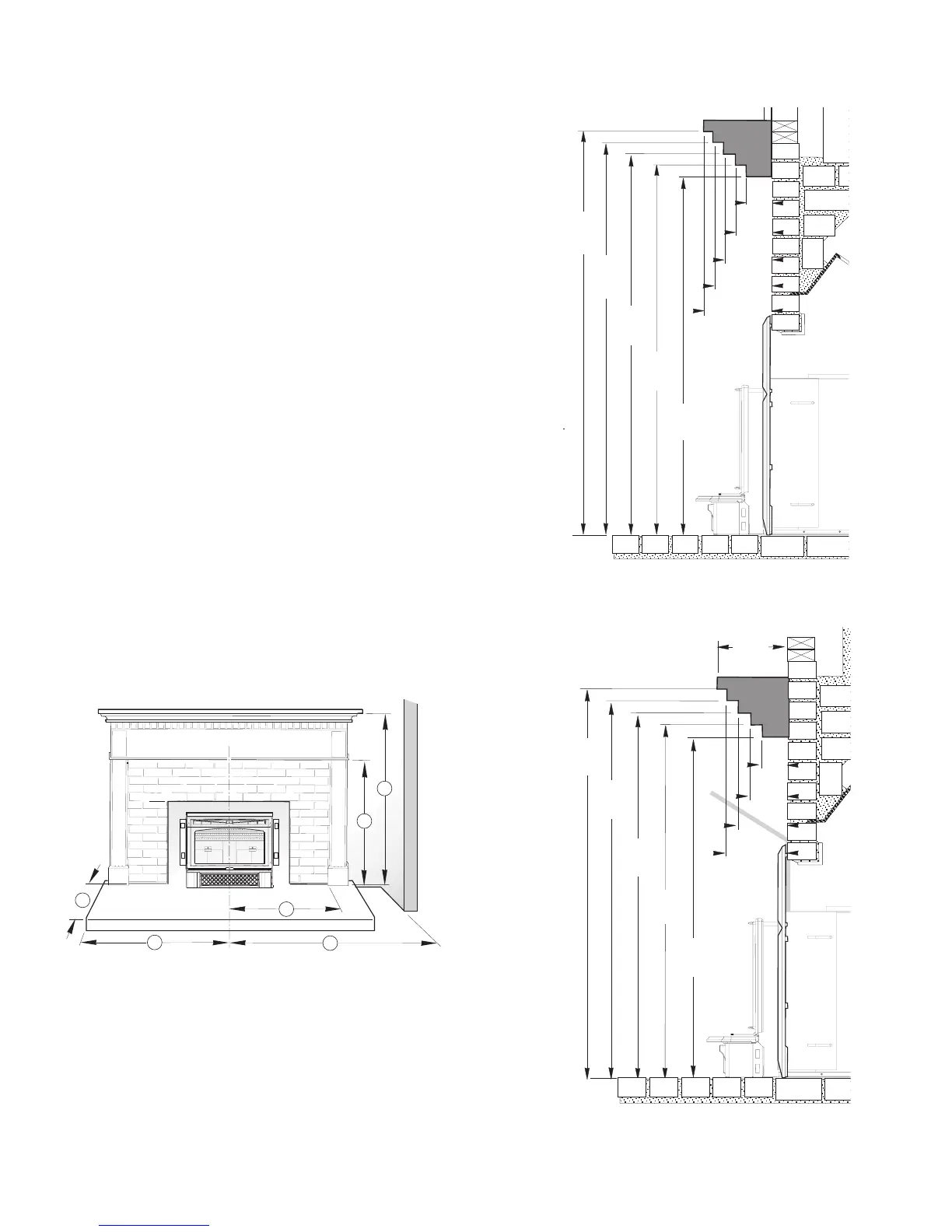

Figure 6. Clearance Diagram - No Heat Shielding
Figure 7. Mantel Clearances - measured from the
hearth surface to the lowest mantel surface.
Clearance to Combustible Materials
• There may be no combustible materials located
anywhere within 36” (914 mm) of the front of the
fireplace insert. This precaution includes items such
as drapes or doors that could swing into the area
within 36” of the insert.
• Clearance (open space) must be maintained be-
tween the fireplace insert and combustible materi-
als located above and to the side.
See figures 6 - 8 for minimum dimensions.
Mantel Clearance with
Optional Heat Shield 155346
Clearance may be reduced as shown in fig. 8. Maxi-
mum approved Mantel Depth is 12”.
Clearance is measured from the hearth to the bot-
tom of the mantel as illustrated.
Figure 8. Mantel Clearances, with Mantel Heat Shield
155346 - measured from the hearth to the mantel.
