12
138344_Rev_D - C450 Kennebec 8.2.10

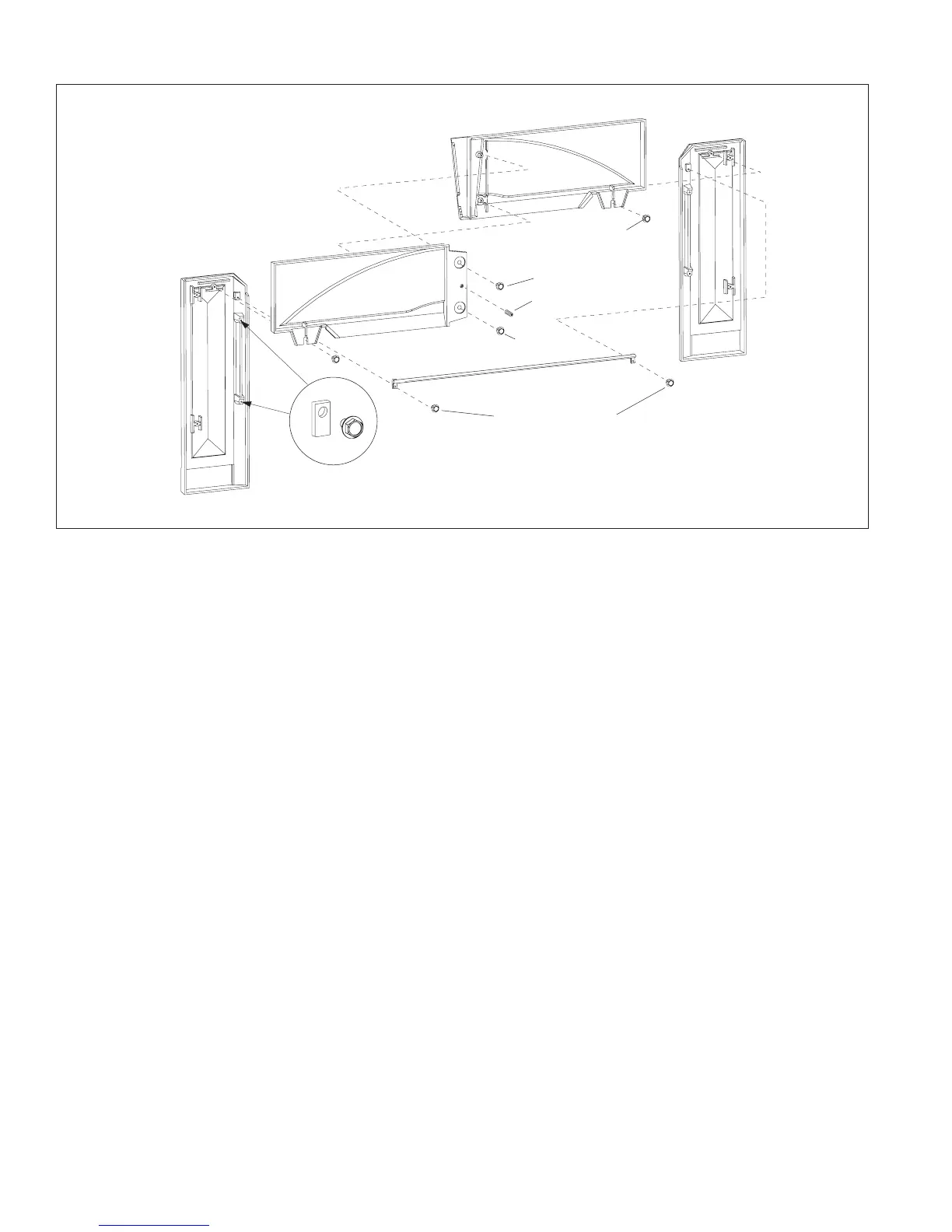

Figure 12. Kennebec Classic Surround Panel Assembly
Right Breast-
plate
Left Leg
Right Leg
H
Hang Tab
should point
straight down
Trim Rod
Left Breast-
plate
M6 x 10 Flange Bolts
M6 x 12 Flange Bolt
Kennebec Surround Assembly
All fasteners have already been installed in the appro-
priate locations at the factory. You will need to remove
them, attach the parts together as described below and
re-install the fasteners at those locations.
1. Layout the parts. Place the castings face down on a
protective surface such as carpeting, blankets or a
sheet of cardboard. See fig. 12, page 12.
2. Attach the Breastplates to each other.
Use a 10 mm socket or wrench with two M6 x 10 hex
head flange bolts.
3. Attach the Leg plates. The Legs must be oriented with
the Hang Tabs on the inside edges as shown in fig. 12.
Use the two remaining M6 x 12 hex head flange bolts
to attach the Legs to the Breastplate assembly. See Fig.
12.
4. Install the Trim Rod, using the two M6 x 10 bolts
located on the Right and Left Legs.
5. Optional: Install the Wide Surround. If you will be
installing the optional Wide Surround Panels, use the
instructions included with that kit.
6. Optional: Install Mantel Heat Shield 155833.
If you will be installing the optional Mantel Heat
Shield, use the instructions included with that kit.
7. Attach the Assembly to the Firebox. Lift the entire
assembly upright and position it in front of the insert
firebox. DO NOT LIFT THE ASSEMBLY BY THE TRIM ROD.
The four Hang Tabs on the surround legs must engage
with the adjacent holes in the two brackets on either
side of the firebox opening. The surround will easily
engage with these brackets if the firebox is slightly
proud of the fireplace opening.
Hang the surround assembly on the firebox and push
the entire unit into position so that the surround is
flush against the fireplace face.
Final leg panel alignment can be adjusted by slightly
loosening or tightening those attachment bolts as
necessary.
Set Screw
M6 x 10 Flange Bolt
Tools Required:
• 10 mm socket or wrench
M6 x 12 Flange Bolt
M6 x 10 Flange Bolt
