Jøtul F 520 User Manual

11
ENGLISH
4.0 Installation
NB:Checkthatthereplaceisundamagedbeforeinstallation
begins.
NB: The product is heavy! Ensure you have help when
positioning and installing it. Make sure the product does
not topple over.
NB: Do not place anything on the top plate of the stove as this
couldcausepermanentdamagetothepaint.
NB: Read the Installation and Operating instructions carefully
beforeinstallingthereplace!
4.1 Prior to installation - Jøtul F 520

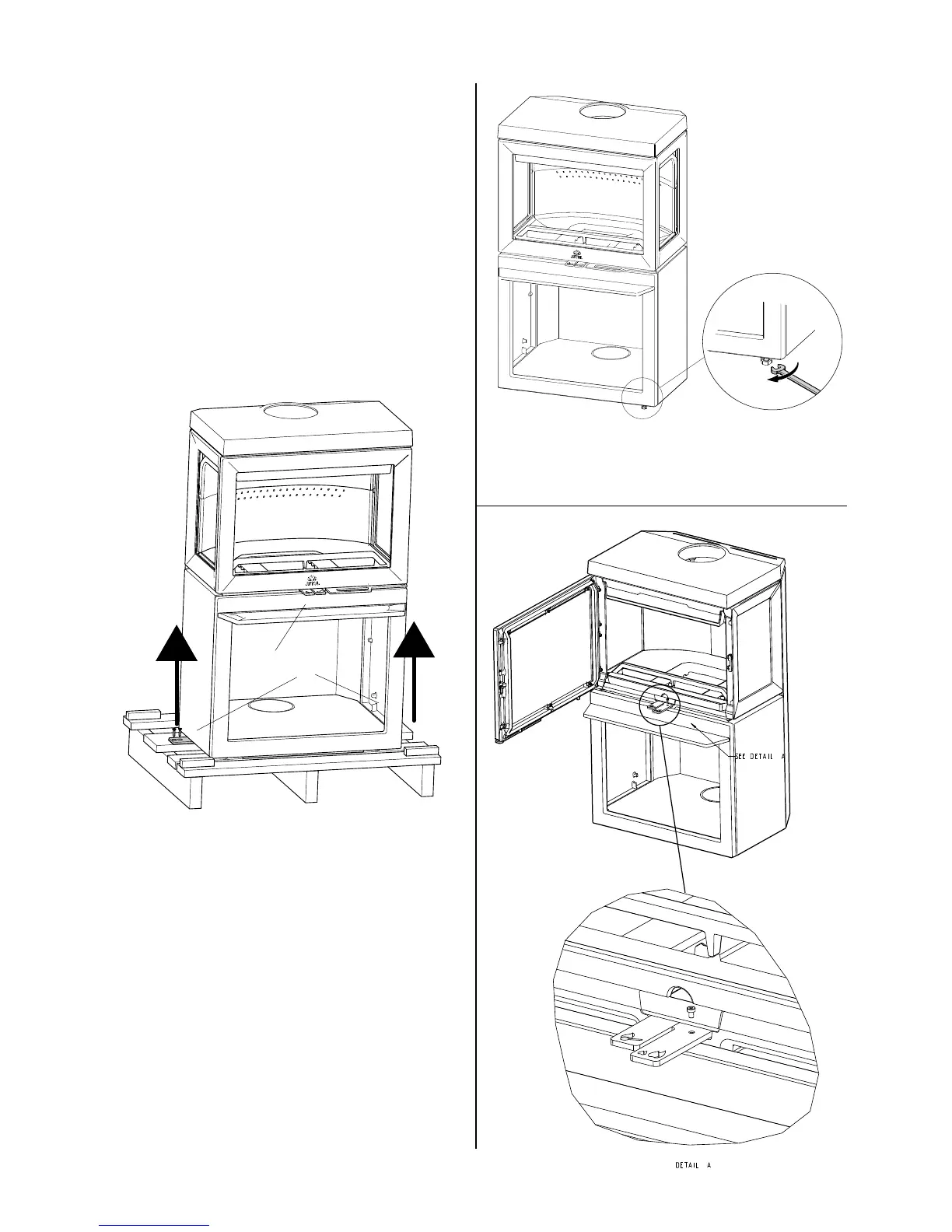

Fig. 3
B
A
1. Removethefourtransportscrews (A) that fasten the stove
to the wooden pallet.
2. Leave the stove standing on the transport pallet.
3. Check that the control lever (B)moveseasily.
Fig. 4
4. Liftthestovefromthepallet.
5. Set up the stove and adjust using a cap wrench to a
horizontalpositionwiththe4heightadjustmentscrews

Jøtul F 520 Specifications

General

Fuel Type	Wood
Max Log Length	20 inches
Flue Outlet	Top or Rear
Flue Size	6 inches
Model	F 520
Category	Indoor Fireplace
Type	Freestanding
Firebox Material	Cast Iron
EPA Certified	Yes
Efficiency	75%
Emissions	2.5 g/hr
