Jøtul F 520 User Manual

12
Approval label

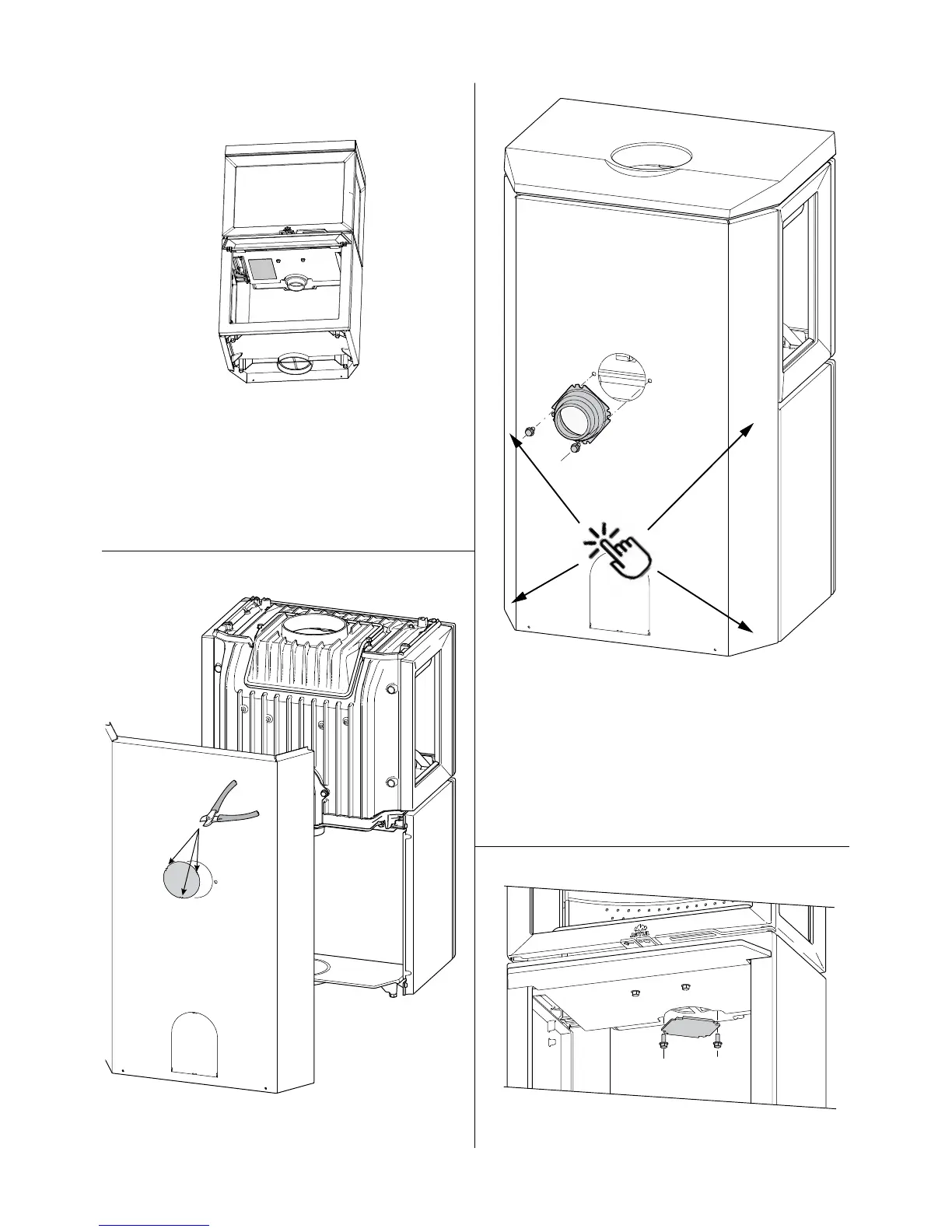

Fig. 5
4.2 Outside air connection through
the base
Through a rear outlet
JøtulF520isdeliveredwithairinletmountedunderneaththe
product.Ifneeded,theairinletmaybemountedintherearof
the product.
Fig. 6
Use a cutting pliar and cut along the knock-out holes.
Fig. 7
Click
Movetheairintakeconnectorfromunderneaththeoventothe
back of the oven
For fastening Ø 80 / Ø100 fresh air intake tube (optional
equipment–itemno.51047509/51012164),seethemanual
(itemno.10047508)accompanyingtheexternalairset.See
the installation instructions that follow with the external air set.
Attach the hose to the external air connector with a hose clip
to avoid using joints. The external air hose insulation ends
approx. 100 mmbelowtheburnchamber.
Fig. 8
Then install the cover for outdoor air inlet underneath of the
oven.
