3) Install the shifter shaft ASSY finished above to transmission. (See Figure 74)
Figure 74
B. Front Wheel Alignment
a) Put the vehicle on level ground.
b) The “toe-in” of the front wheels should be 1.18 inches. To check for alignment,
measure distance A and B between the centerline (CL) of the wheels. The proper
toe-in dimension A should be 1.18 inches greater than dimension B.
c) To adjust the alignments, loose the lock nuts on both sides of Front Tie Rods. To
make Dimension B smaller, turn the rod to the left. Turn the rod to the right to make
Dimension B larger. After adjusted to desired length, tighten the lock nut against the
rod end. Recheck the dimensions for proper alignment.
Step 2 finished

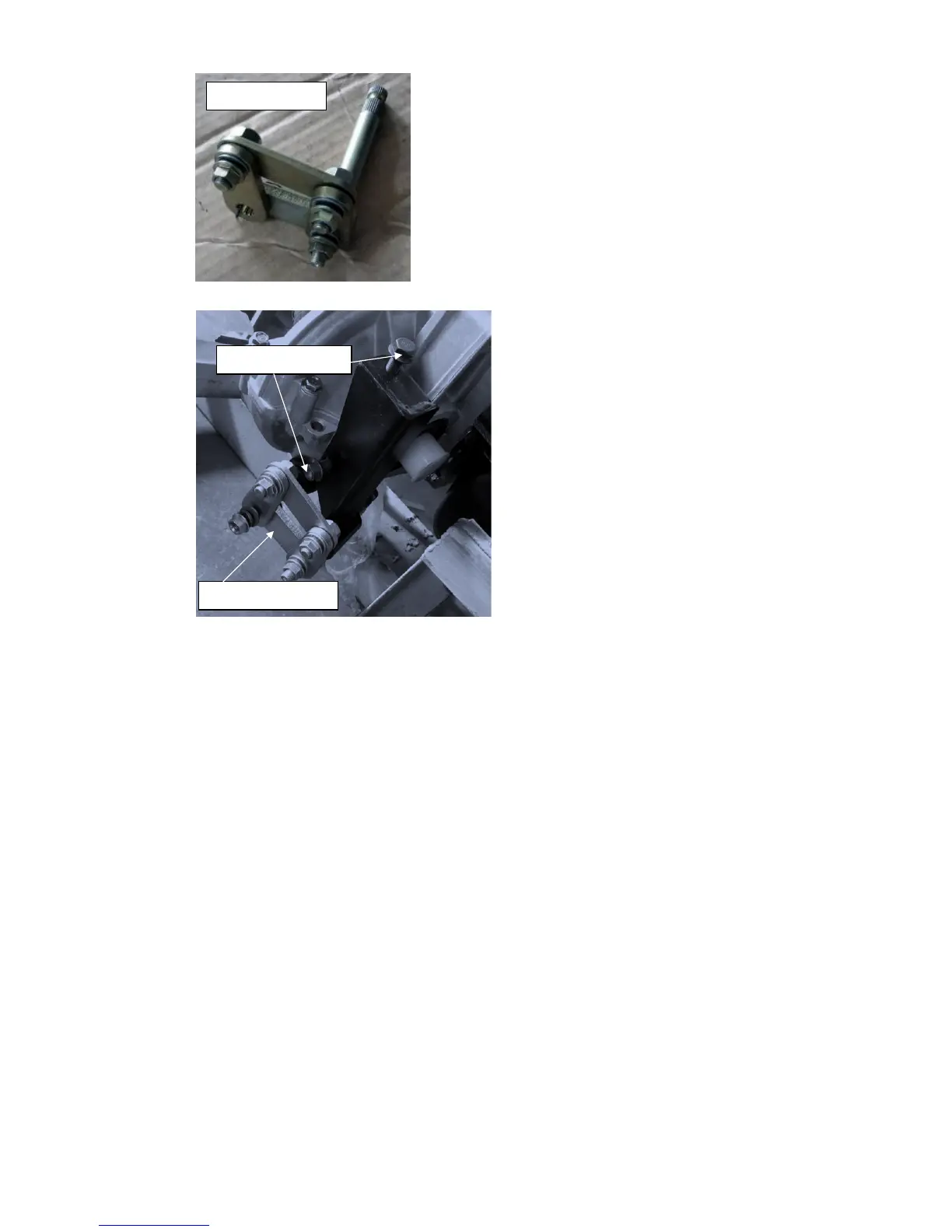

Shifter shaft ASSY
Bolt M10x1.5x20
To Next Page
