JPE E32D7212 - 1.4 TV Controls and Ports

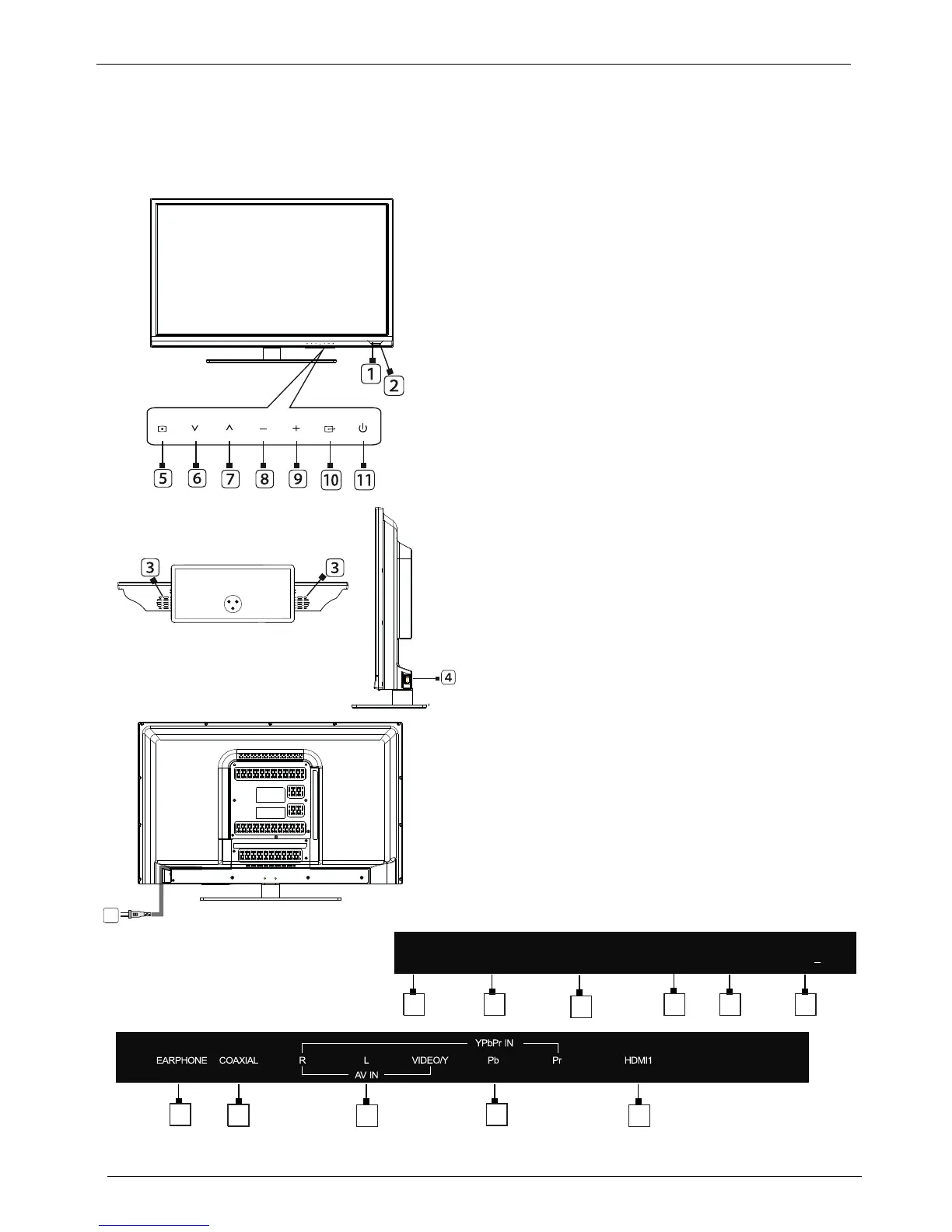

1.4 Keys and Interfaces
The design and specification takes actual
products as the standard
1. Remote sensor window
2. Power indicator
3. Speaker
4. Power switch
5. Menu key
6. Program “
 ” key
7. Program “

” key
8. Volume “
 ” key
9. Volume “

” key
10. Source key
11. Standby key
12. Power plug input
17 .HDMI1
18 .HDMI2
20.D-SUB(VGA) input
23.USB
19.HDMI3
21.PC AUDIO input
16.YPbPr input
22.RF in
13
14
15
16
17
18
19
20
21 22
14.COAXIAL
15.AV input
13.EARPHONE OUT
12

HDMI2 HDMI3
D-SUB(VGA)
PC AUDIO
RF IN USB
23
USB o
utpu
t:5V---500mA
