YDFLP-E-80&100-M7-M-R User Manual

File Number: JG-MCYF-SM-0039

1.6 Installation Dimensions

1. YDFLP-E-80&100-M7-M-R Laser Dimensions

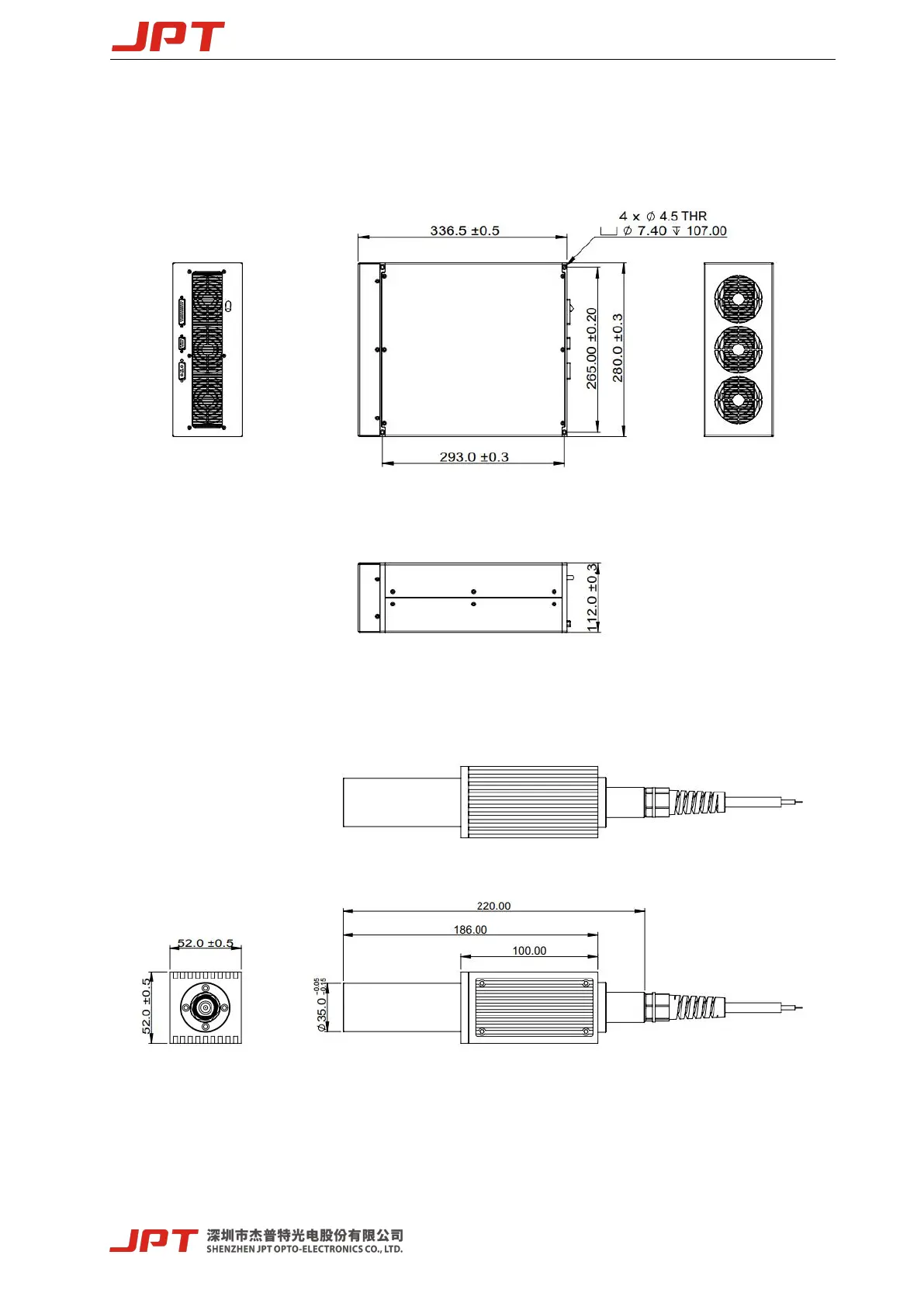

Figure 5 YDFLP-E-80&100-M7-M-R Laser Module Dimensions (Unit: mm)

2. YDFLP-E-80&100-M7-M-R Laser Dimensions

Figure 6 YDFLP-E-80&100-M7-M-R Standard Output Head Dimensions (Unit: mm)

 The isolator head is only for reference. Please be subject to the actual product.
