Table5 E-M7 Series Fiber Laser Cut-off Frequency Value
（
kHz
）
YDFLP-E-80&100-M7-M-R
Pulse Width
(ns)
Cut-off frequency（kHz)
Max pulse
frequency
（
kHz
）
YDFLP-E-80-M7-M-R
YDFLP-E-100-M7-M-R
1 (CW)
-
-
-
2
2600
2960
4000
4
1800
2160
4000
6
1300
1400
4000
9
800
960
4000
13
550
680
3000
20
330
420
3000
30
250
300
3000
45
200
250
2000
60
180
200
2000
80
150
180
2000
100
140
160
1000
150
76
95
1000
200
60
75
1000
250
56
70
900
350
53
67
600
500
53
67
500
* The laser will have expected output power when working above the cut-off frequency. When
working below the cut-off frequency, the power will drop accordingly to maintain the output
peak power. Below chart shows the relationship between frequency and output power:
Frequency
Power
Set Power
Cut-off Frequency

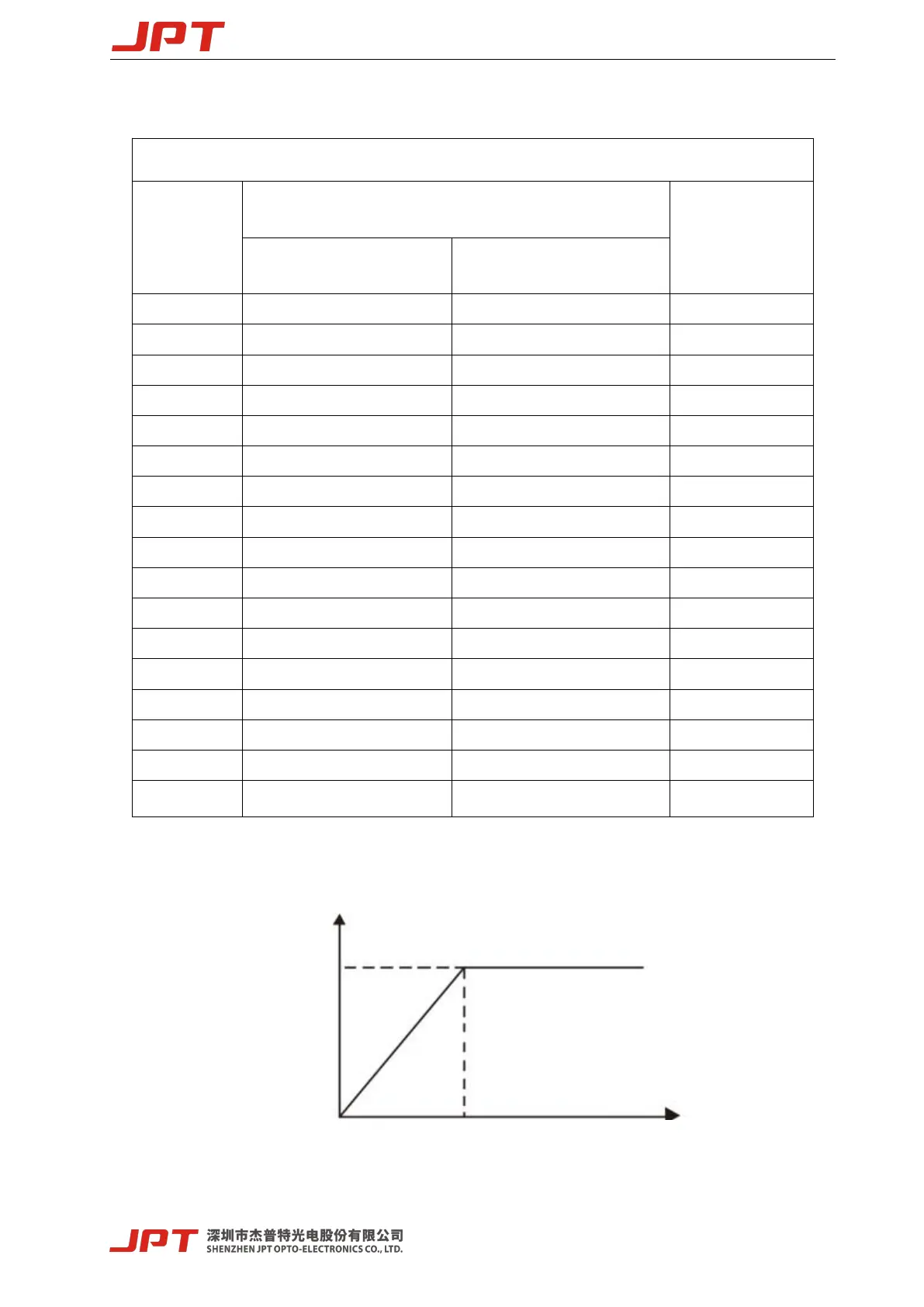

Figure 3 Cut-off Frequency & Output Power Relationship Charts
