Sailplane Section 26
PROG MIX - Programmable Mixers (continued)
Direction - (Std. Prog Mixer)
Each standard programmable mixer has two positions -
Pos0 and Pos1 and each position has 2 percentages
(upper and lower) to accommodate mixing when the
Master is moved in both directions.

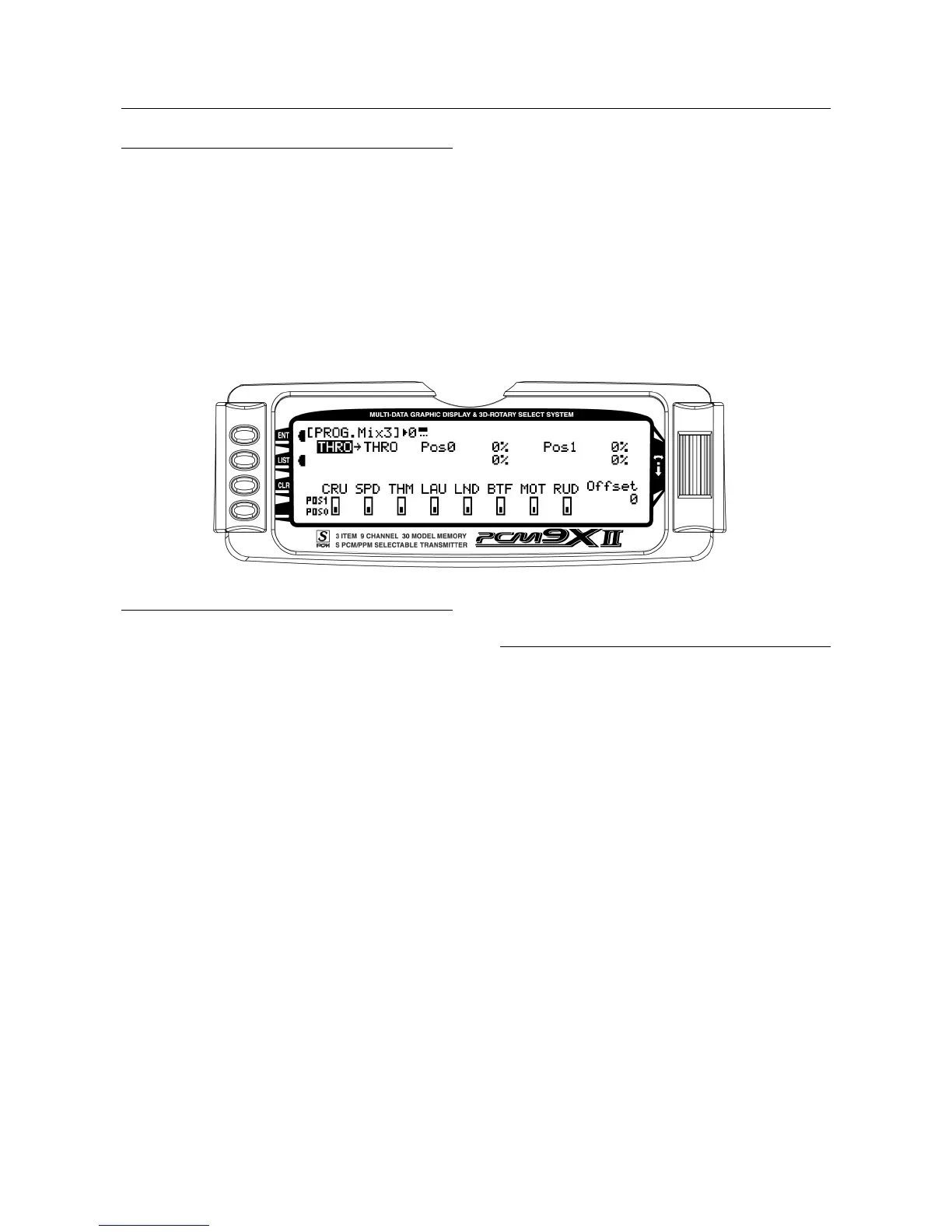

The direction indicator consists of a dotted and solid
line next to the switch position on the top line of the
display. The solid line indicates whether the upper or
lower percentage is in effect for either Pos0 or Pos1,
depending on which Position is currently selected.
As the Master channel is moved above and below the
Offset (where the mix turns on or changes direction),
the solid bar moves between the top and bottom line. If
for example, the switch is set so that Pos0 percentages
are in effect and the master channel is moved below
the Offset, the solid bar will be on the lower line which
means the lower percentage associated with Pos0 is in
effect. When the master is moved above the Offset, the
solid bar moves to the top line indicating that the upper
percentage for Pos0 is in effect.
The Direction Indicator works the same way when the
Pos1 values are selected, indicating the upper or lower
value of Pos1 as the Master is moved in both directions
from the Offset.
Pos0 Settings - (Std. Prog Mixer)
Each standard Programmable mixer can have two sets
of mixing values - Pos0 and Pos1. Each set can have 2
percentages which control movement of the slave when
the master is moved in both directions. A switch can be
selected to switch between the Pos0 and Pos1
percentages.
The Pos0 settings determine how far, and in which
direction, the slave channel moves when the master is
moved above and below the Offset (the Master moving
in both directions) when the switch is in a position to
select the Pos0 values.
To enter Pos0 values, highlight and select Pos0, move
the Master channel control (stick, lever or switch) in one
direction and set the percentage and then move the
Master channel control in the other direction and set its
value.
Pos1 Settings - (Std. Prog Mixer)
The Pos1 settings are identical to the Pos0 settings
and determine how far, and in which direction, the slave
channel moves when the master is moved above and
below the offset (the Master moving in both directions)
when the switch is in a position to select the Pos1
values.
To enter Pos1 values, highlight and select Pos1, move
the Master channel control (stick, lever or switch) in one
direction and set the percentage and then move the
Master channel control in the other direction and set its
value.
