REMOTE DISPLAY NWW-58

In case of panel and LCD dimmer are dark.

1. Internal dimmer



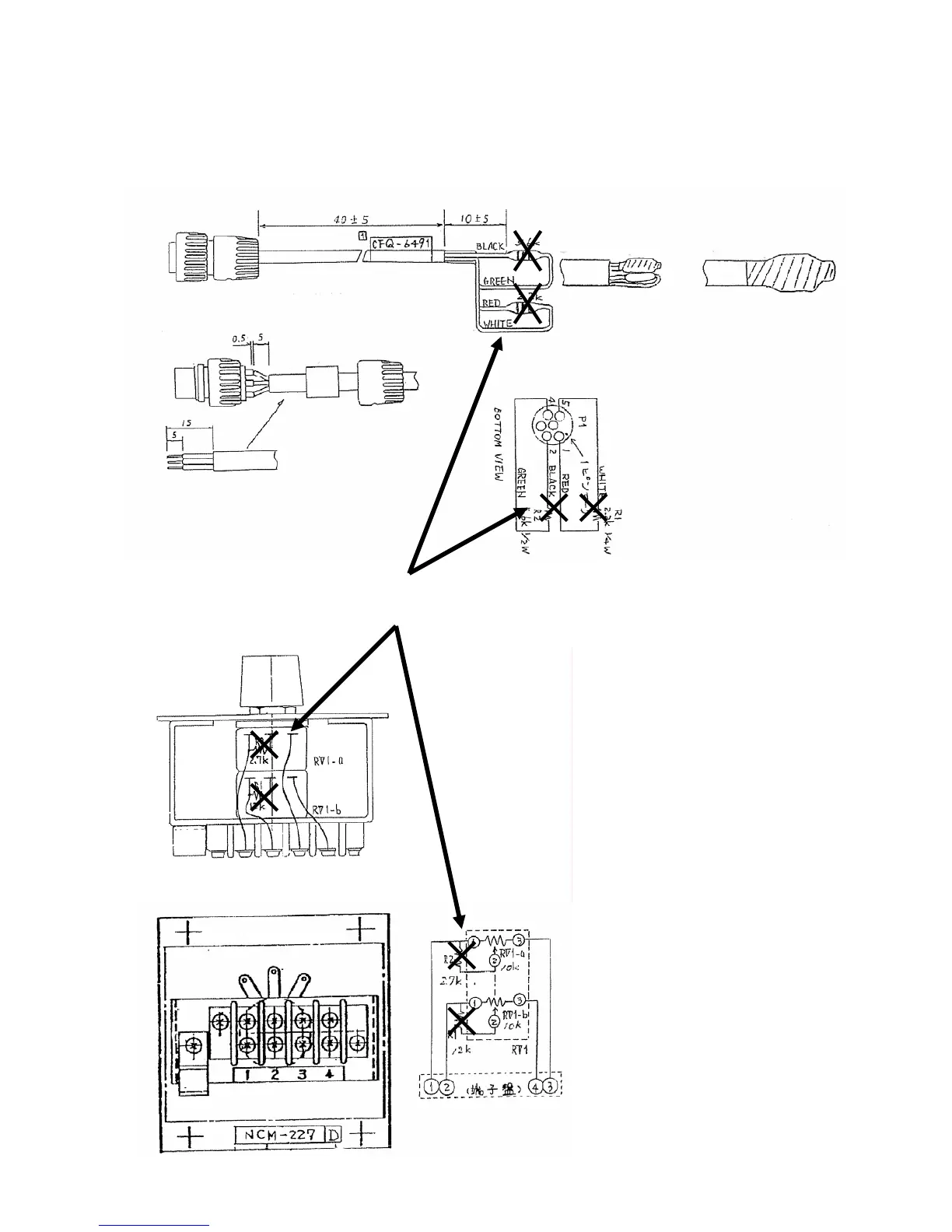

Cut and short the resistor.

2. External dimmr


